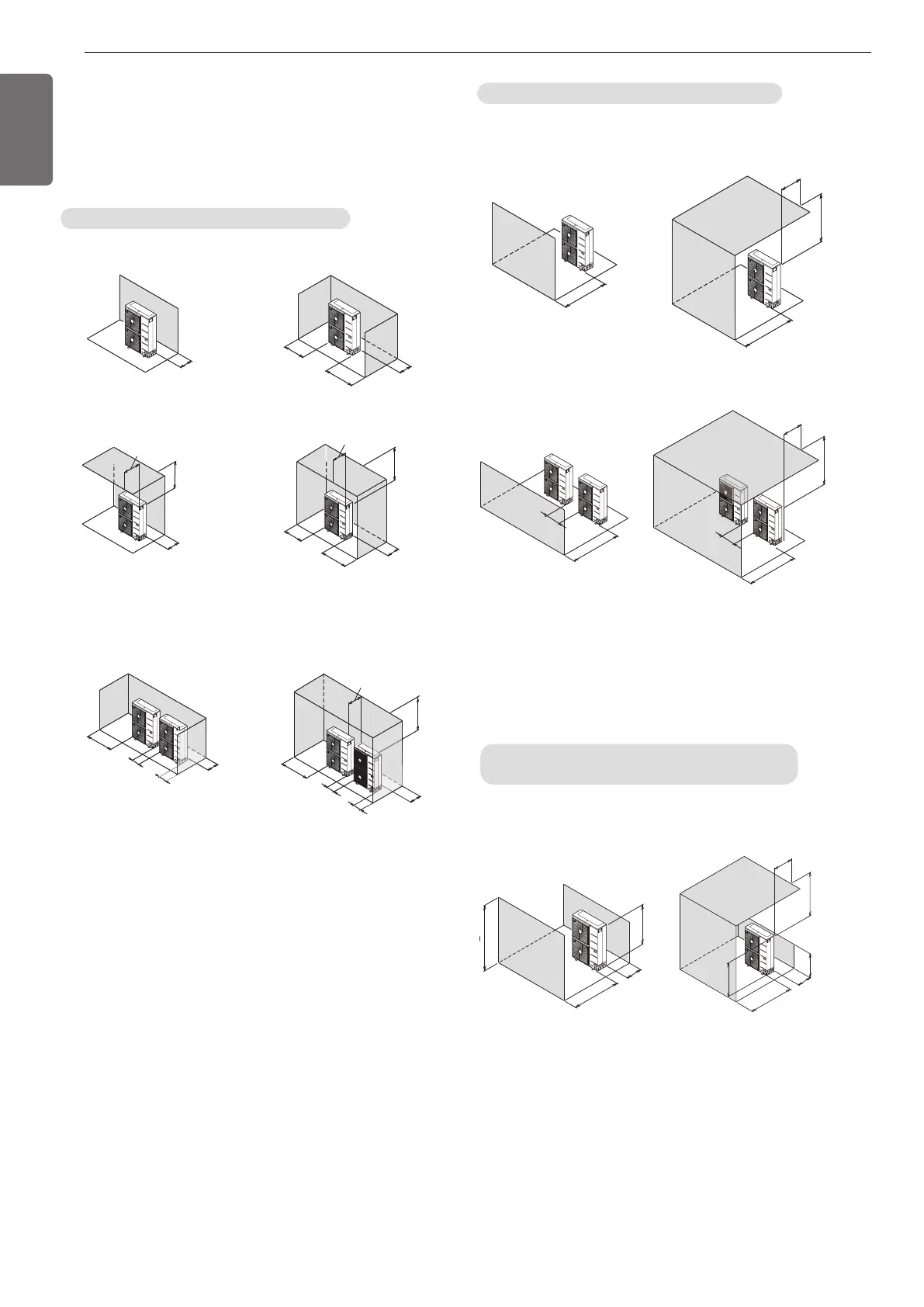

• The following values are the least space for installation. If any service
area is needed for service according to field circumstance, obtain
enough service space.
• The unit of values is mm.
In case of obstacles on the suction side
1. Stand alone installation
100(3-15/16)
or more
1000 (39-1/4)
or more
100(3-15/16)
or more
500(19-5/8)
or less
100(3-15/16)
or more
100(3-15/16)
or more
100(3-15/16)
or more
500(19-5/8)
or less
1000 (39-1/4)
or more
150(5-29/32)
or more
100(3-15/16)
or more
150(5-29/32)
or more
2. Collective installation
100(3-15/16)
or more
100(3-15/16)
or more
1000 (39-1/4)
or more
300(11-13/16)
or more
500(19-5/8)
or less
1000 (39-1/4)
or more
100(3-15/16)
or more
100(3-15/16)
or more
1000 (39-1/4)
or more
300(11-13/16)
or more
INSTALLATION SPACE
Unit:mm(inch)
Unit:mm(inch)
In case of obstacles on the discharge side
1. Stand alone installation
500(19-5/8) or more
500(19-5/8)
or less
1000 (39-1/4)
or more
500(19-5/8) or more
1000 (39-1/4)
or more
100(3-15/16)
or more
500(19-5/8) or less
1000 (39-1/4)
or more
1000 (39-1/4)
or more
100(3-15/16)
or more
H
L
100(3-15/16)
or more
500(19-5/8)
or more
1000 (39-1/4)
or more
500(19-5/8) or less
L
H
250 (9-7/8)
or more
1000 (39-1/4)
or more
2. Collective installation
In case of obstacles on the suction and the
discharge side
Obstacle height of discharge side is higher than the unit
1. Stand alone installation
Unit:mm(inch)
Unit:mm(inch)
L > H L > H
