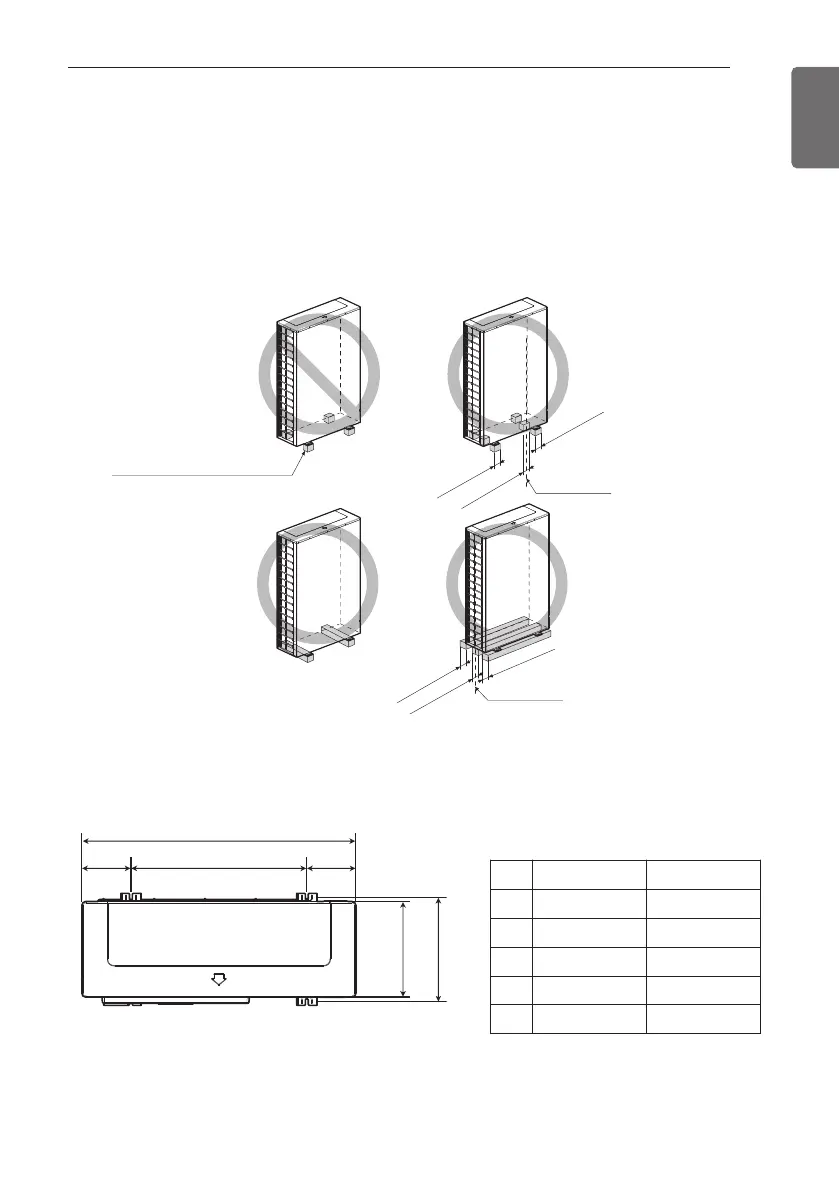

The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least 100 mm under the Unit’s
legs before being fixed.
• The outdoor unit supports should have minimum height of 200 mm.
• Anchor bolts must be inserted at least 75 mm.
At least 100 mm
At least 100
mm
At least 100 mm
At least 100 mm
At least 100mm
At least 100 mm
Center of the Unit
For outdoor units should not
be supported only by the
corner supports.
Center of the Unit
a
be
e
cd
U3, U4 U7
a 920 1 090
b 618 700
c 330 380
d 360 401
e 151 195
INSTALLATION
[Unit : mm]
