INSTALLATION
23
ENGLISH

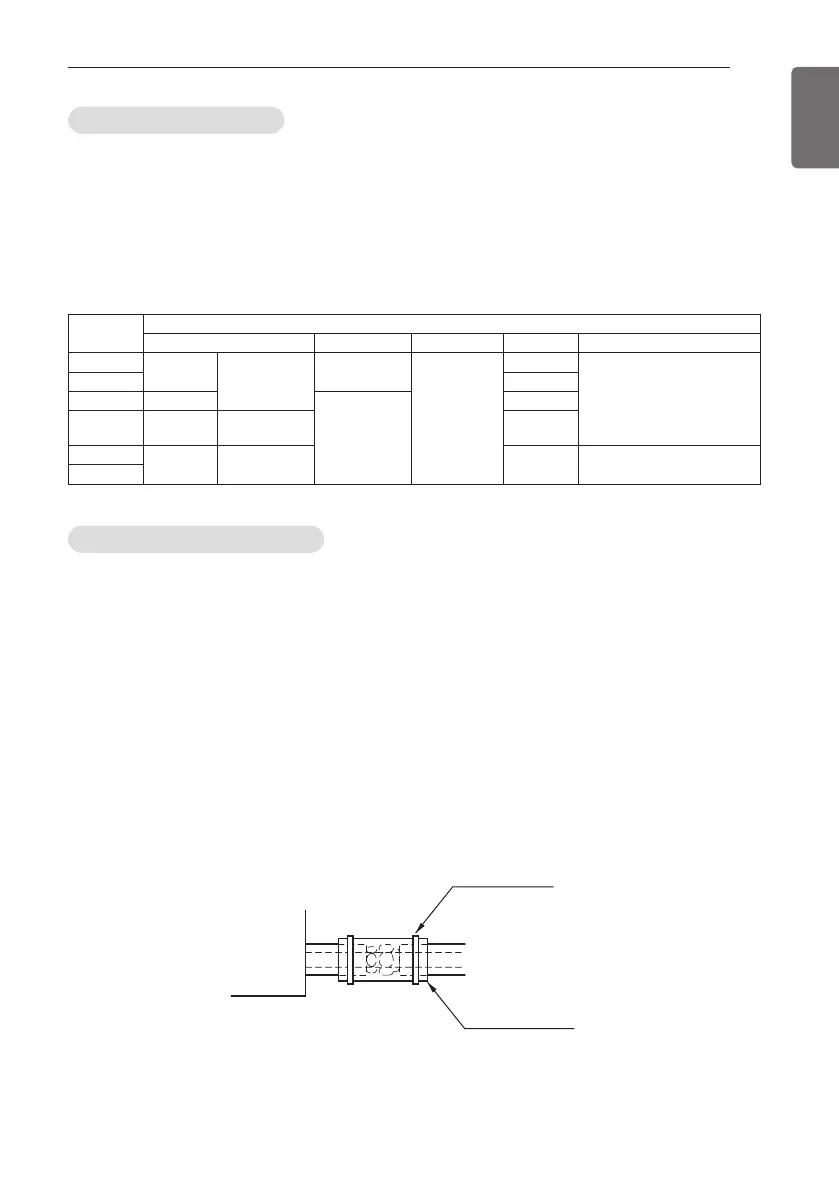

Insulation of shutoff valve
1 Use the heat insulation material for the refrigerant piping which has an excellent
heat-resistance (over 120 °C).
2 Precautions in high humidity circumstance:
This air conditioner has been tested according to the "ISO Conditions with Mist" and
confirmed that there is not any default. However, if it is operated for a long time in high
humid atmosphere (dew point temperature: more than 23 °C), water drops are liable to fall.
In this case, add heat insulation material according to the following procedure:
- Heat insulation material to be prepared... EPDM (Ethylene Propylene Diene Methylene)-over
120 °C the heat-resistance temperature.
- Add the insulation over 10mm thickness at high humidity environment.
Indoor unit
Thermal insulator
(accessory)
Fastening band
(accessory)
Refrigerant piping
Closing shutoff valve
1 Remove the cap and turn the valve clockwise with the hexagon wrench.
2 Securely tighten the valve until the shaft contacts the main body seal.
3 Make sure to tighten the cap securely.
- For the tightening torque, refer to the table on the below.
Tightening torque
Shutoff
valve size
Tightening torque N
.
m(Turn clockwise to close)
Shaft(valve body) Cap(Valve lid) Service port Flare nut
Gas line piping attached to unit
Ø 6.35
6±0.6
Hexagonal
wrench 4 mm
29.4±2.9
12.7±2
16±2
-
Ø 9.52 38±4
Ø 12.7 9±0.9
53.9±5.8
55±6
Ø 15.88 15±1.5
Hexagonal
wrench 6 mm
75±7
Ø 22.2
30±3
Hexagonal
wrench 10 mm
- 25±3
Ø 25.4
