Getting Started 7
Getting Started
1
A
Display window
B
LED indicator: Shows connection status.
(Page 23)
y
White (blinking): waiting for network
connection
y
White (staying on): network connection is
completed.
y
White (Dimmed): standby mode with
network connection.
y
Green (staying on): the rst group was set.
y
Red (staying on): standby mode without
network connection
C
Remote sensor
D 1/!
(Standby/On)
E
F (Function): Selects the function and input
source. (OPTICAL / HDMI IN / WI-FI / Bluetooth /
PORTABLE)
F
-
/
+ (Volume)
G
(Wi-Fi): Connects initial MUSICflow
product to your network wirelessly.
H
(Add): Adds additional MUSICflow
products to your network. (In case one or more
MUSICflow products are connected)

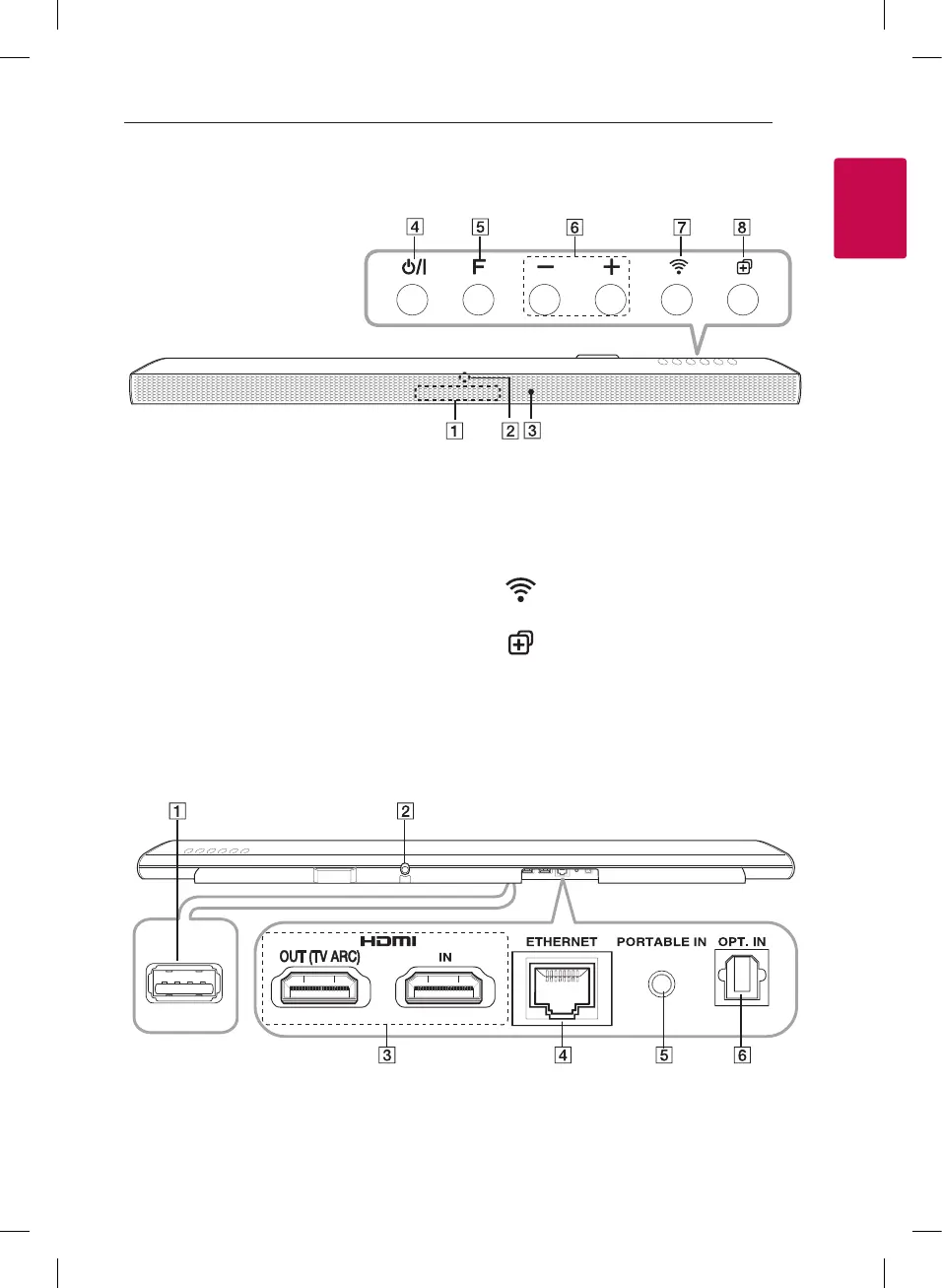

Front panel
A
S/W download connector (For service only)
B
DC IN (AC adapter input)
C
HDMI IN / OUT (TV ARC) connector : Connect
to HDMI IN (ARC) on TV.
D
ETHERNET (LAN) port
E
PORTABLE IN connector
F
OPT. IN connectors
Rear panel
To Next Page
Loading...
