ONE POINT REPAIR GUIDE
11. IF NOT BOOTING WHEN YOU TURN ON THE SET.
11-1. X501 (Crystal)
11-1-1. Solution
Replace X501 on MAIN board.
11-1-2. How to troubleshoot (Countermeasure)
1) Check the frequency of 27 MHz crystal (X501).
2) If 3.3 V is abnormal, follow the stage 6-1 at the previous page.
3) If the crystal doesn’t oscillate, replace X501.
11-1-3. Service hint (Any picture / Remark)

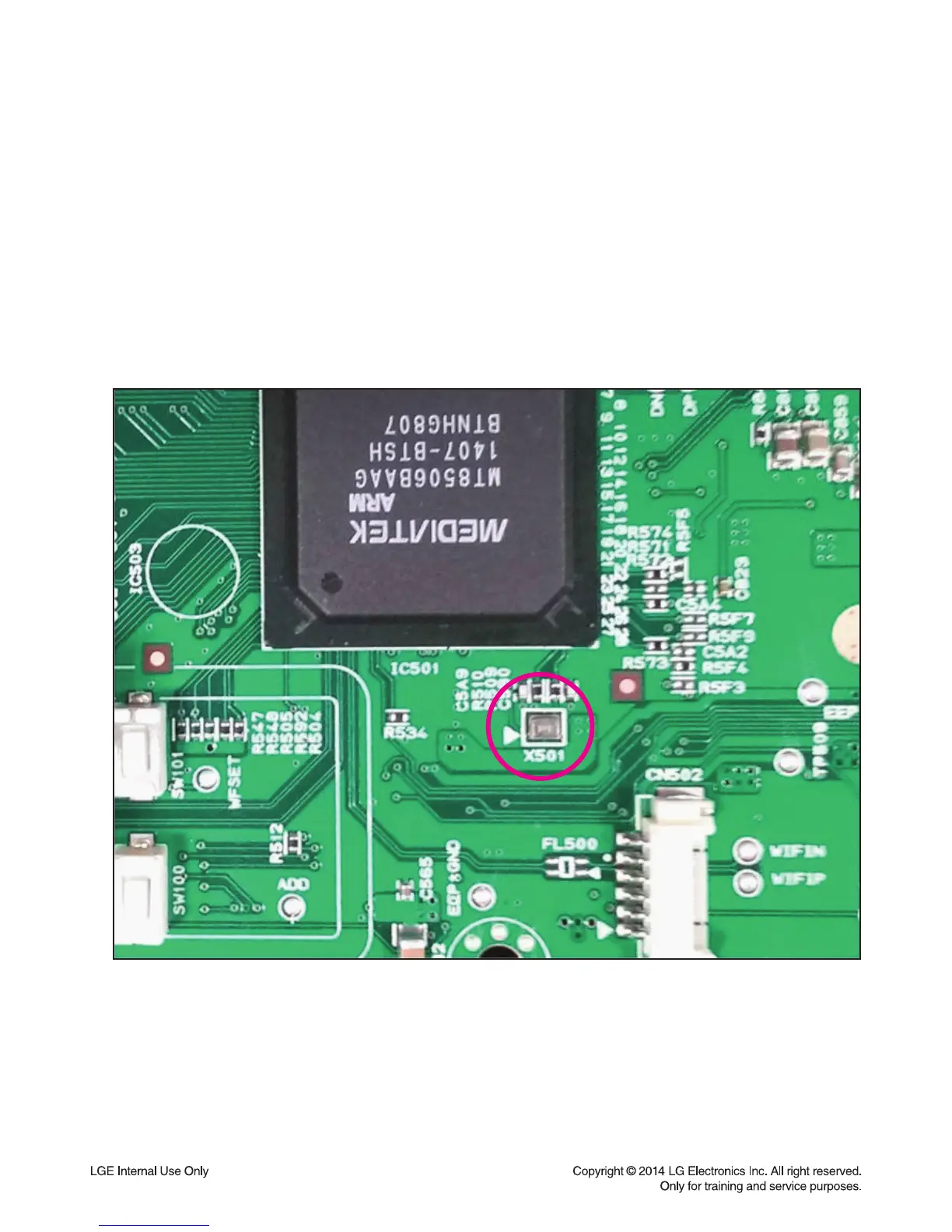

< Main board bottom view >
To Next Page
