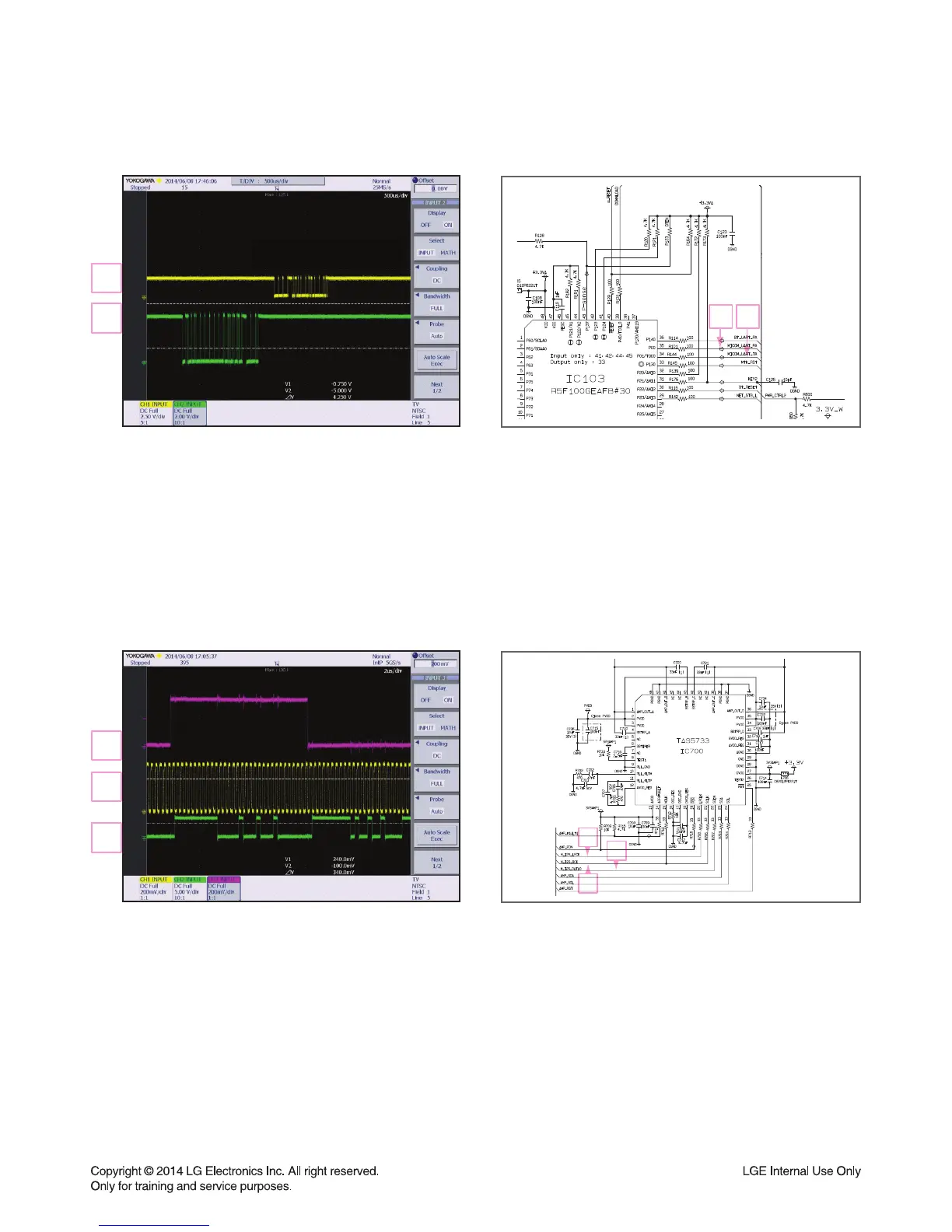

WAVEFORMS OF MAJOR CHECK POINT
1. MICOM
2. AMP
MICOM to MPEG IC103 PIN 34, 35
MICOM to AMP I2S IC700 PIN 20, 21, 23
tpjvt|hy{{
tpjvt|hy{y
ijsr
syjsr
kh{h
1
2
4
3
5
1 2
5
3
4
