ONE POINT REPAIR GUIDE
12. WIRED NETWORK CONNECTION ERROR
When you connect AP through the wired LAN, connection failed.
12-1. JK500
11-1-1. Solution
Replace JK500 on MAIN board.
12-1-2. How to troubleshoot (Countermeasure)
1) If there is soldering problem, please re-soldering pin JK500.
2) If after re-soldering, problem still occurs, replace JK500.
3) If problem still occurs after change JK500, check MT8506 IC (IC501).
Refer to the stage 8-1 at the previous page.
12-1-3. Service hint (Any picture / Remark)

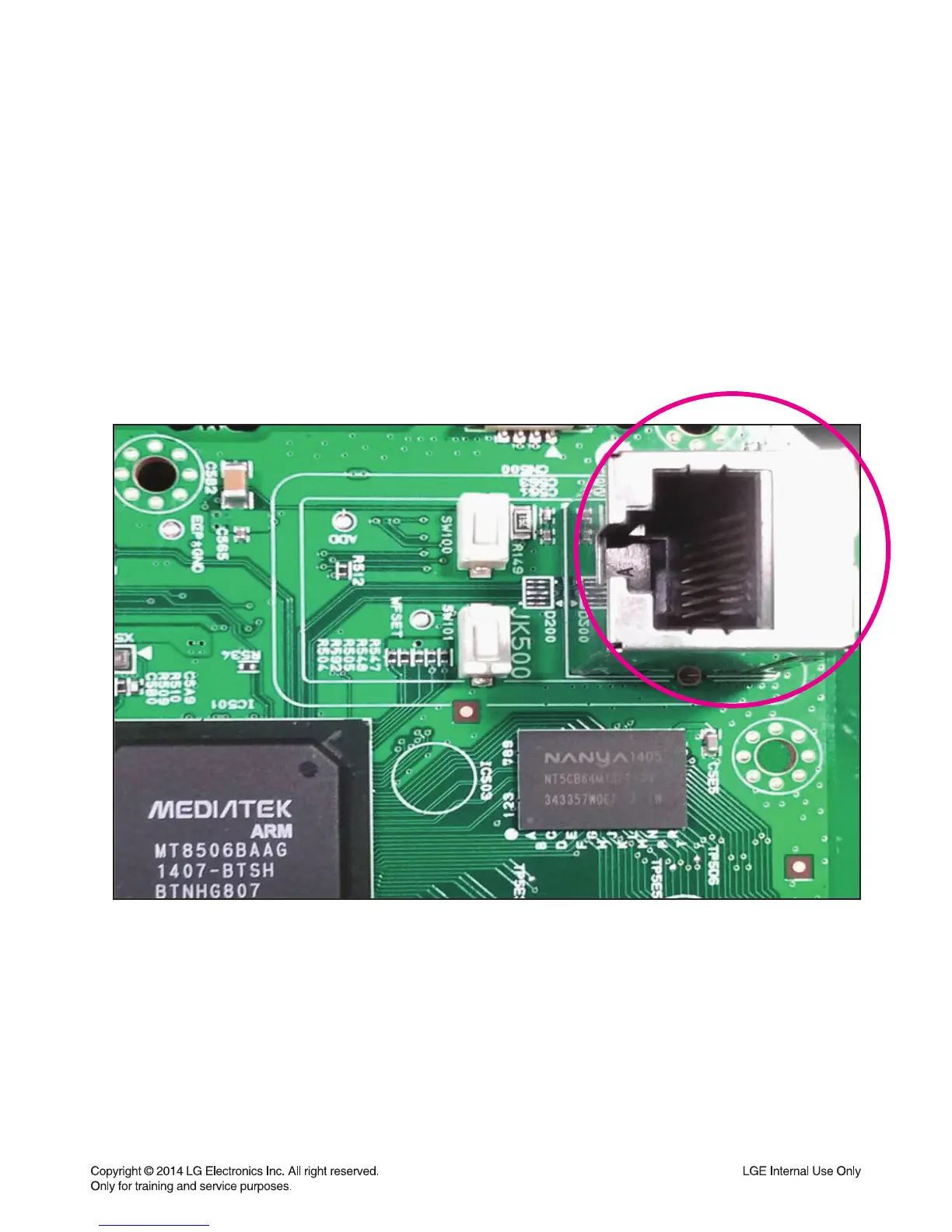

< Main board bottom view >
