LG PB60G Service Manual

- 7 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.4.3. Verication of DMD light source
(1) Finish after verifying if the light source in the right side of
DMD screen in Gray Pattern – Full Gray 10 Pattern inside
DMD Check Pattern can be seen with naked eyes. (Refer
to Fig. 4-4-4)
( DMD Light Source Spec: It is not seen with naked eyes in
Full Gray 10 Pattern.)
5. Caution for DMD(Digital Micro-mirror Device)
5.1. Caution for DMD ESD
(1) Connector the grounding to prevent a damage of ESD
(Electrostatic Discharge) when handing the DMD.
(2) Wear a wrist strap to connect the ESD grounding in esh
necessarily.
(3) Connect the ESD ground to workstation and an electric
conductor.
(4) Save the DMD after getting rid of a static electricity. Keep
it at an exclusive case when moving it When grounding,
open the case.
(5) Put on gloves for preventing static electricity.
(6) All work is done at static free location. Attach the tape or
remove a dust on the DMD front or DMD back pin
5.2. Caution for DMD Clean
(1) Follow the procedure and caution to prevent the screen
from being scratched.
(2) When DMD glass stains with dust, polish the front and
back DMD glass with soft cloth. Then, do it again after
rotating 180 degree the DMD. If necessary, keep under
observation.
(3) Don't clean the DMD with the high pressure. The static
electricity and pressure will damage the DMD.
* Attachment )TI Reference :
DMD Handling Specication, DMD Cleaning
6. Country Adjustment and Verication
6.1. Country Adjustment Method
(1) Enter to the adjustment mode by selecting “IN-START”.
(2) Press the right arrow key in “Adjust check” to locate a
cursor on “Country Group Code”.
(3) In case of PB60G-JE, change “Country Group Code”
to “17” and press the down arrow key once to change
"Country" and then press OK. (PB60G_ EBT62193502,
EBT62193505, EBT62193506, EBT62193507,
EBT62193508)
(4) Press Exit to complete the adjustment.
( In case of EBT62193501, change "Country Group Code"
only, then press OK.)
( In case of EBT62193502, EBT62193503, EBT62193505,
EBT62193506, EBT62193507, EBT62193508,
EBT62193509, EBT62193510, Change both "Country Group
Code" and "Country," then press OK.

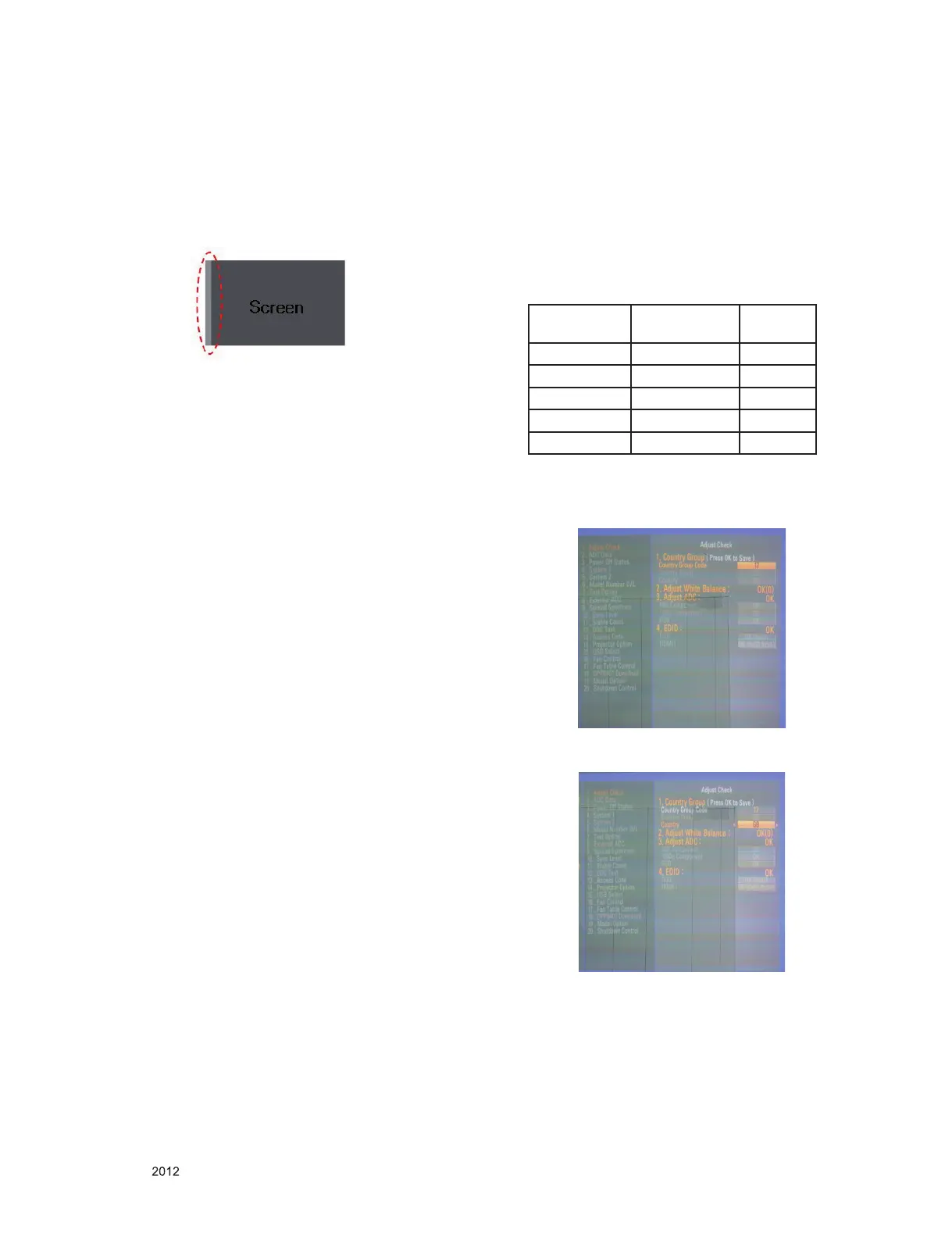

(Fig. 4-4-4) Verication of DMD light source
Main chassis
assy P/N
Sufx Country
EBT62193502 AEU,AEK EU
EBT62193506 AKR KR
EBT62193507 AUS,ACC,AWM US
EBT62193508 ACN CN
EBT62193505 Others GB

LG PB60G Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	15000:1
Digital gamma correction	Yes
Screen size compatibility	25 - 100 \
Projector native resolution	WXGA (1280x800)
Lamps quantity	1 lamp(s)
Light source type	LED
Service life of light source	30000 h
Focus	Manual
Offset	100 %
Throw ratio	1.5:1
Focal length range	- mm
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 720p
Analog signal format system	-
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 854 x 480 (WVGA)
RMS rated power	2 W
Number of built-in speakers	2
Audio (L/R) in	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Noise level	31 dB
Certification	KC/KCC, FCC/UL
Noise level (economic mode)	26 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, ITA, KOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Tripod
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	60 W
Power consumption (standby)	0.5 W
Cables included	AC, Component
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	103 mm
Width	158 mm
Height	33 mm
Weight	470 g
