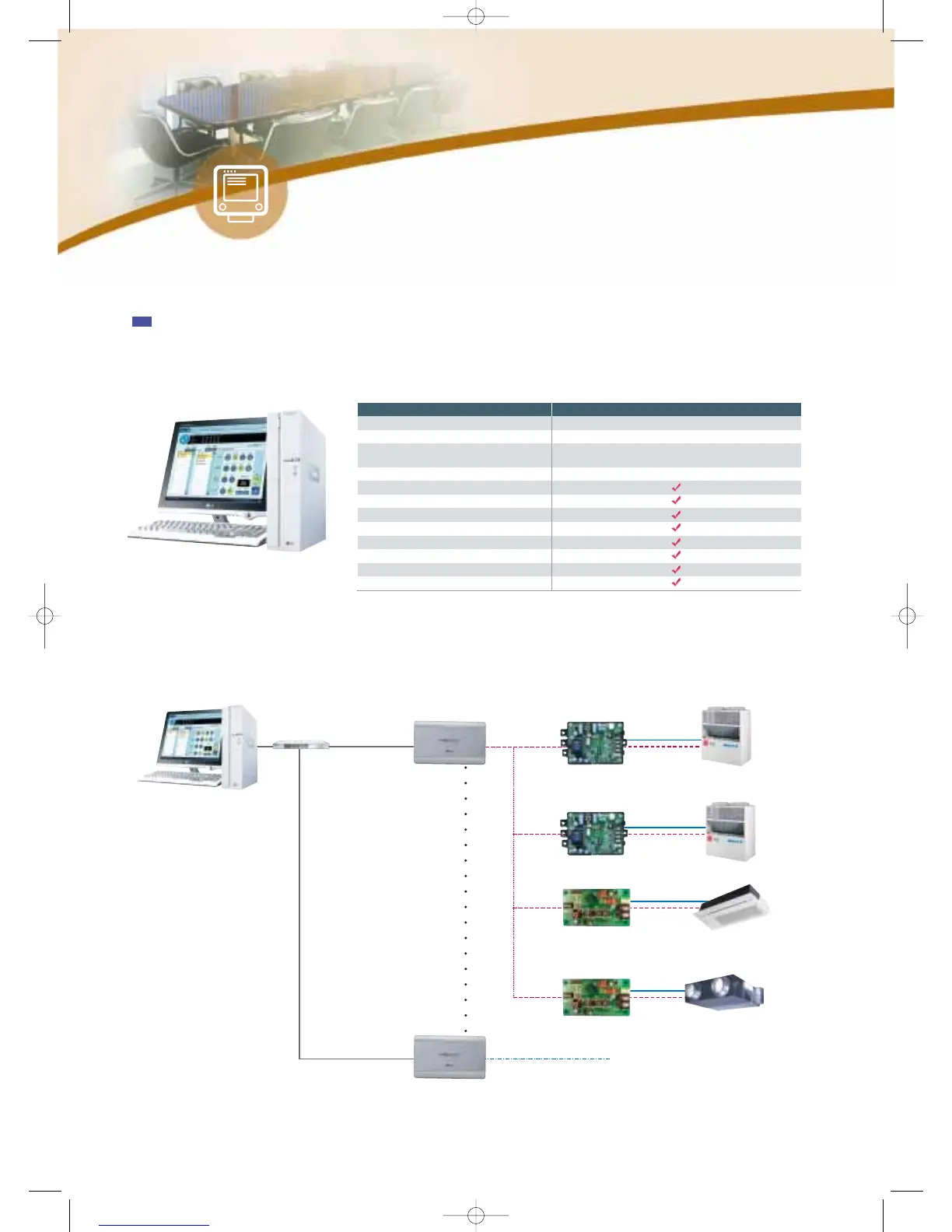

94_ Air conditioning system
PC Based central controller
PC Based centroller
•
A central controller for managing huge sites
-
PC Based central controller can control Max. 2048 Indoor units
• Additional accessory
Interface unit (CNU) : PQNFG14B0 (16 CNU / 1 PCC)
Interface unit (PI485) : PMNFP14A0 (For 1 outdoor with Max. 16 Indoors, 8 PI485 / 1 CNU)
PMNFP14A1 (For 1 outdoor with Max. 48 Indoors, 8 PI485 / 1 CNU)
PC Based central controller
PQCSS513A0
PC Based central controller
PQCSS513A0
CNU (I-Gateway)
PQNFG14B0
Ethernet
(Cross UTP cable)
HUB
RS485
0.75mm
2
X2C
(shield)
AC20V
PMNFP14A0 (Max. 16 Indoors)
PMNFP14A1 (Max. 48 Indoors)
PMNFP14A0
PHNFP14A0 (Ceiling & Floor, Duct)
PSNFP14A0 (CST, RAC)
Ventilation
Single constant
Single A, MULTI
MULTI V PLUS, SYNC, SPACE
R410A
CNU16
PHNFP14A0
Classification
Configuration
Program installation
Program installation maximum
number of system to control
CNU
Internet remote control
System configuration
Control/monitoring
User lock function
Schedule management
Peak Control
PDI monitoring
Ventilation control&monitoring
PQCSS513A0
User S.W engine
Install with CD
PQNFG14B0
2,048
•
Wiring
DC Comm, Line
