Air conditioning system _95
PDI (Power Distribution Indicator)
Network solution
PDI (Power Distribution Indicator)
•
This device is an indicator for power consumption of the multi type
Air-conditioner used for common power line.
• Additional accessory
Interface unit (PI485): PMNFP14A0 (for 1 outdoor with Max. 16 Indoors)
PMNFP14A1 (for 1 outdoor with Max. 48 Indoors)
PQNUD1S00
•

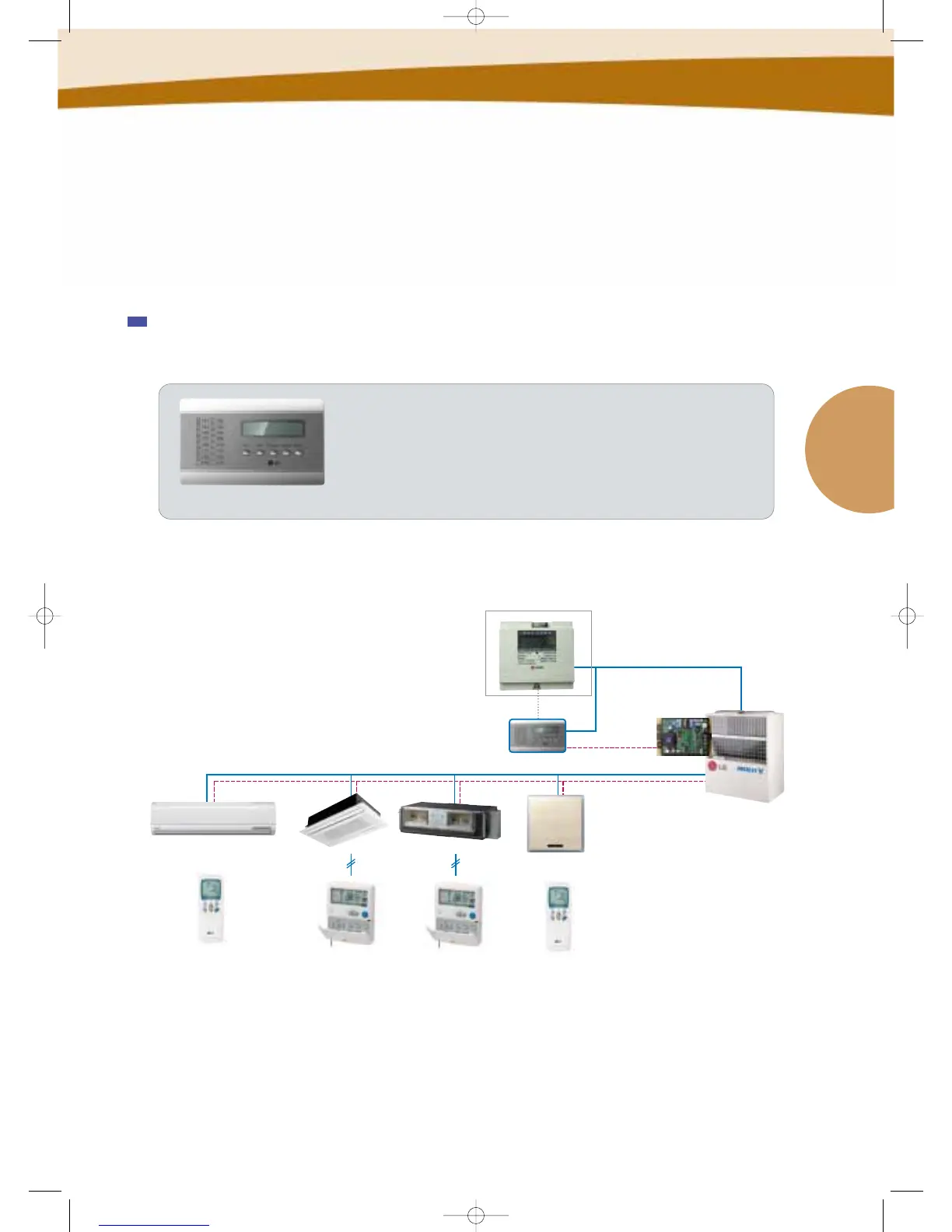

Wiring
MULTI V PLUS system
+
MULTI
PMNFP14A0
PQNUD1S00
Pulse output
(1,2, 4,6,8,10W/pulse)
AC 200V~240V 50/60Hz
Features
• Indicates power consumption of every indoor unit
• Accumulated total power consumption
• Accumulated / current power consumption of each indoor unit
• Period accumulated power consumption
• Data back-up on EEPROM even if power turns Off
• Max 48 indoor units
• Connectable to PCC
• Applied products : MULTI V PLUS & MULTI
Digital WHM
(Local purchase)
AC220V
RS485
Network
solution
