2-121 2-122

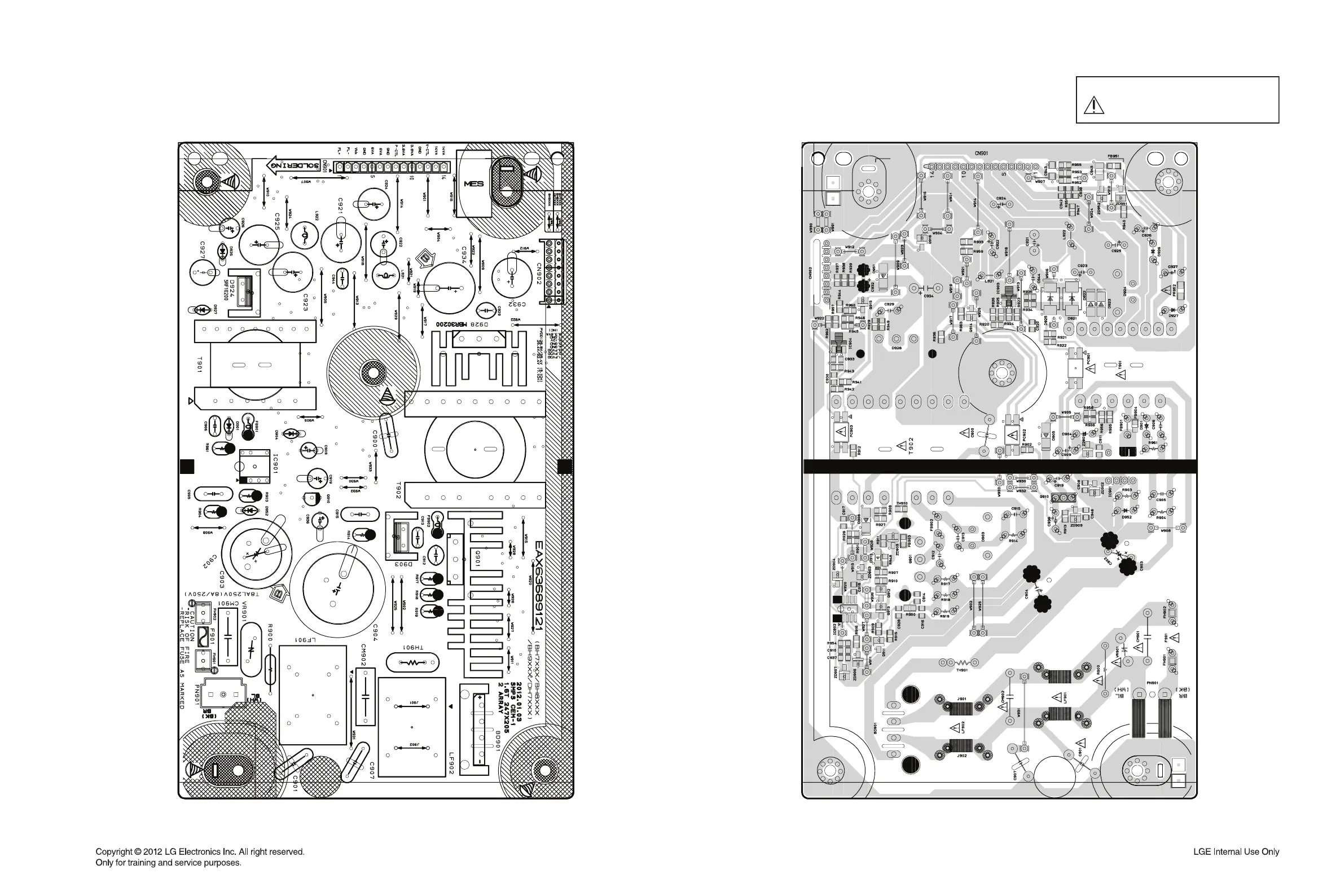

PRINTED CIRCUIT BOARD DIAGRAMS
1. SMPS P. C. BOARD
(TOP VIEW) (BOTTOM VIEW)
NOTE) Warning
Parts that are critical with respect to risk
of fire or electrical shock.
