2-55

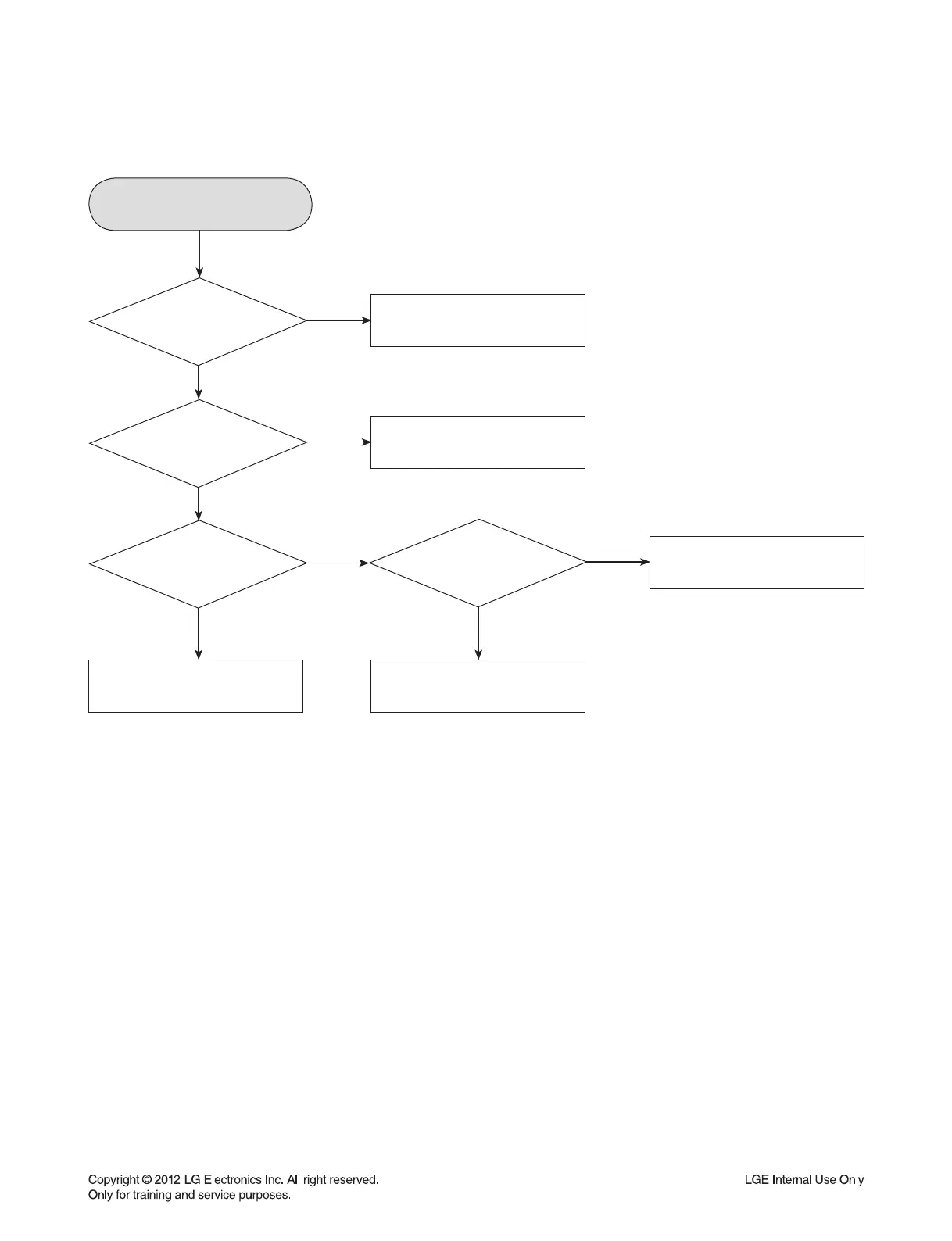

ELECTRICAL TROUBLESHOOTING GUIDE
5. NO CVBS VIDEO OUTPUT
No CVBS / COMPOSITE
video on display
YES
YES
YES
YES
Check IC501’s VCC
or replace IC501.
Replace L2V1.
Replace D201.
Check JK251
and RCA cable connection.
Is there
CVBS signal
on L2V1?
Is there
CVBS signal out
of L2V1?
NO
NO
NO
Check IC153.
D201
5 V OK?
Is there
signal on D201?
NO
YES
