2-95 2-96
7
A
1
2
3
4
5
6
7
8
9
10
11
12
BCDEFGH I J KLMNOPQRST
ADC/DIR
EAX64508302(#7), Rev1.1(0)
2012. 03. 05
: WAVEFORM NUMBER

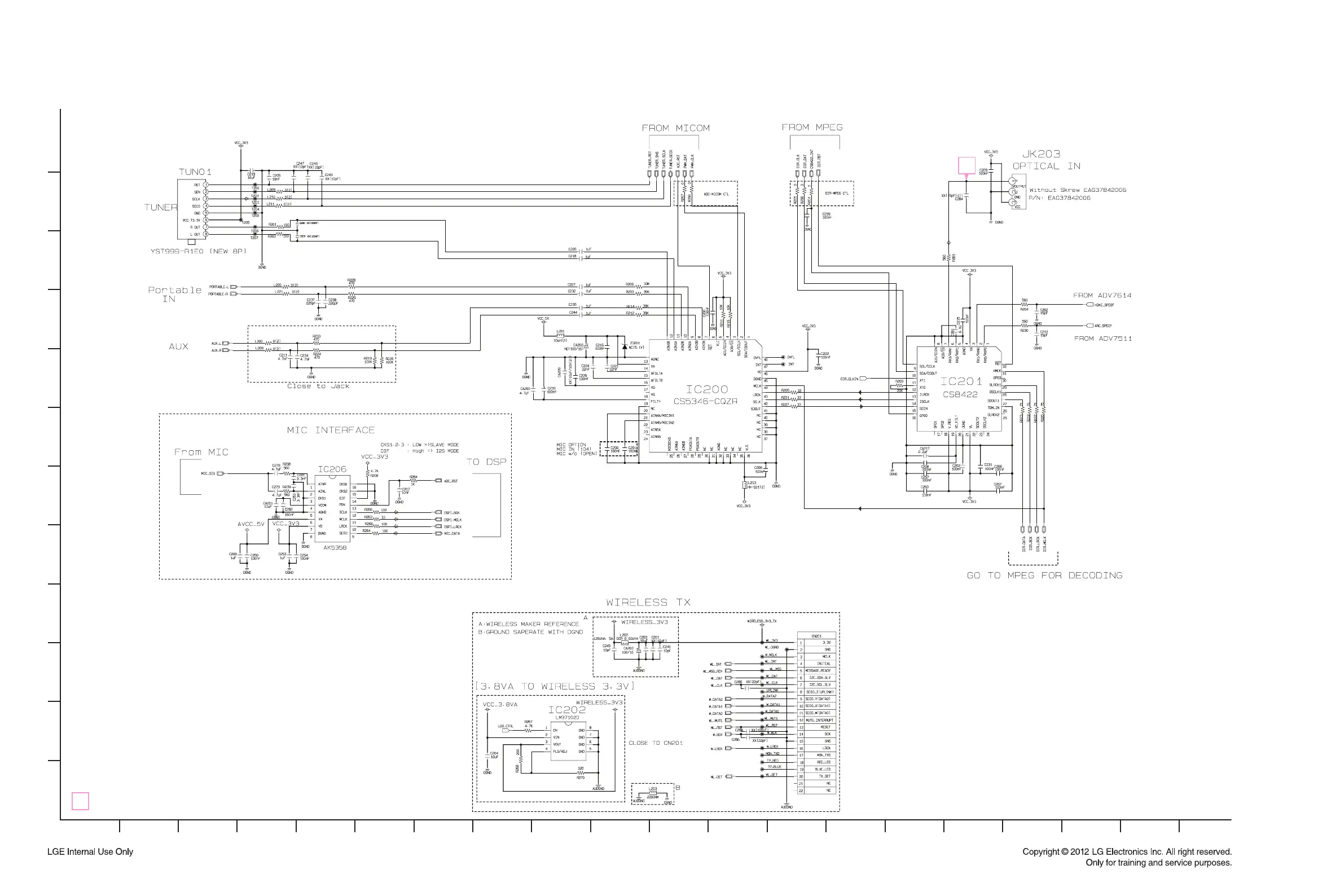

7. MAIN - ADC/DIR CIRCUIT DIAGRAM
