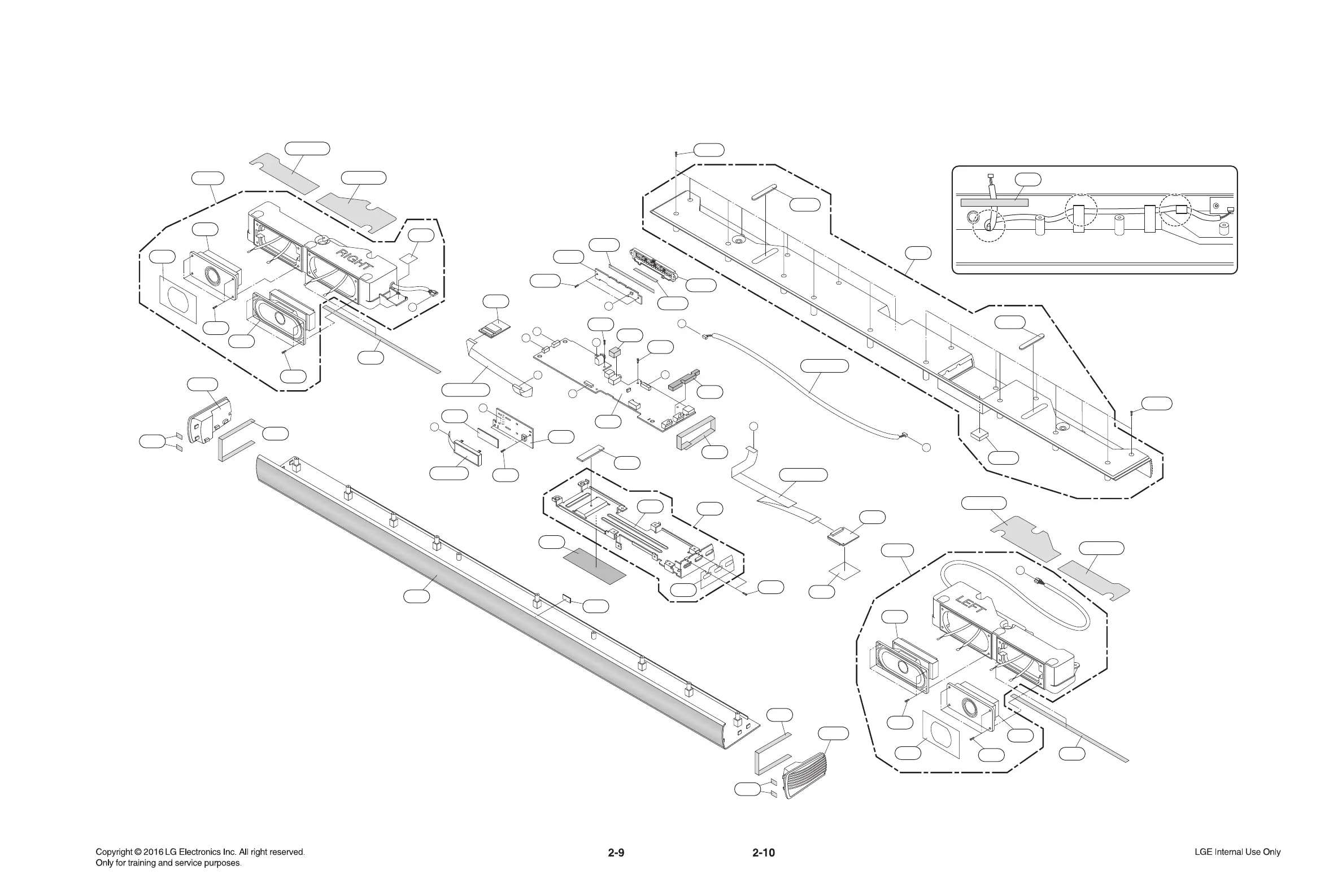

LG SH4 - Optional equipment connection; HDMI connection

2-7
Figure 2-2
Figure 2-1
2. HOW TO DISASSEMBLE THE WOOFER
2) Remove the 5 screw s and Disconnect Harness/FFC cables (Wireless , Power, SPK) .
3) Remove the WF board Assembly and the Wireless Module.
1) Remove the 13 screws and pull out the Rear Panel Assembly.
Power Inlet
Socket
Wireless
FFC cable
SPK cable
Remove EVA
covered Wireless module
