ONE POINT REPAIR GUIDE
12. IF NOT BOOTING WHEN YOU TURN ON THE SET.
12-1. IC501 (MPEG IC)
12-1-1. Solution
Replace IC501 on MAIN board. (This chip is so hard to change IC, so we recommend to change PCB.)
12-1-2. How to troubleshoot (Countermeasure)
1) Check physical status of IC501 on your eyes.
2) Check 1.2 V of L309, If 1.2 V is abnormal, follow the stage 4-1 (IC307).
3) Check 1.5 V of L308, If 1.5 V is abnormal, follow the stage 8-1 (IC303).
4) Check D_3.3V of L313, If D_3.3V is abnormal, follow the stage 6-1 (IC304).
5) Check the frequency of 27 MHz crystal (X501).
If the crystal doesn’t oscillate, replace X501.
6) When you followed above step but it doesn’t work, replace the IC501.
12-1-3. Service hint (Any picture / Remark)

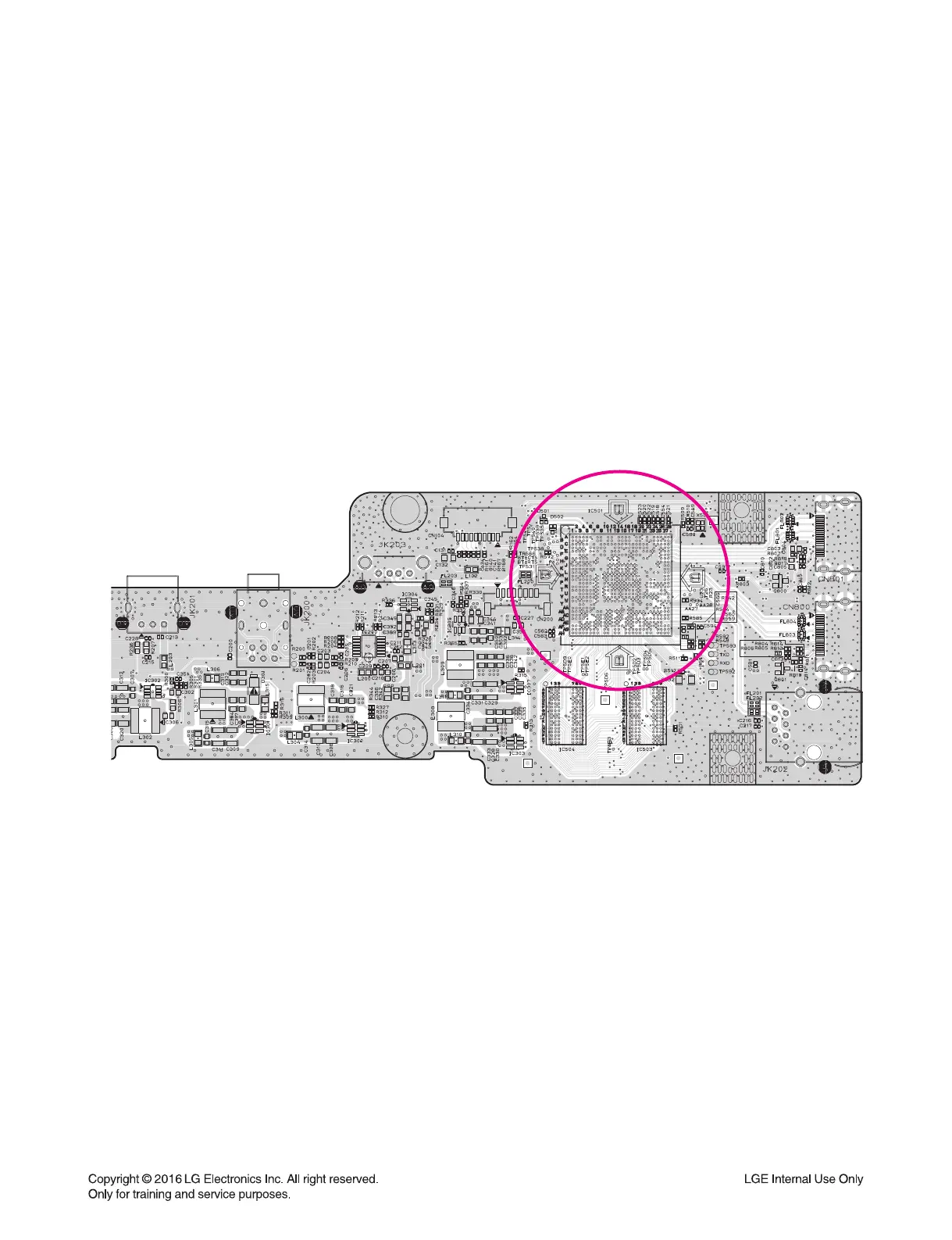

< MAIN board top view >
IC501
To Next Page
