ONE POINT REPAIR GUIDE
20. Wi-Fi FUNCTION DOESN’T WORKING
20-1. Wi-Fi module
20-1-1. Solution
Replace Wi-Fi module or IC501 on MAIN board.
(This chip is so hard to change IC, so we recommend to change PCB.)
20-1-2. How to troubleshoot (Countermeasure)
1) Check Wi-Fi cable state.
2) If it is OK, change the Wi-Fi module, and try again.
3) If it still doesn’t work, check WIFI_3.6VA (L315)
4) If It is abnormal, check 12 VA of IC301 pin3.
If it is weird, follow the stage 1-1 (IC302).
5) If it is OK, check the state of WIFI_CTRL (C593). It should be high.
6) If it still doesn’t work, follow the stage 12-1 (IC501).
20-1-3. Service hint (Any picture / Remark)

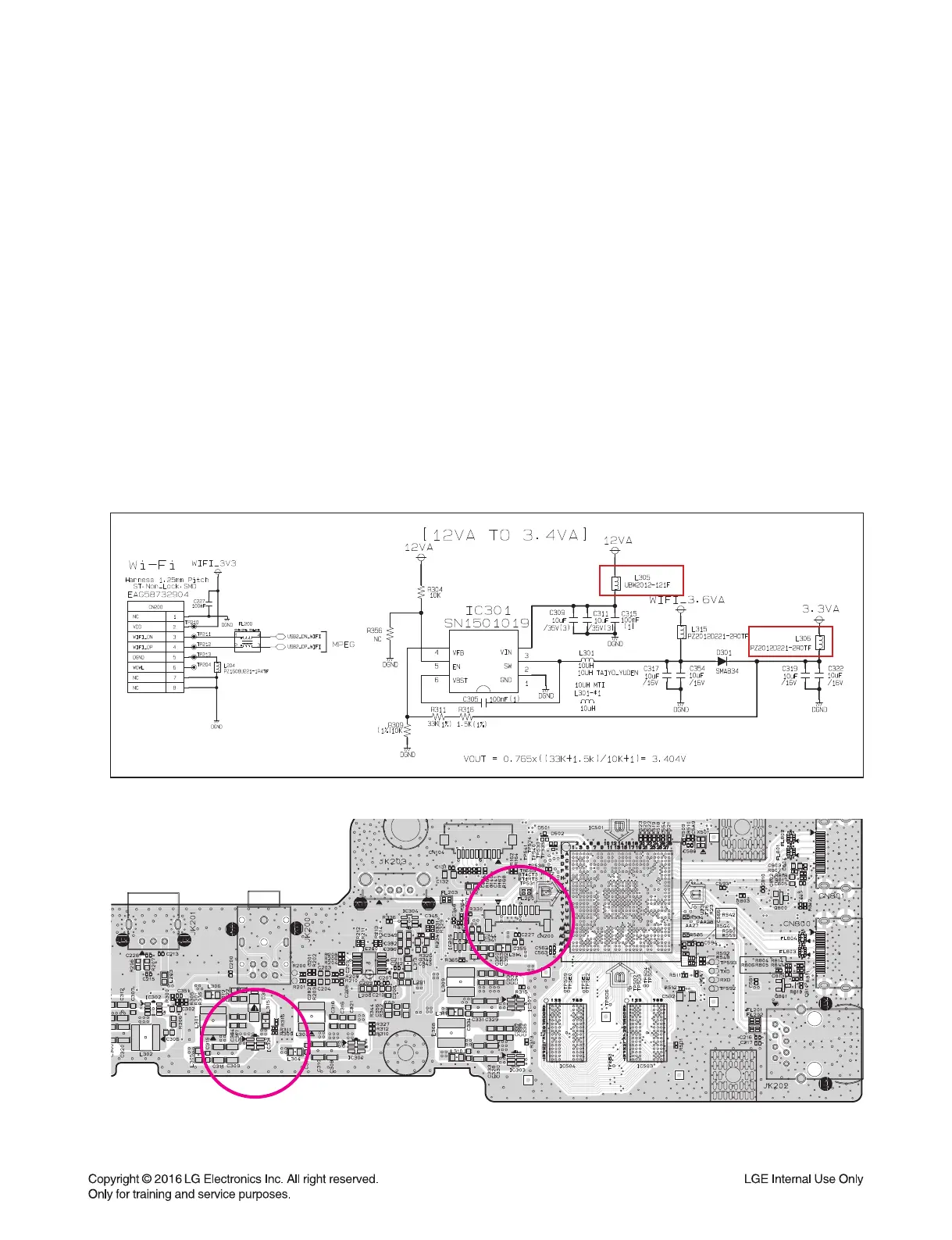

< MAIN board top view >
CN200
IC301
To Next Page
