LG SPH7B-W - Main - Adc & I;O Circuit Diagram

3-423-41
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
ADC & I/O
EAX66934201 Rev1.2(7) MAIN(#4)
2015.12.28

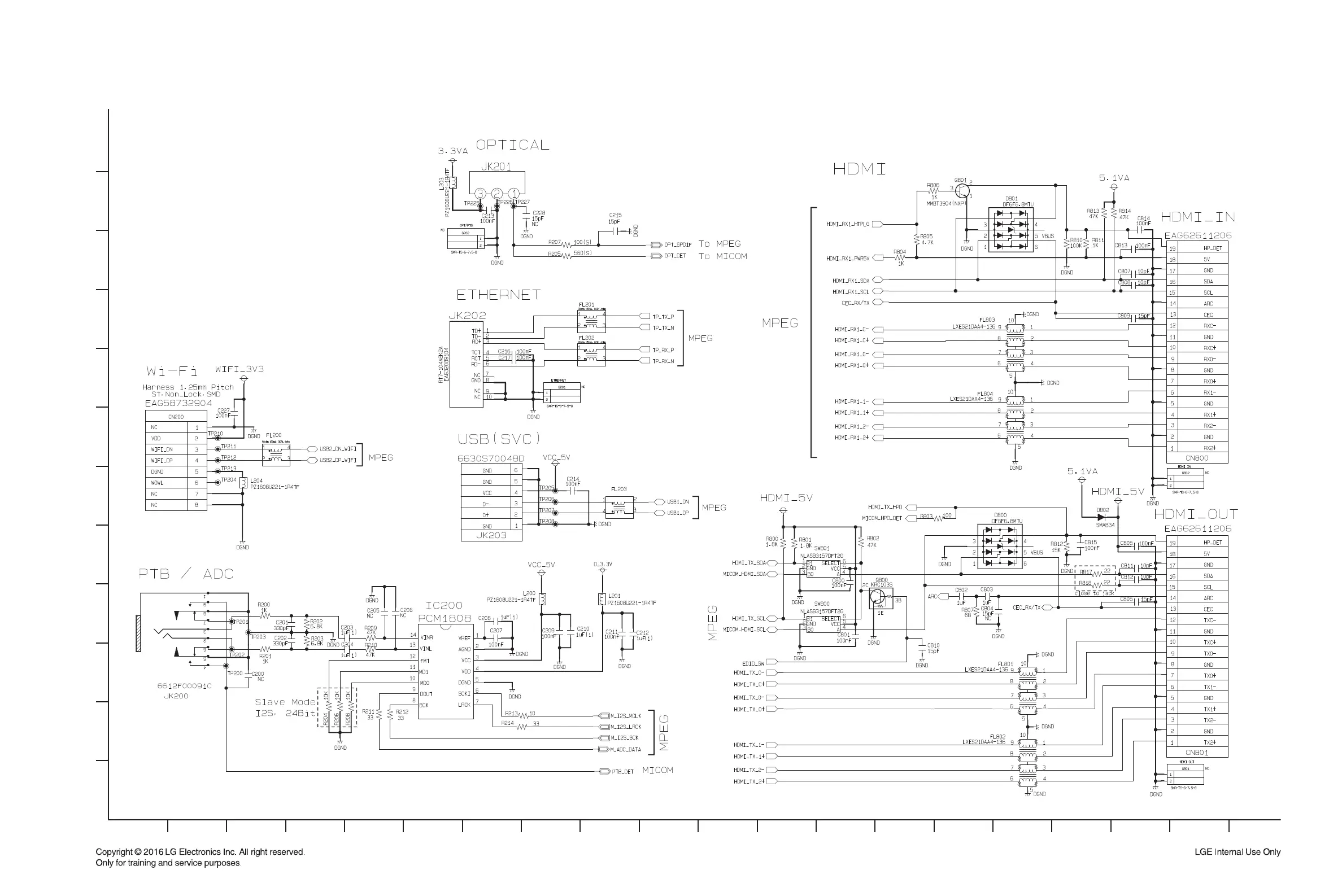

4. MAIN - ADC & I/O CIRCUIT DIAGRAM
