Main Chassis Assembly
WIRELESS
KEY BT
1
1

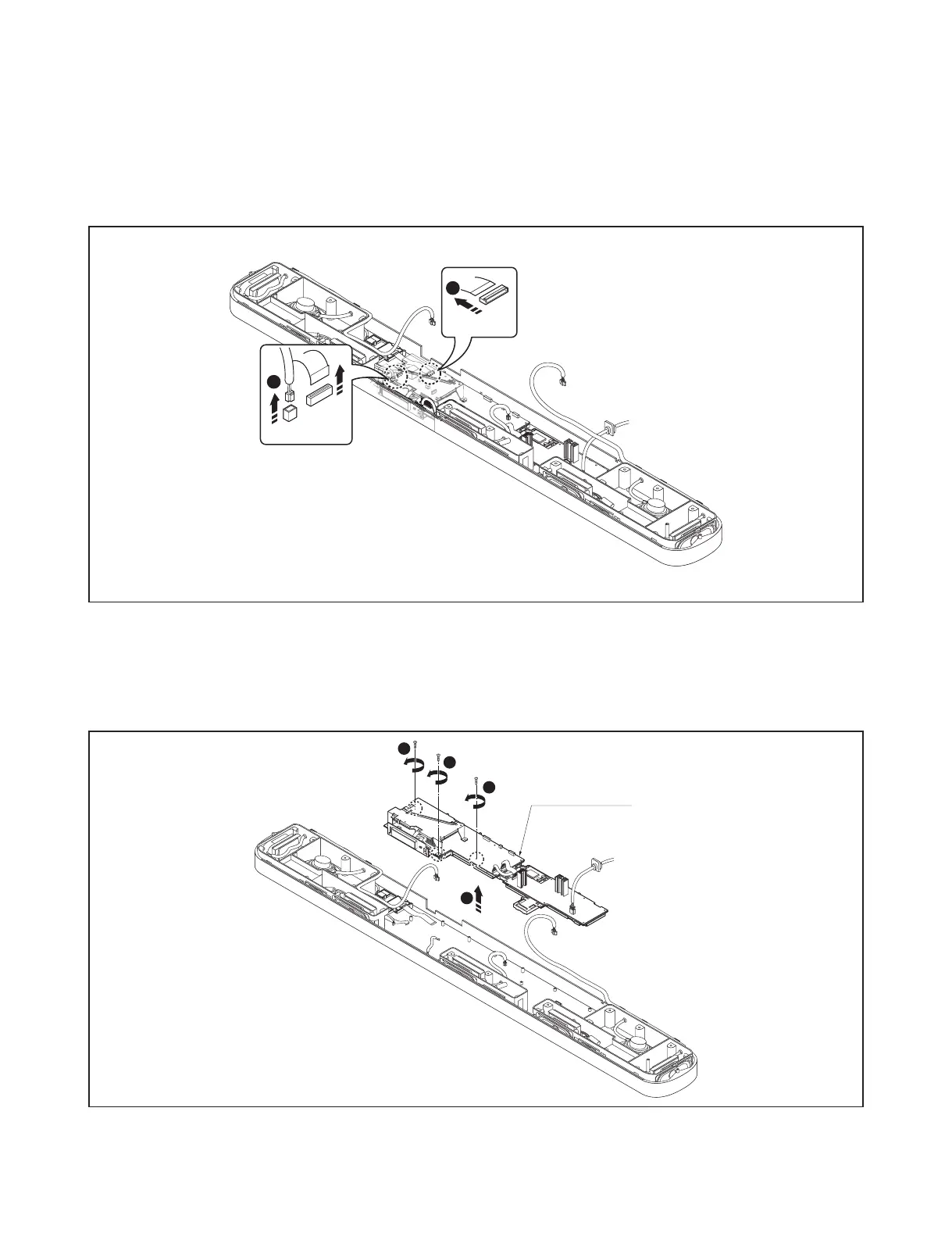

Figure 1-3 (2)
Figure 1-3 (1)
HOW TO DISASSEMBLE THE MAIN UNIT
2) Remove the 3 screws.
3) Remove the Main Chassis Assembly. (Main Chassis + PCBA)
1-3. Main Chassis Assembly
1) Disconnect the 3 cables from the Main PCB. (KEY, BT and WIRELESS)
