LG SPJ9B-W Service Manual

2-5
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
1
2
FRONT PCB
2
2
1
3
4
5
4
JACK PCB
JACK PCB Sub
Assembly

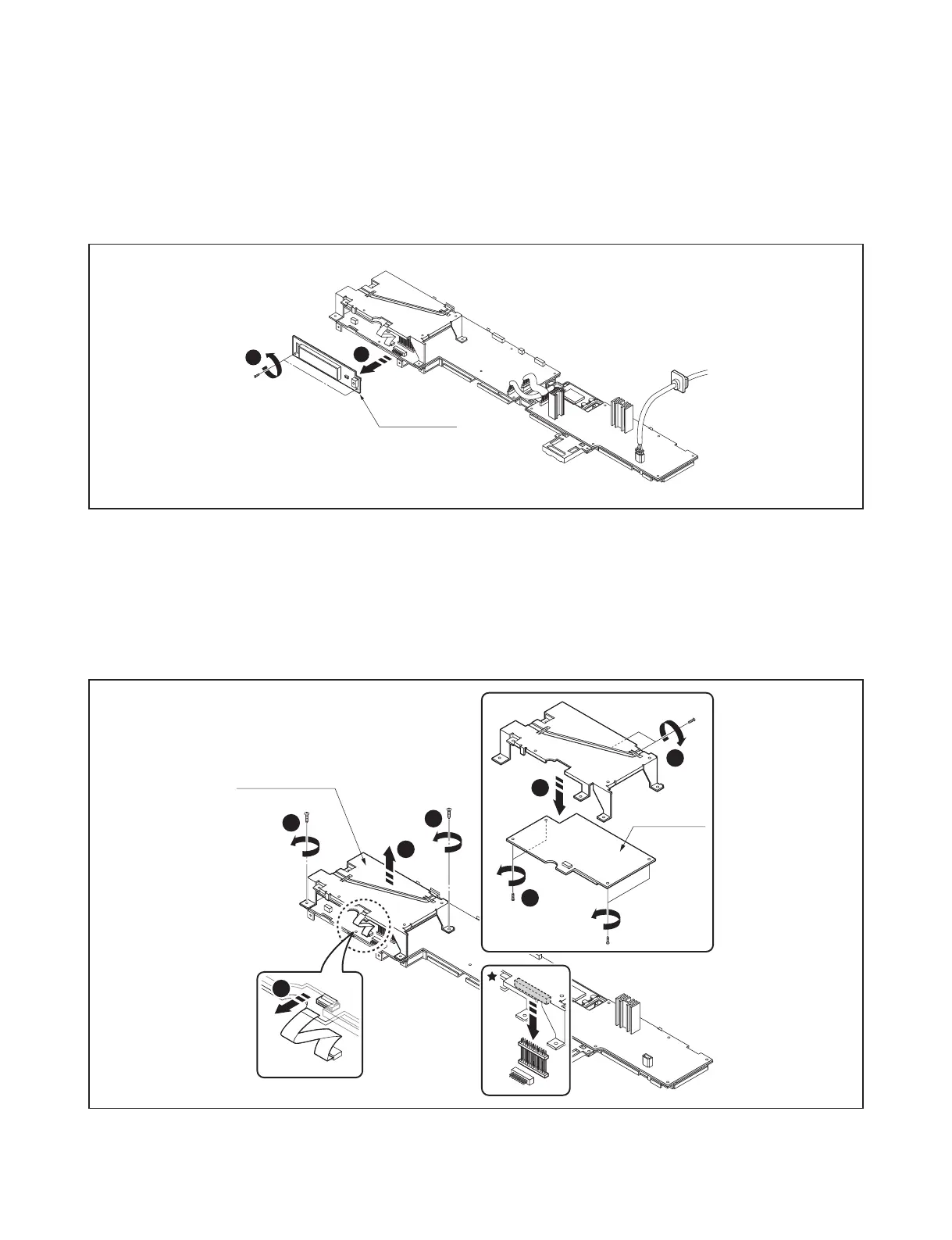

Figure 1-3-1
Figure 1-3-2
HOW TO DISASSEMBLE THE MAIN UNIT
1-3-1. Front PCB Assembly
1) Remove the 2 screws.
2) Remove the Front PCB Assembly.
1-3-2. JACK PCB Assembly
1) Disconnect the cable.
2) Remove the 2 screws.
3) Remove the JACK PCB Sub Assembly.
4) Remove the 6 screws.
5) Remove the JACK PCB Assembly.
