LG SPJ9B-W Service Manual

2-6
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
2
3
1
1
SMPS PCB
2
3
1
MAIN PCB
Wi-Fi
Figure 1-3-3
Figure 1-3-4
HOW TO DISASSEMBLE THE MAIN UNIT

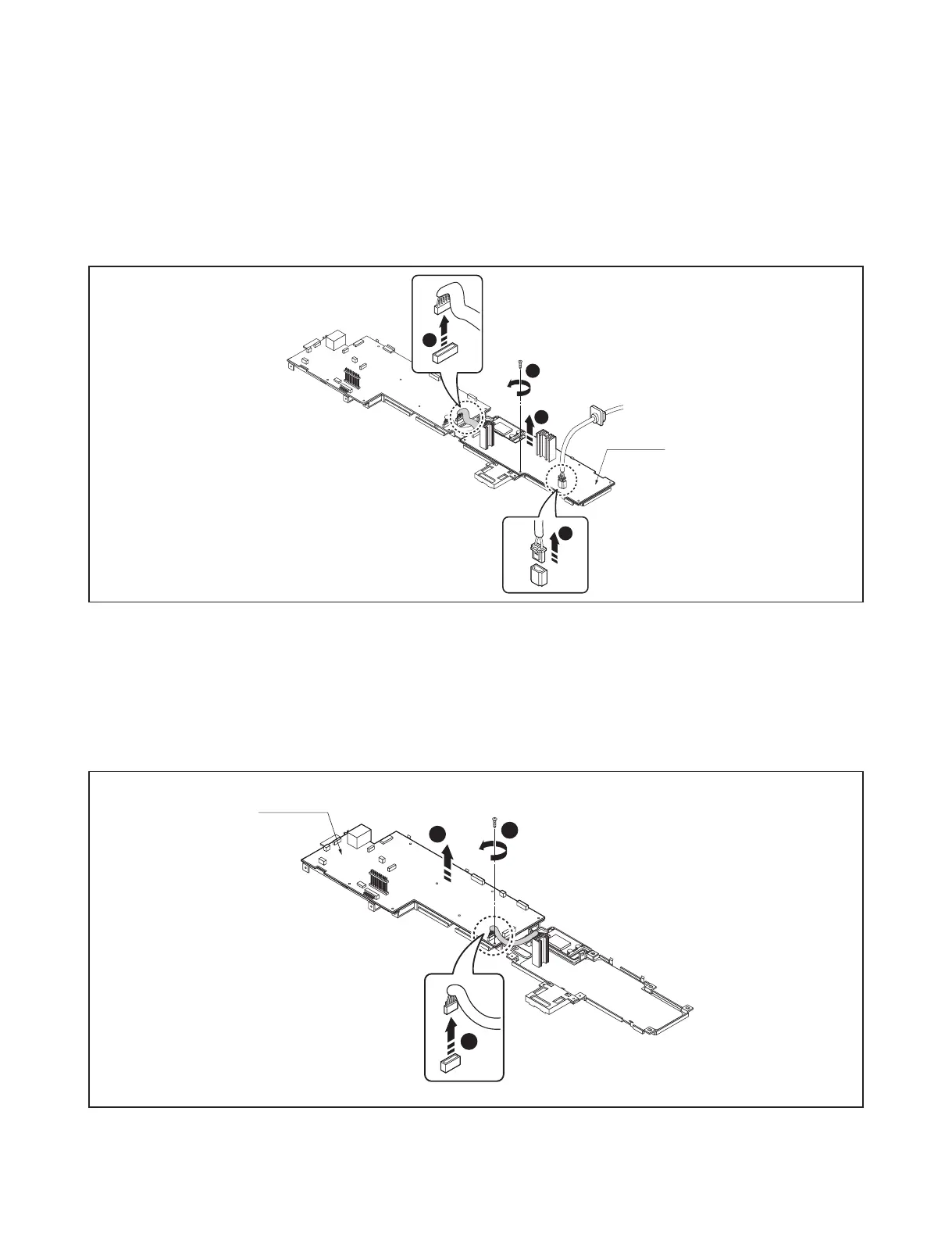

1-3-3. SMPS PCB Assembly
1) Disconnect the 2 cables.
2) Remove the screw.
3) Remove the SMPS PCB Assembly.
1-3-4. MAIN PCB Assembly
1) Disconnect the cables.
2) Remove the screw.
3) Remove the MAIN PCB Assembly.
