Replacement Procedure for INV PCB
2. Replacement Procedure for INV PCB
1. Disassemble panel assembly by unscrewing 4 screws. (Figure 1.)
2.
Replace INV PCB assembly. (Figure 2.)
When assemble INV PCB assembly with control case, make sure that PCB case is inserted surely in the slit of control case.
3. Assemble panel assembly and main PCB.

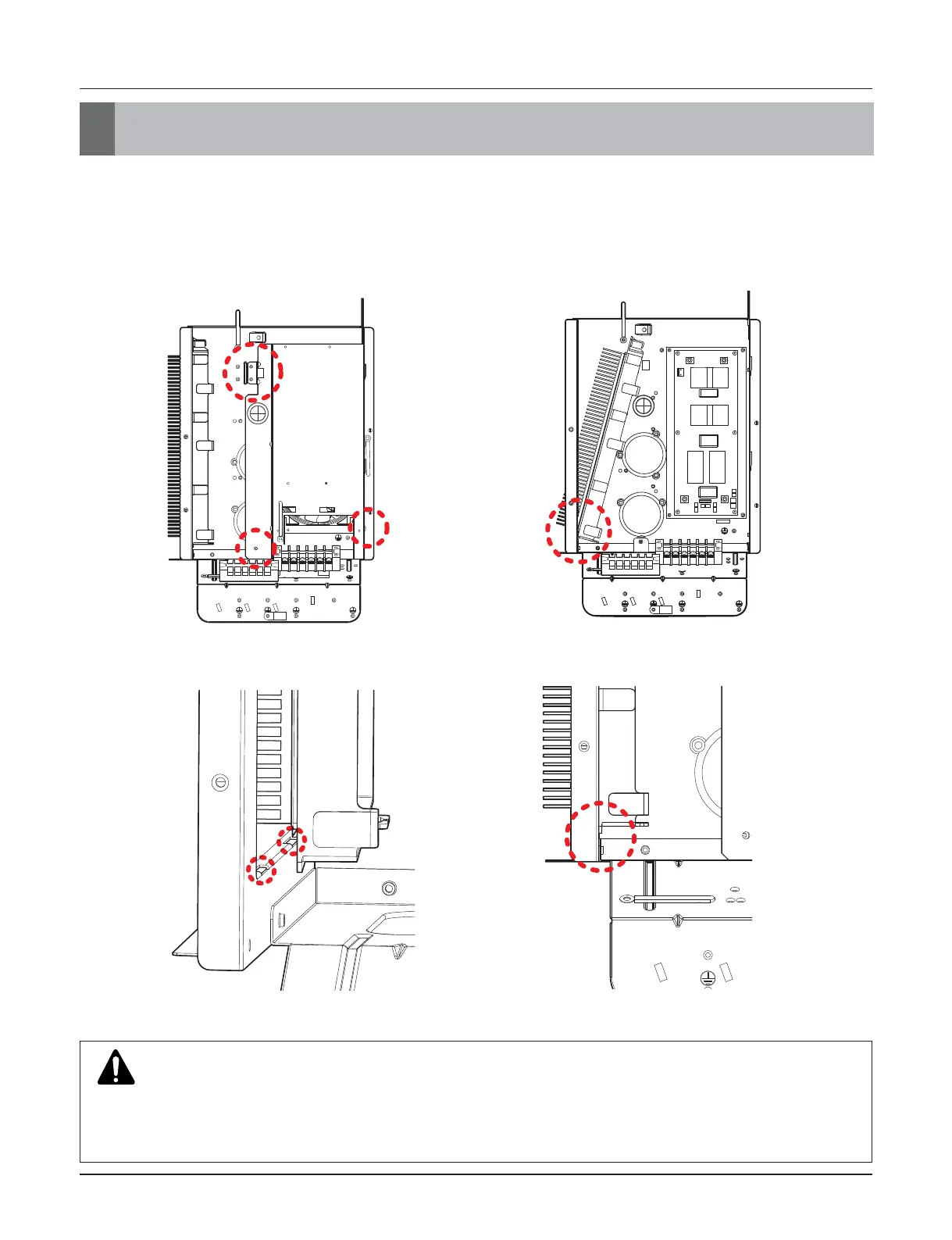

< Figure 2. >
< Figure 3. > < Figure 4. >
< Figure 1. >
CAUTION
Be sure that INV PCB assembly is firmly assembled with control case.
Confirm that there is no gap between INV PCB case and control case. (Figure 4.)
If any gap is present, it will cause product malfunction.
