Caution for Assembling Outdoor Panels after Test Run
3. Caution for Assembling Outdoor Panels after Test Run
If the connection between wires is incorrect, performance of the unit would be decreased.
CAUTION

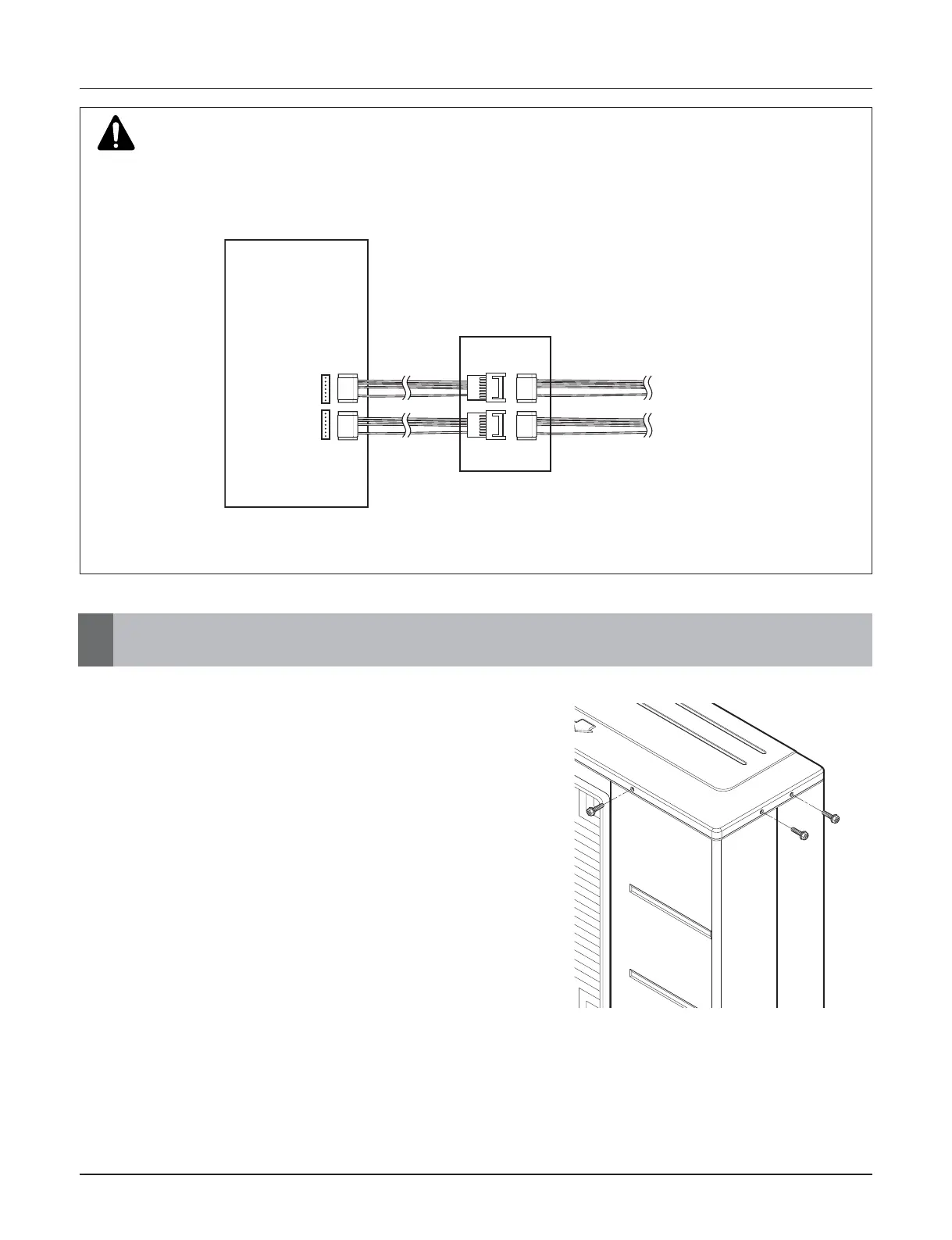

After replace the INV PCB assembly, make sure that connection of fan motor wires is correct.
When assemble the outdoor panels after replacement, make sure
that screws of top panel are assembled as shown figure below.
If screws are not assembled, it allows rain come into control box
causing defect of unit.
Main PCB Case
to Fan moter
Fan motor wire
terminal
[blue housing]
YELLOW
[blue housing]
[white housing]
RED
YELLOW
RED
YELLOW
RED
YELLOW
RED
Fan motor wire
terminal
[white housing]
to Fan moter
INV. PCB
