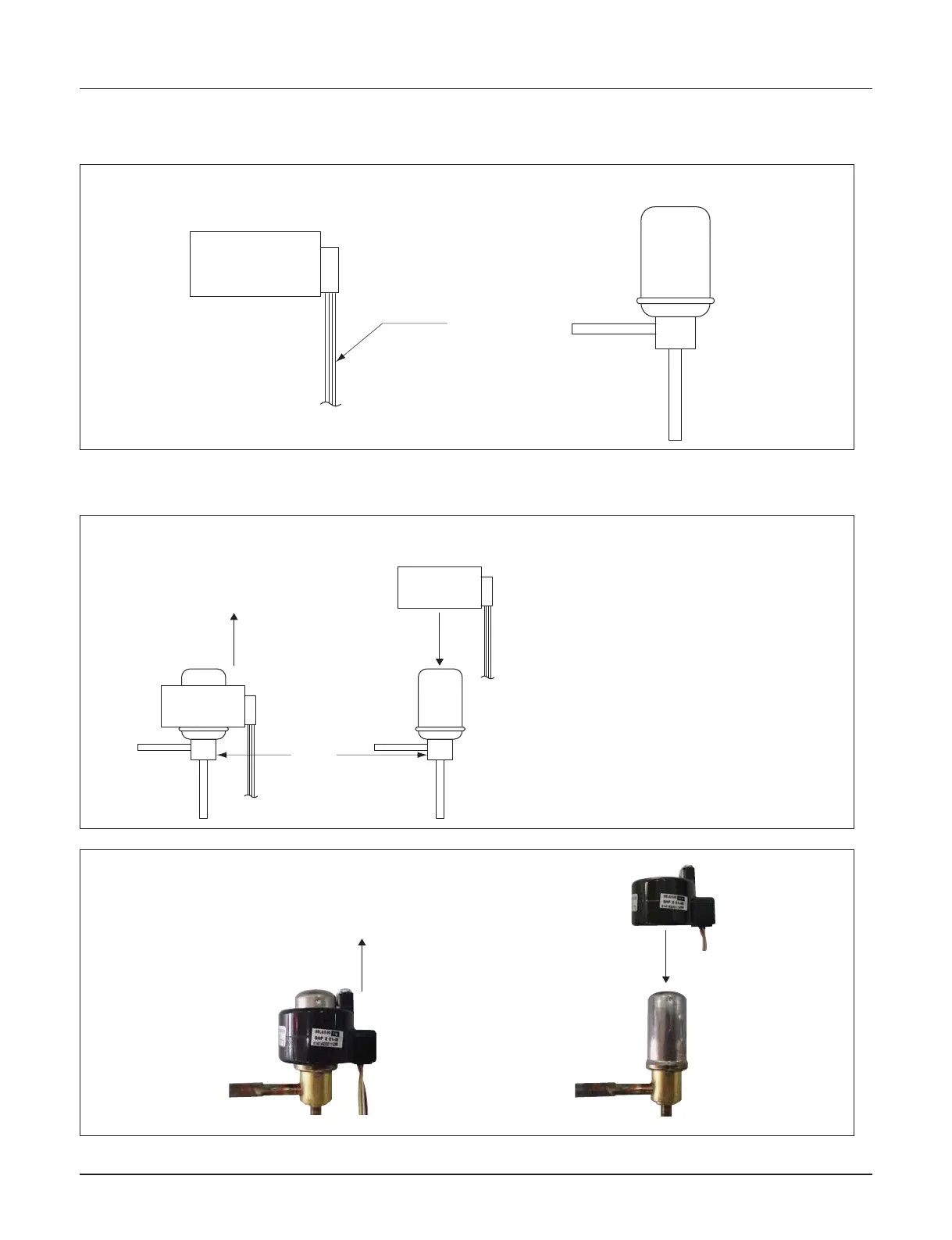

• EEV coil and body (Outdoor unit)
• Remove and assemble the coil
Lead wire
Coil part Body
A part
Remove Assemble
• Grip the A part tightly, and pull up coil part
upward.
When the coil part is removed or assembled,
be careful not to bend the pipe of the body.
