Using the Computer
1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
2. Press button on the front switch panel to turn the power on.
When monitor power is turned on, the 'Self Image Setting
Function' is executed automatically.
(Only Analog Mode)
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user
connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual
input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the
‘AUTO/SET’ button on the front panel of the monitor. Otherwise, you may execute the ‘ Factory reset’ option on the
OSD adjustment menu. However, be aware that this option initializes all the menu items except ‘Language’.
2

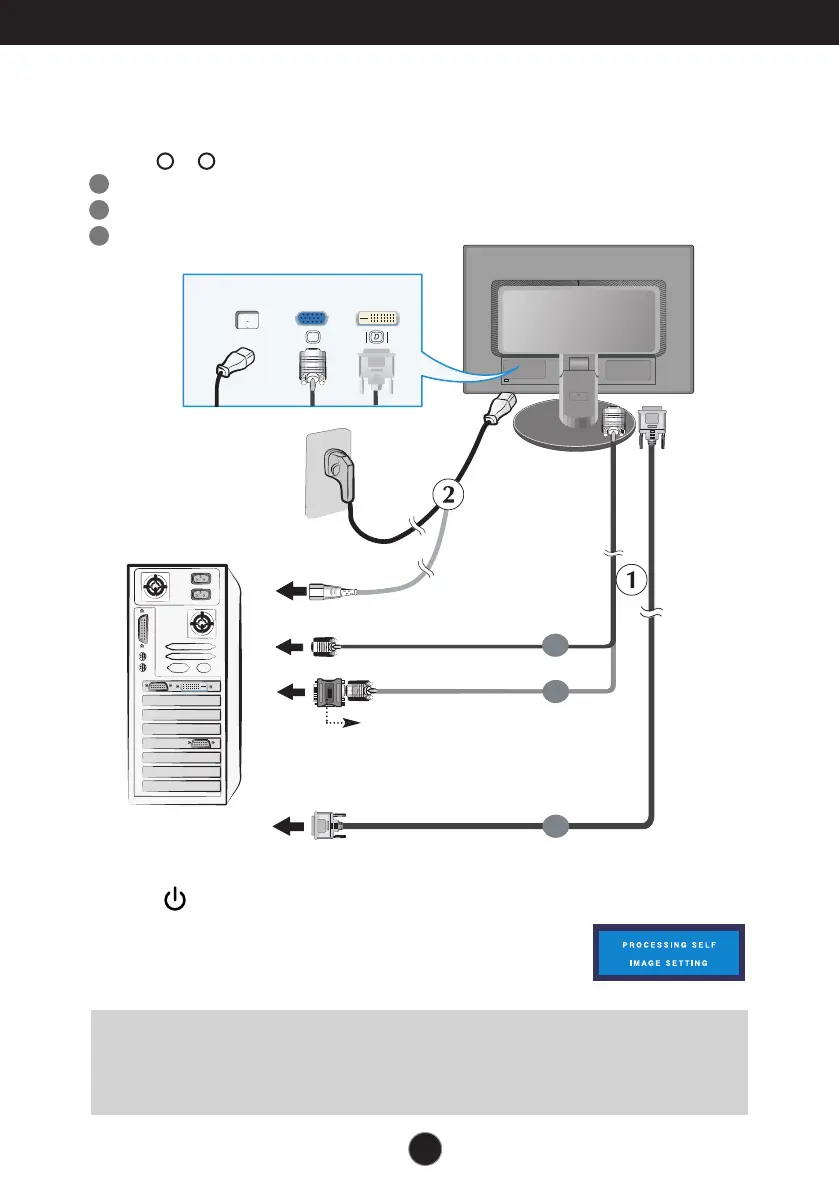

Connecting the Display
Wall-outlet type
PC
PC
PC
MAC
A
B
C
Connect DVI Cable
Connect Dsub Cable (PC
)
Connect Dsub Cable (Mac
)
PC-outlet type
Mac adapter
For Apple Macintosh use, a separate plug adapter is
needed to change the 15 pin high density (3 row) D-sub
VGA connector on the supplied cable to a 15 pin 2 row
connector
.
DVI-D(This feature is not available in all countries.
)
c
B
A
PUSH
Power Cord
Analog signa
l
D-sub
Digital
signal
DVI
