LG WD-10480T User Manual

19
NO
YES
NO
YES
NO
YES
NO
NO
YES
YES
YES
NO
NO
NO
YES
Wiring diagram
option (HOT)
option (HOT)
MAIN WASH
: Detergent
WASH
PRE -
W
MAIN
SOFTENER
ASH
MAX
max

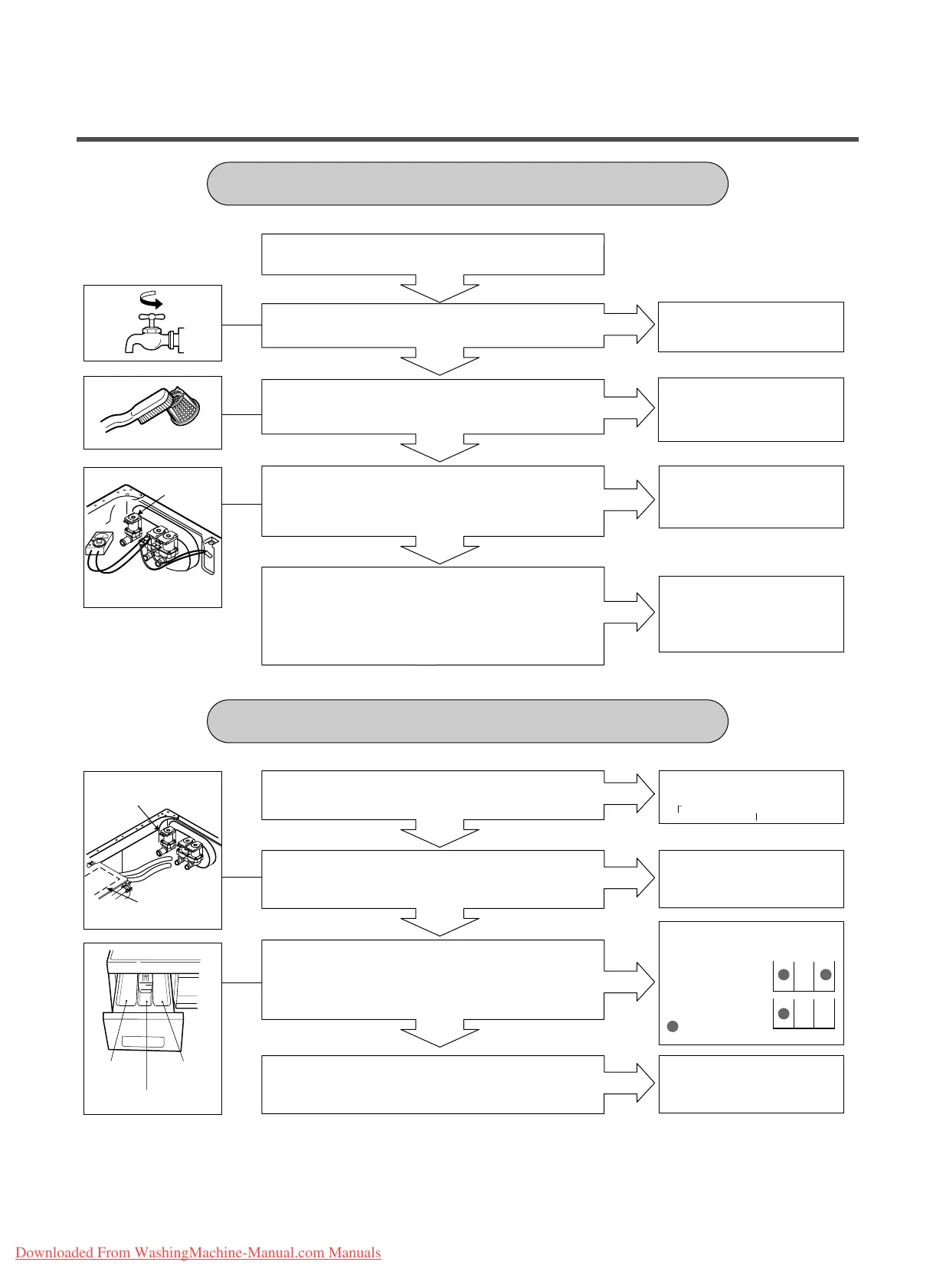

Is the water supply shut-off?
Is the tap opened?
Is the inlet valve filter clogged with impurity?
Is resistance of the inlet valve connector
between the 2 to 8 kΩ?
Check the voltage between each terminals of
inlet Valve is 220 - 240V~.
(Refer to 7-2 TEST MODE)
Is water supplied?
Are receptacles correctly connected to the
terminals of inlet valve?
Is detergent put in the correct compartment of
the drawer?
Is the detergent caked or hardened?
Open the tap.
Clean the filter.
Replace the inlet valve.
Replace PWB assembly
Refer to solution
NO INLET
Check the wiring on the
dispenser.
Put the detergent in the
correct position
PRE+MAIN
Clean the drawer.
NO WATER SUPPLY
DETERGENT DOES NOT FLOW IN
