LG WD-10480T User Manual

28

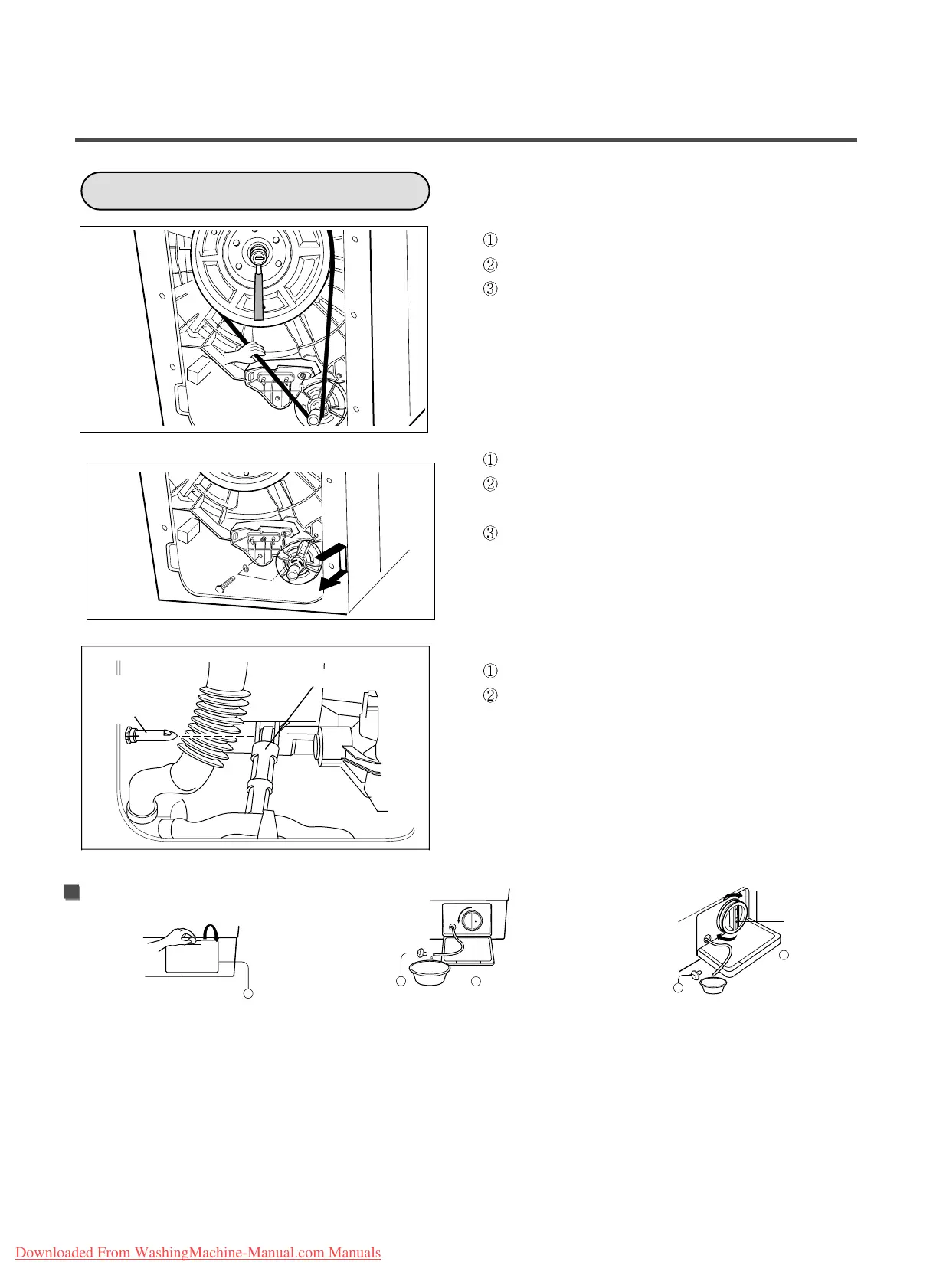

Remove the back cover.
Take off the belt turning the pulley.
Unscrew the bolt to pull out the pulley.
Unscrew 2 screws from the bracket.
Push the motor in the arrow direction for
disassembling.
When reassembling the motor, make sure that motor
mounting bushings are not taken off from the bracket.
Pull out the hinge, pressing its snap.
Do not use the pulled - out hinge again. It may be
taken off during operation.
Hinge,
Damper
Damper
1
2
3
PULLEY, MOTOR, DAMPER
(PULLEY)
(MOTOR)
(DAMPER)
Open the lower cover cap (󳡉) by
using a coin. Turn the drain plug
(󳡊) to pull out the hose.
Unplug the drain plug (󳡊 ) , then
the water flows out,
At this time use a vessel
To prevent water from flowing on
the floor. If the water does not flow
any more,turn the pump filter (󳡋 )
open to the left.
Take out any foreign material
from the pump filter ( 󳡋 ). After
cleaning, turn the pump filter(󳡋 )
clockwise and insert the
drain plug ( 󳡊 )to the original
place. close the lower cover cap.
Clean the drain pump filter
1
100
2
3
2
3
Downloaded From WashingMachine-Manual.com Manuals

LG WD-10480T Specifications

General

Power consumption (typical)	2100 W
Water consumption per cycle	69 L
Energy consumption washing per cycle	1.2 kWh
Display type	LED
Loading type	Front-load
Product color	White
Door opening angle	180 °
Appliance placement	Freestanding
Washing class	A
Power requirements	AC 220 - 240V, 50Hz
Drum capacity	7 kg
Delay start (max)	19 h
Spin-drying class	B
Maximum spin speed	1000 RPM
Delayed start timer	Yes
Number of washing programs	16

Weight and Dimensions

Depth	550 mm
Width	600 mm
Height	842 mm
Weight	65000 g
