Pump Outlet Hose
Tub Pump
Bellows

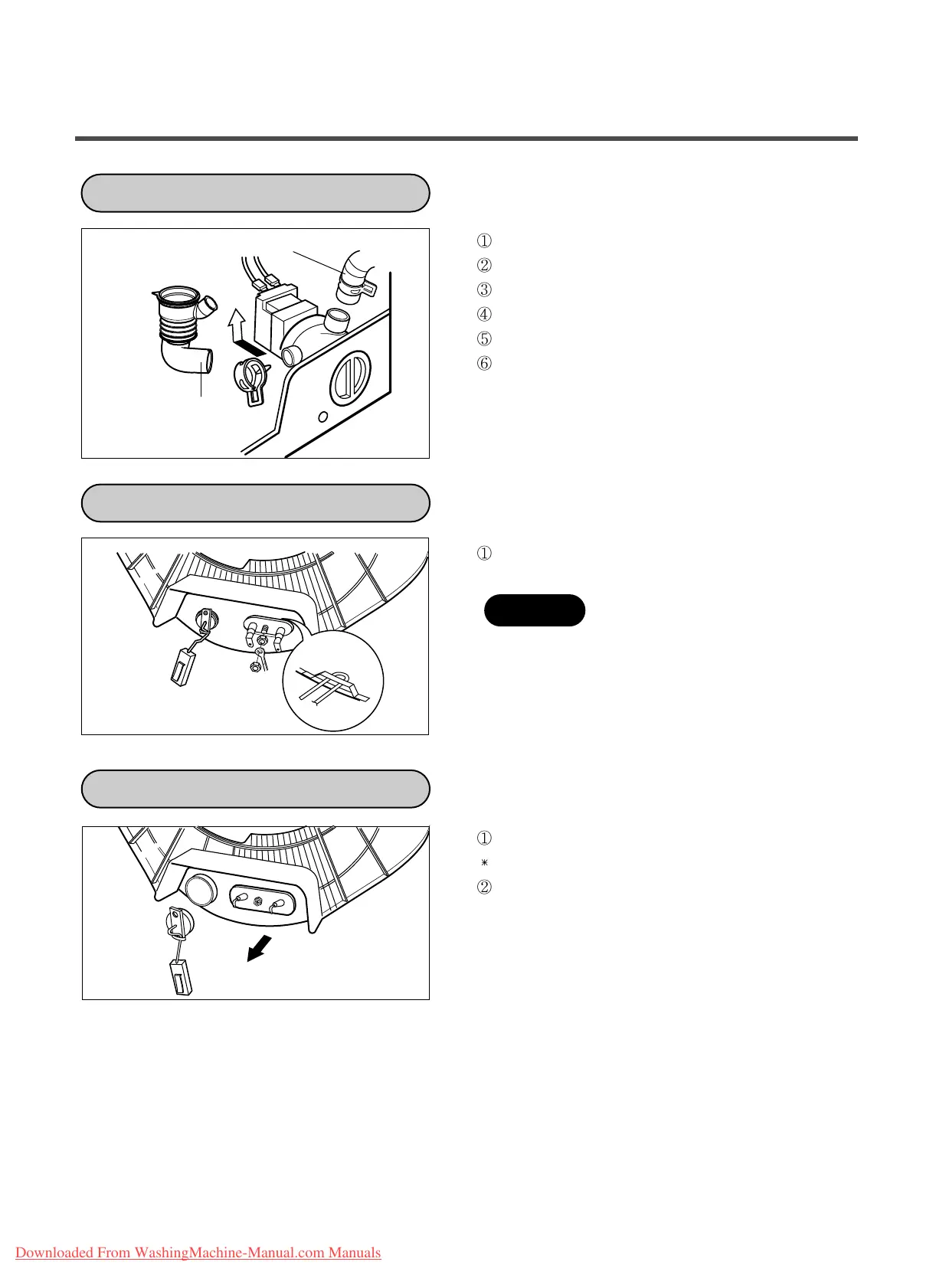

Remove pump outlet hose.
Remove tub pump bellows.
Remove cap (Remaining Hose.)
Disconnect the wiring.
Unscrew 2 screws.
Remove the pump.
Loosen the M6 heater nut to pull out the heater.
When mounting the heater, be sure to insert the heater
into the heater clip on the bottom of the tub.
Pull it out by holding the thermistor bracket.
If it is pulled by the wire, it may be broken.
When mounting the thermistor again, make sure that it
is got back tight to the bushing.
PUMP
HEATER
THERMISTOR
CAUTION
Downloaded From WashingMachine-Manual.com Manuals

LG WD-10480T Specifications

General

Power consumption (typical)	2100 W
Water consumption per cycle	69 L
Energy consumption washing per cycle	1.2 kWh
Display type	LED
Loading type	Front-load
Product color	White
Door opening angle	180 °
Appliance placement	Freestanding
Washing class	A
Power requirements	AC 220 - 240V, 50Hz
Drum capacity	7 kg
Delay start (max)	19 h
Spin-drying class	B
Maximum spin speed	1000 RPM
Delayed start timer	Yes
Number of washing programs	16

Weight and Dimensions

Depth	550 mm
Width	600 mm
Height	842 mm
Weight	65000 g
