Owner‘s Manual

WD14030RD

Safe ty in struc tions for use

Read all instructions and explana tions of the installation before use. Follow the instructio ns carefully. Keep the operating instruc-

tions handy for later use. If the appliance is sold or passed on th en ensure that the new owner always receives these operating

instructions. T he following warnings must be strict ly observed for safety rea sons. They must be read before ins talling the appli-

ance and putting it into o peration.

• I ntended use: This appliance has been designed exclusively fo r use in dry-interior households. It has not be en designed for

use in commercial or industrial a pplications, (for example, Beauty salons L aundromats etc). Use the appliance only with cold

drinking grade water and only for w ashing textiles with washing detergents designed fo r washing machines. Every other use

is improper and may lead to injuries, wher eby the liability of the manufacturer will cease.

• T his appliance may only be used by adults. Do not allow children to t ouch the controls or to play with the product.

• T his appliance is not intended for use by persons (in cluding children) with reduced physical, sensory or me ntal capabilities,

or lack of experience and kno wledge, unless they have been given supervision or inst ruction concerning use of the appliance

by a person responsible for t heir safety.

• N ever modify the appliance as this is dangerous .

• T his appliance is heavy. Transport with care and ensure th at the transit bolts are re ﬁ tted during the machines deliver y to

any new location.

• R emove all packaging and transport bolts be fore using the appliance. Otherwise seriou s damage may result.

• A ll installation work must be carried out by a qua liﬁ ed ﬁ tter or technician.

• H ave electrical connections done by a qualiﬁ ed electrician.

• N ever place the appliance on the power cord.

• I f the appliance is placed on a carpet then place th e feet so that air can circulate underneath the appliance.

• A lways unplug the machine and turn off the water supply af ter use. Disconnect appliance by pulling only the plug - ne ver

disconnect by pulling the power co rd. Never touch the plug with wet ﬁ ngers or hands.

• D o not overload the appliance.

• Wa sh only machine-washable textiles. If you have doubt s regarding this, then observe the markings o n the label.

• N ever place electrical heaters, candles etc. in th e vicinity of the appliance. They could cause the ap pliance to ignite or parts

to warp.

• P rotect the appliance from wet and damp. Other wise, there is danger of electric shock and ﬁ re.

• C onnect the appliance to a suitable wall socket fo r 240V. Never use an extension cord or double adapter.

• E mpty all pockets. Hard or sharp object s such as coins, needles, nails, screws or stones may cause s erious damage.

Unbalanced mass may create he avy vibrations. If heavy vibrations re main also without load, call for an authorized custome r

service.

• D o not wash or dry articles that have been clean ed in, washed in, soaked in, or dabbed with combustible o r explosive

substances (such as wa x, oil, paint, gasoline, degreasers, dry-clea ning solvents, kerosene, etc.). This may result in ﬁ re or

explosion. Do not spray or use s tain remover products near or directly on the machin e as it can damage the machines ﬁ nish.

• N ever insert products coated with minera l oils (e.g. nylon coating, plastic belts, etc. ) into the machine. If a s tain remover has

been used then make sure that the s olvent has been carefully washed out before inser ting the clothes into the appliance. Do

not load oily clothes in to the machine as t he oil may remain in the tub after a whole cycle resulting in ﬁ re during drying.

• D o not operate the appliance at locations where ﬂ ammable substances are present such as oil, benzene or highl y inﬂ am-

mable gas. Such materials may cause ﬁ re or explosion. Never use combustible detergent s.

• O nly add the prescribed amount of softener. Excessi ve amounts may damage or stain the clothes

• A fter washing, keep the drum door open to protec t the door seal.

• M ake sure that all water has run off before opening the do or. Never open the door if water still remains. There may be a

danger of scalding.

• A nimals and children may get into the washing machine. So always check th e appliance before using it.

• D uring washing, the glass door becomes very ho t. Keep children away from the appliance when in operation.

• N ever try to repair the machine yourself. Incorre ct repairs may result in injuries and/or serious defect s to the machine.

• T he product should be serviced and repaire d only by the authorised customer service usin g original replacement parts.

• W hen disposing of your old machine, the power cable must be cap ped or cut off, and the door lock must be made unusable

in order to protect children.

• W hen placing on a carpeted ﬂ oor, make sure that the opening in the socket is not blo cked.

• I f the appliance has been under water then contac t the customer service. Do not use the machine as it may impo se an

electric shock or ﬁ re hazard.

• T he lower ﬁ lter cover as well as the disp enser drawer may not be opened during the operation.

• K eep all washing powder and detergents away from children. The re is a danger of poisoning

Please read safety inst ructions carefully before operating the machin e.

Thank you for b uying an LG fully automat ic washing machine.

Please read t his owner‘s manual ca refully, it provides instr uctions on safe inst allation, use and maint enance.

Keep it handy fo r future reference of thi s machine. Make a note of the mod el and serial numbers of y our washing machine.

Safe ty in stuc tions for t he ins talla tion

Install or store the appliance wher e it will not be exposed to sub-zero temperatures or exposed to the weather. Fit the power plug

to a grounded wall socke t that complies with all statutor y regulations and ordinances. Ensure that the base opening is free from

obstruction by carpeting if the washing machine is installed on a c arpeted ﬂ oor. In co untries where there is a r isk of cockroach

infestation or other vermin, pay particular attention to keep the appliance and its surro undings in a clean condition at all times.

Any damage which may be caused by co ckroaches or other vermin is not covered by the appliance g uarantee.

CAUTION abou t positioning the appliance

Install the was hing machine on a ﬂ at har d ﬂ oor. Make sure that air ci rculation around the wash ing machine is

not impeded by car pets, rug etc.

•

Never try to correc t any unevenness in the ﬂ oor using piec es of wood, cardboard or similar materials under the washin g machine.

•

If it is not possibl e to position the washing machine away from a gas cooker or coal burning stove, an insulat ion panel

(85x60cm) covere d with aluminum foil on the side facing the cooker or stove, must be inser ted between the two appliances.

•

The washing machine must not be inst alled in rooms where the temperature may drop below 0°C.

•

Please ensure that when the washing machine is installed , that a Service Technician can gain easy access in the event of a

breakdown.

•

Adjust all four feet using the transit bolt spanner provided to ensure that the appliance is stable, with 20mm clearnace between

the top of the washing machine and under side of the worktop.

CAUTION abou t the power cord

We recommend conne cting most appliances to a dedicated circuit which is protected by a mains fuse. That is, a single outlet

supplying po wer only to the appliance con cerned, without any additional out lets or branch circuits. Check the speciﬁ cations

of this owner‘s manual. Do not overload wall sockets. Overlo aded wall sockets, loose or damaged wall sockets or extension

cords, frayed powe r cords, damaged or cracked wir e insulation are dangerous. Any of these conditions could re sult in electric

shock or ﬁ re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it,

discontinue use of the applianc e, and have the cord replaced with an exact replacement par t by an authorized servicer. Protect

the power cor d from physical or me chanical abuse, such as being twisted, kinked, pinched, squashed in a ja mb of a door, or

walked upon. Pay particula r attention to plugs, wall outlets, and the point wh ere the cord exits the appliance.

CAUTION abou t location and moving

This equipment is not designed for mari time use or for use mobile installations such as caravans, aircr aft etc. Turn off the

stopcock if the machine is to be left for any leng th of time (e.g. if you are going on holiday), especially if there is no ﬂ oor dr ain

(gully) in the immediate vicinity. If relocating the applia nce use the original packing material. Packaging material (e.g. plastic ﬁ lm,

Styrofoam) can be dangerous for children. There i s a risk of suffocation! Kee p all packaging well away from children and do not

allow children to play inside the bowl as t hey may become trapped.

CAUTION abou t the ﬂ oor surfa ce

• T he installation surface must be clean, dry a nd level.

• In stall washing machine on a ﬂ at hard ﬂ oor. Poorly constructed timber base ﬂ oors c an contribute to excessive noise and

vibration.

• Pr oper placement and levelling of the washing machine ensure long, regular an d reliable operation.

• T he washing machine must be perfectly level and ﬁ rmly in position.

• I t must not “see-saw” across corners under load.

• T he installation surface must be clean, free fro m ﬂ oor wax and other lubric ant coatings.

• D o not allow the feet of the washing machine to get wet. If feet of the washing ma chine get wet, slipping may occur.

Name of product Front loading washing machine

Power supply 240 V~, 50 Hz

Size WxDxH mm: 600 x 640 x 850

Weight 72 kg

Max. Watt

2400 W (Wash) / 1700 W (D ry)

Capacity 8.5 kg

(Wash) /

4.5 kg

(Dry)

Water consumpti on 73 l (8.6 l / kg)

Permissible wat er pressure 1.0-8 bar (100-800k Pa)

Technical Spe ciﬁ ca tion

P/No. :MFL5 9755504

1 3

2 4

Turn of f the w ater

tap

Unsc rew the w ater

inlet hose

Pull o ut the w ater

inlet filter

Clea n the fi lter usi ng

a har d brist le brush

Pull o ut the

disp enser dr awer

Clea n the di spenser

drawe r under flow-

ing w ater

Clea n inside the

rece ss with an old

toot hbrush

Inse rt the d ispens er

drawe r

Clean ing th e wate r inlet fil ter

Clean ing th e disp enser drawer

Open the lowe r filte r

cove r and pul l out

the d rain ho se.

Unpl ug the d rain hos e

plug

Then open th e

filt er by tu rning to

the l eft

Remov e any

extr aneous matter

from the pump filter

Afte r clean ing, refi t the

drai n filter cap and tighte n it

by tu rning i t clock wise. and

inse rt the d rain pl ug

Tigh ten up th e inlet

hose

Clos e the low er

cove r

O nce you

have f inished

cleani ng, replac e

the dr awer and

run a rinse cycl e

witho ut laundr y or

soap.

Warnin g: Bef ore clean ing the wa shing mach ine interi or, unplug t he electr ical powe r cord to avoid the risk of el ectric

shock .

Ext erior

Prope r care o f your wa shing ma chine c an exten d its se rvice life.

The o utside of the ma chine c an be cle aned wi th warm water a nd

a neu tral no n-abrasi ve house hold det ergent. Immediat ely wip e

off a ny spil lage. Wip e with d amp clot h. Avoid s trikin g the su rface

with sharp o bjects. Never h ose down the mac hine!

Inter ior

Dry around t he wash ing mach ine door

open ing, flex ible gas ket and door gla ss.

Run w ashing m achine t hrough a complet e

cycl e using h ot water. R epeat pr ocess i f

nece ssary.

Clean ing in general

Impor tant: D o not use methyla ted spir its, so lvents or simila r produ cts.

Safe ty in struc tions for use

To minimize the risk of ﬁ re withi n the inner bowl, the followin g should be observed:

• Items tha t have been spotted or soaked with vegetable or c ooking oil constitute a ﬁ re hazard and should not be

placed in a tumble dryer.

Oil-affected items ca n ignite spontaneously, especially when exposed to heat s ources Such as in a tumble dryer.

The items become warm, causin g an oxidation reaction in the oil. Oxidation creates he at. If the heat cannot

escape, the items can beco me hot enough to catch ﬁ re. Piling, stack ing or storing oil-affected items can prevent

heat from escaping and so cre ate a ﬁ re hazard.

If it is unavoidable that fabric s that contain vegetable or cooking oil or have been c ontaminated by hair care prod-

ucts be placed in a tumble dr yer they should ﬁ rst be washed in ho t water with extra detergent-this will reduce,

but not eliminate, the hazard. Th e ‘cool down’ cycle of tumble dryers should be used to reduce t he temperature

of the items. They should not be remo ved from the tumble dryer or piled or stacked while hot .

• Items tha t have been previously cleaned in, washed in, soaked in or spot ted with petrol/gasoline, dry-cleaning

solvents or other ﬂ ammable or explosive su bstances should not be placed in a tumble dryer.

Highly ﬂ ammable substances commonly u sed in domestic environments include acetone, denature d alcohol,

petrol/gasoline, kerosen e, spot removers (some brands), turpentine, waxes and wa x removers.

• Items co ntaining foam rubber (also known as latex foam) or similarly te stured rubber like materials should not be

dried in a tumble dryer on a heat se tting.

Foam rubber materials ca n, when heated, produce ﬁ re by spont aneous combustion.

• Fabric s ofteners or similar products should not be used d uring a drying cycle, to eliminate the effects of st atic

electricity unles s this practice is speciﬁ cally recommended by the manufact urer of the fabric softener or product.

• Underg arments that contain metal reinforcements sh ould not be placed in a tumble dryer.

Damage to the tumble dryer ca n result if metal reinforcements come loose during d rying.

When available a drying rac k could be used for such items.

• Plastic articles su ch as shower caps or babies waterproof napkin cove rs should not be placed in a tumble dryer.

• Rubber-backed ar ticles, clothes ﬁ t ted with foam rubber pads, pillows, rubber boot s and rubber-coated tennis

shoes should not be placed in a tumble d ryer.

Cleaning and Maint enance

Clean ing th e drai n pump fil ter

n The external hot water supp ly MUST NOT exceed 70 deg C

n Permissible cold water temperat ure : 4-25˚C

n No further back ﬂ ow protection required fo r connection to the water supply.

e The appearance and sp eciﬁ cations may be varied wi thout notice to lmprove the units quality.

e Speciﬁ cations subject to change b y manufacturer.

Installatio n of drain hose

• The drain hos e should not be placed higher than 100 cm above the ﬂ oor.

• Proper secur ing of the drain hose will protect the ﬂ oor from damage due to any water leak age.

• If the drain ho se is too long do not force back into the washing machine. This will cau se abnormal

noise and cause the machine to malfu nction and leak.

Electrical connectio n

1. Do not use an extension cord or double ad apter.

2. Have damaged supply cords rep laced by the manufacturer or its service agent s or a similarly qualiﬁ ed

person to prevent danger.

3. Always unplug the machine and tur n off the water supply after use.

4. Connect the machine to an ear thed socket in accordance with current wir ing regulations.

5. The appliance must be pos itioned so that the plug is easily accessible.

• Repairs to the w ashing machine must only be carried out by qualiﬁ ed personnel. Repa irs carried out by inex-

perienced persons may caus e injury or serious malfunctioning. Cont act your local service centre.

•

Do not install your washing mac hine in rooms where temperature below freezing may occu r. Frozen hoses may

burst under pressure. The ele ctronic control unit may become unreliable at tempera tures below freezing point.

• If the appliance is delivered in the winter months and temperat ures are below freezing: Leave the washing

machine standing at room temper ature for a few hours before putting it into operat ion.

Rattling and cl anking noise Extraneous o bjects such as coins or safety pins maybe in drum or p ump.

Thumping sound Heavy wash loads may prod uce a thumping sound. This is usually normal.

Vibrating noi se Have all transit bolts and p acking been removed?

Water leaks. Check and tighten hose connections. Unclog dr ain pipe. Contact plumber if necessary.

Excessive suds Too much dete rgent or unsuitable detergent.

Washing machine does n ot start Power cord may not be plugged in or connection may b e loose.

Washing machine won’t s pin Check that the door is shut .

Check that foreign object s may be blocking the drain causing the water not to drain out .

Door does not ope n Once started, th e door can not be opened for safety reasons.

At the end of the cycle or when St art Pause is pressed, wait one or two minute s before opening the door to

allow the electric locking me chanism time to release.

Troubleshooting

• Water supply is not adequate in area

• Water supply taps are not completely

open.

• Water inlet hose(s) are kinked.

• The ﬁ lter of the inlet hose(s) are

clogged.

Check another tap in the house.

Fully open tap.

Straighten hose(s).

Check the filter of the inlet hose(s).

• Drain hose is kinked or clogged.

• The drain ﬁ lter is clogged.

Clean and straighten the drain hose.

Clean the drain filter.

For more detailed information, please

refer to “Cleaning the drain pump filter”

• Load is too small.

• Load is out of balance.

• The appliance has an unbalance detection

and correction system. If individual heavy

articles are loaded (ex. bath mat, both

robe, etc.), this system may stop spinning

or even interrupt the spin cycle altogether.

• If the laundry is still too wet at the end of

the cycle, add smaller articles of laundry

to balance the load and repeat the spin

cycle. Floor is unstable.

Feet are not adjusted

Add 1 or 2 similar items to help balance

the load.

Rearrange load to allow proper spinning

• Is the door opened or not

completely closed?

Close the door completely.

If the " " does not clear, call for

service.

Unplug the power plug and call for

service.

• Water overﬁ lls due to the faulty water

valve.

Close the water tap.

Unplug the power plug.

Call for service.

Restart the cycle.

• Water level sensor has malfunctioned.

• Over load in motor.

• The washer experienced a power

failure.

Turn the tap on.

If “ ” is not released, unplug

power plug and call for service.

• Check water supply.

Call for service.• Water leaks

CAUTION

This appliance is not intended fo r use by persons (including children) with reduced phys ical, sensory or mental

capabilities, or lack of exper ience and knowledge, unless they have been given super vision or instruction concer-

ning use of the appliance by a perso n responsible for their safety.

The ﬂ oor should be a solid surface.

Adjust the feet so that the machine

does not rock from side to side or front

to back.

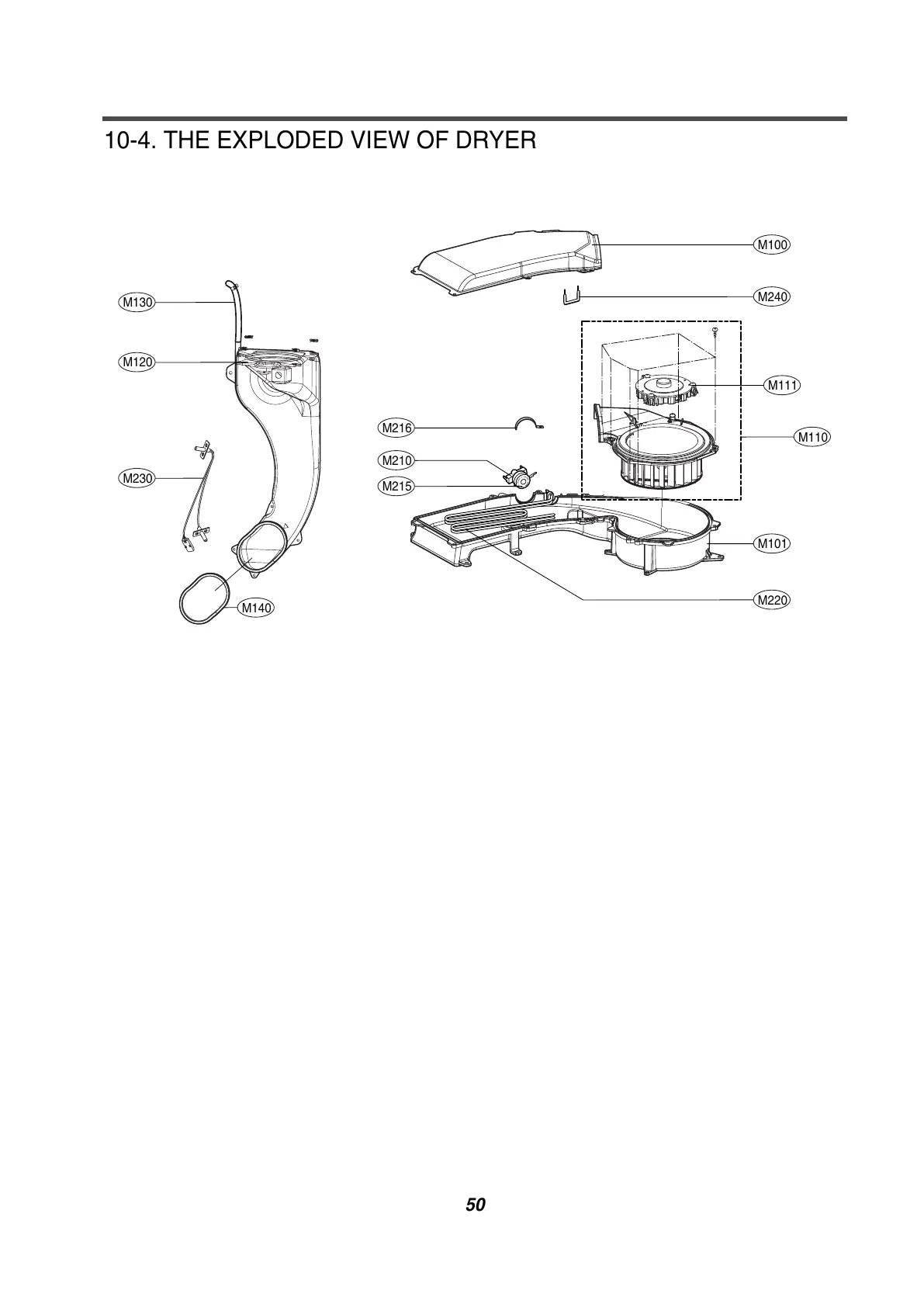

LG WD14030RD - The Exploded View of Dryer

Table of Contents

Other manuals for LG WD14030RD

Related product manuals
