9-1. FILTER ASSEMBLY (LINE FILTER)
9. COMPONENT TESTING INFORMATION
When Resistance (Ohm) checking the Component, be sure to turn the power off,
and do voltage discharge sufficiently.

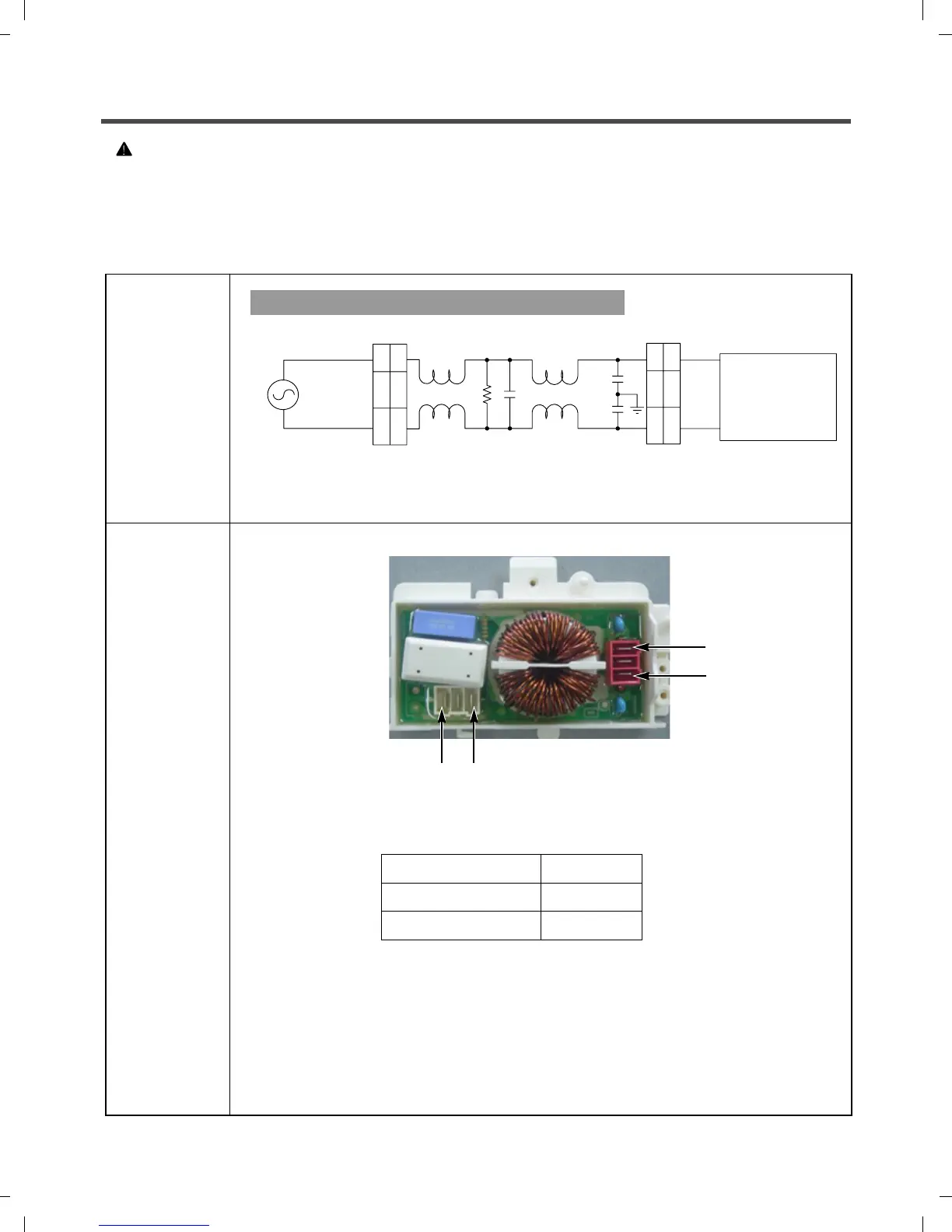

Wiring
diagram
Circuit in the MAIN PWB / Wiring Diagram
Vac
MAIN PWB
ASSEMBLY
WH RD
LI L2
RI CI
C2
C3
11
22
33
33
22
11
Test
points
and
Result
Test Points Result
WH (1) to RD (3)
WH (3) to RD (1)
0 Ω
0 Ω
(1)
(3)
(3)
(1)
RD
WH
