10. DISASSEMBLY INSTRUCTIONS
43

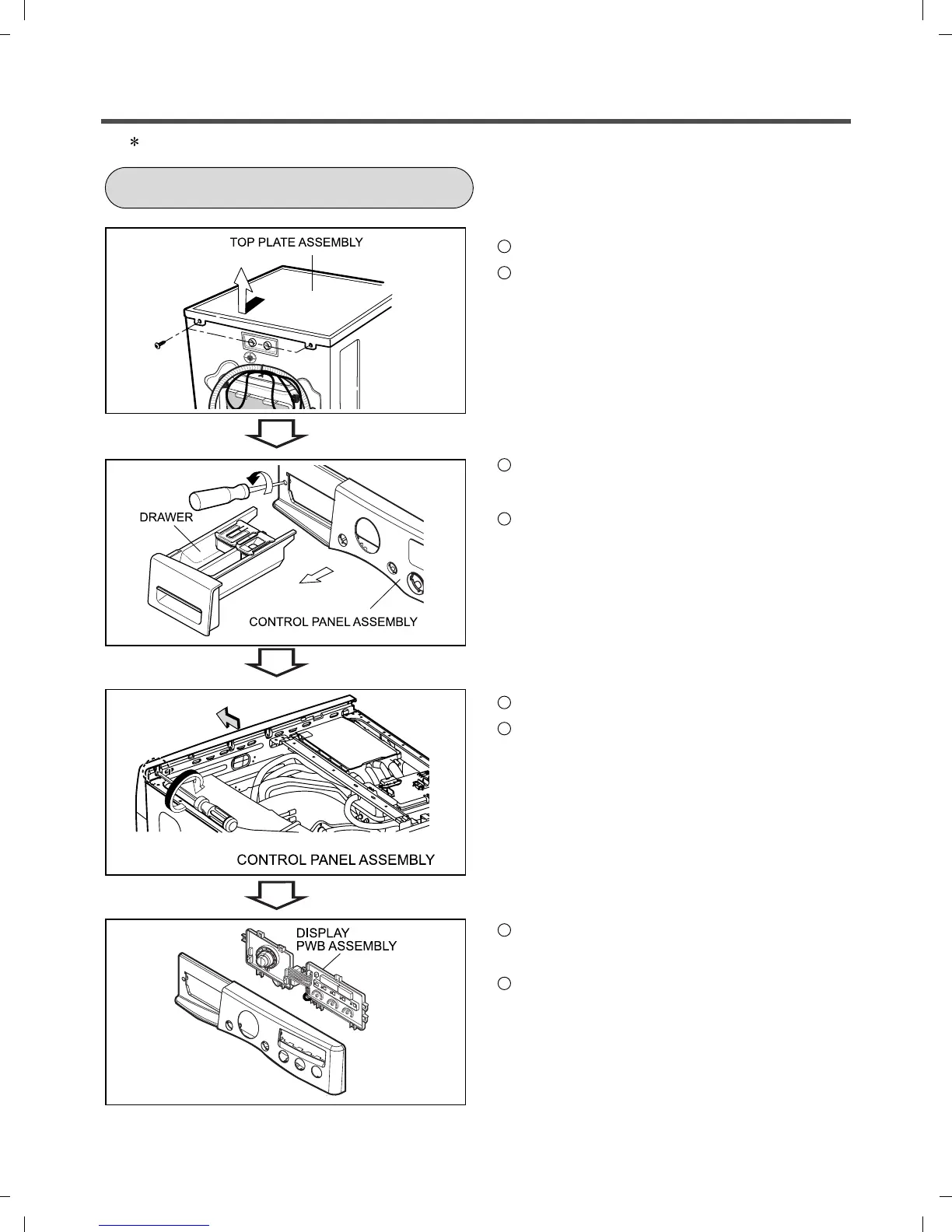

CONTROL PANEL ASSEMBLY
1
Unscrew 2 screws on the back of the top plate.
Be sure to unplug the machine before disassembling and repairing the parts.
2
Pull the top plate backward and upward as shown.
4
Pull out the drawer and unscrew 2 screws.
5
Remove one screw.
8
Disassemble the Display PWB Assembly.
6
Lift the side the control panel assembly and
pull it out
7
Unscrew the 8 screws from the control panel
assembly.
3
Disconnect the Display PWB assembly connector
from trans cable.
To Next Page
