8) Disassembly of Rotor and Stator

■ Use a wrench (M14) to remove the nut that

connects the rotor to the shaft.

(The torque should be 250 kgf/cm or 88 foot-

pounds.)

■ Remove the rotor by pulling it straight off the

splined shaft.

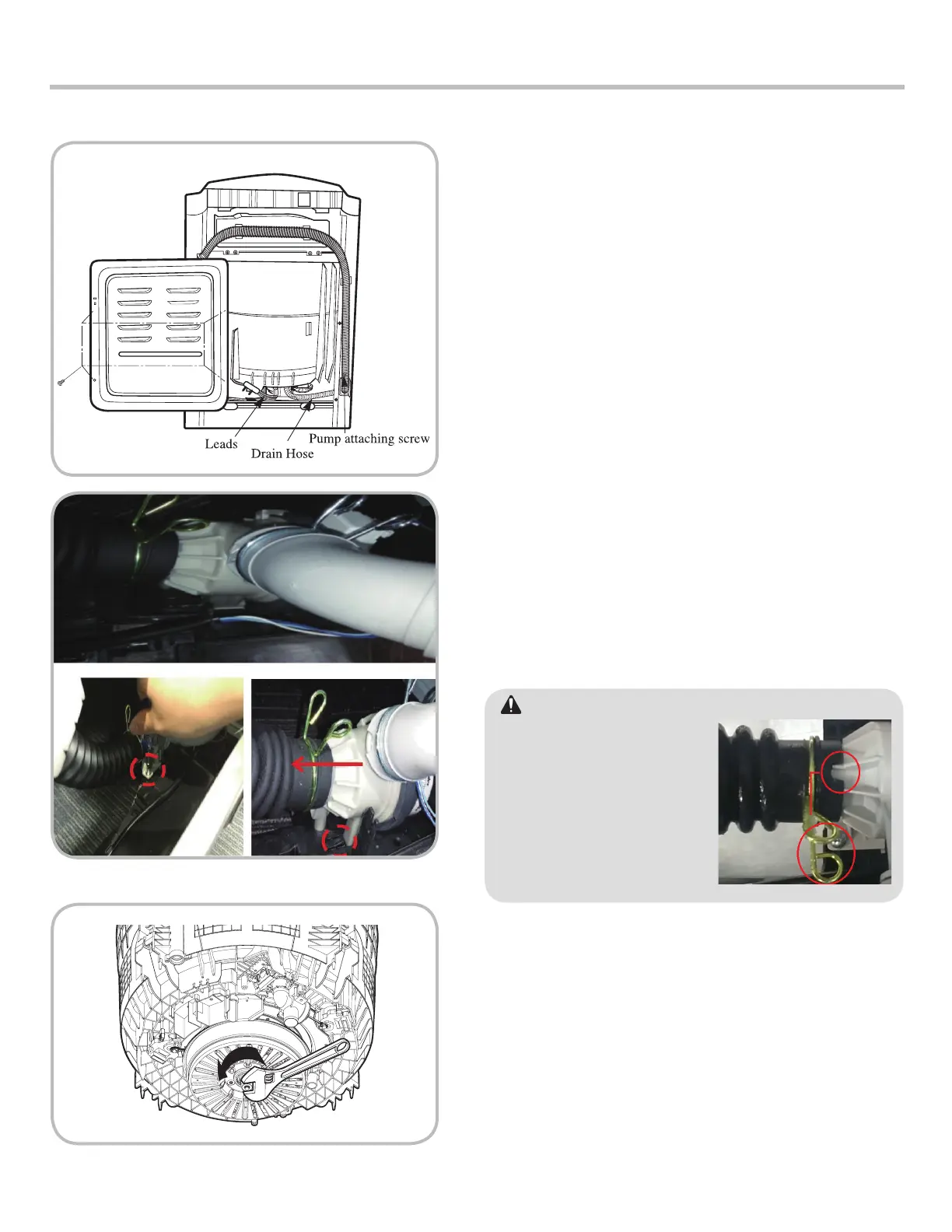

7) Disassembly of the Back Cover and

Drain Pump

■ Remove the screws that attach the back cover and

take it off.

■ Disconnect the leads and the drain hose from the

drain pump.

■ When remove the pump attachment screws on the

bottom of cabinet, tilt the washing machine.

■ Remove the lead connector.

■ After push the hooks near pump legs, remove the

BLDC Pump

Holder should be assembled

like next (right) pictures.

The angle between guide

part and holder should be 90

deg.

Caution
