Liebert GHT MT+ - Transformer Connection; External Battery Pack Connection

19

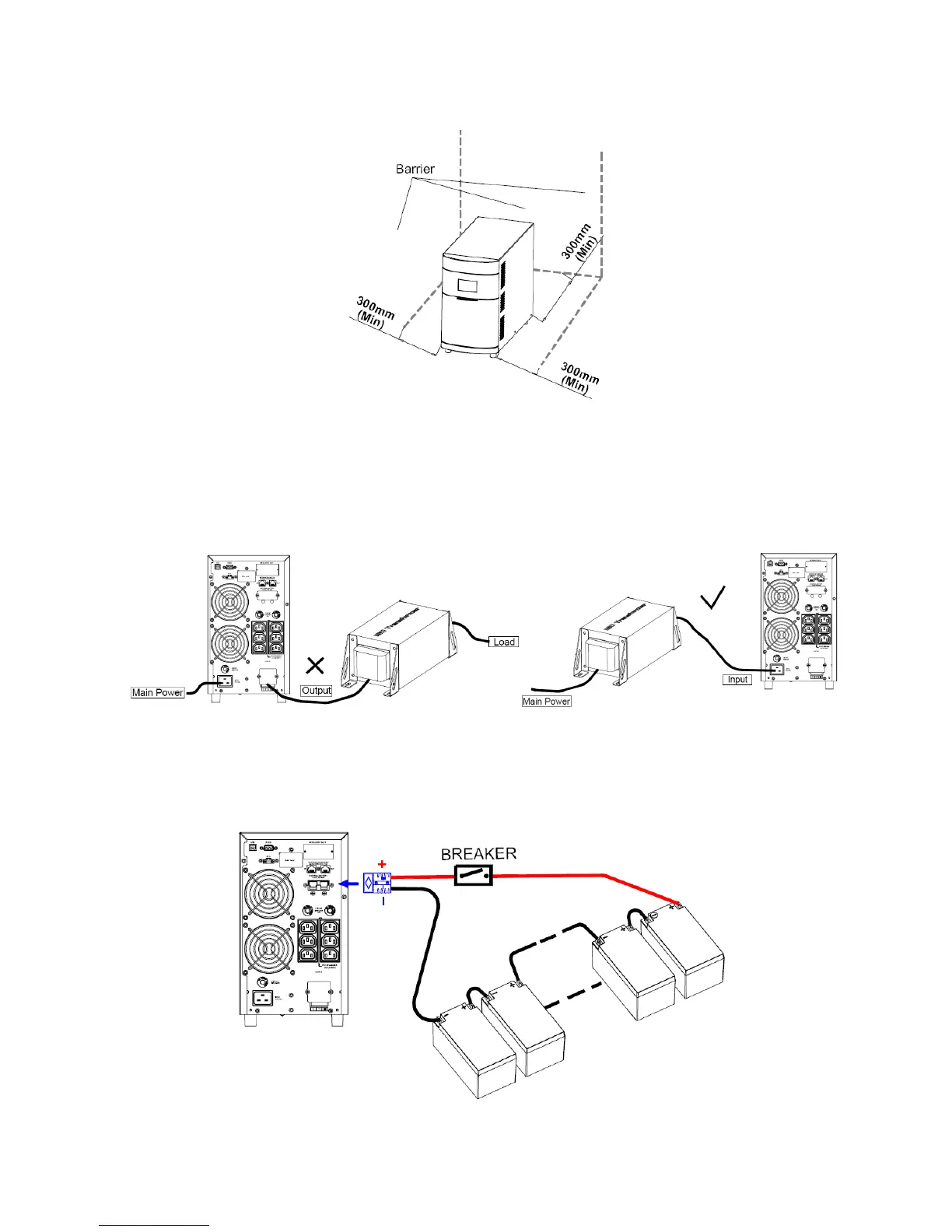

5. Place UPS:
It’s equipped with fan for cooling. Therefore, place the UPS in a well-ventilated area. It’s
required to maintain minimum clearance of 100mm in the front of the UPS and 300mm in
the back and two sides of the UPS for heat dissipation and easy-maintenance.
6. Connect To Transformer
Please do NOT connect transformer to output of the UPS. Otherwise, it will cause UPS
internal fault and force UPS to enter to fault mode. Please connect transformer to input of
the UPS.
7. Connect to External Battery Pack
When connecting external battery packs, please be sure to connect polarity correctly.
Transfor
mer
Transfor
mer
