HIMOD−C
2 − Positioning

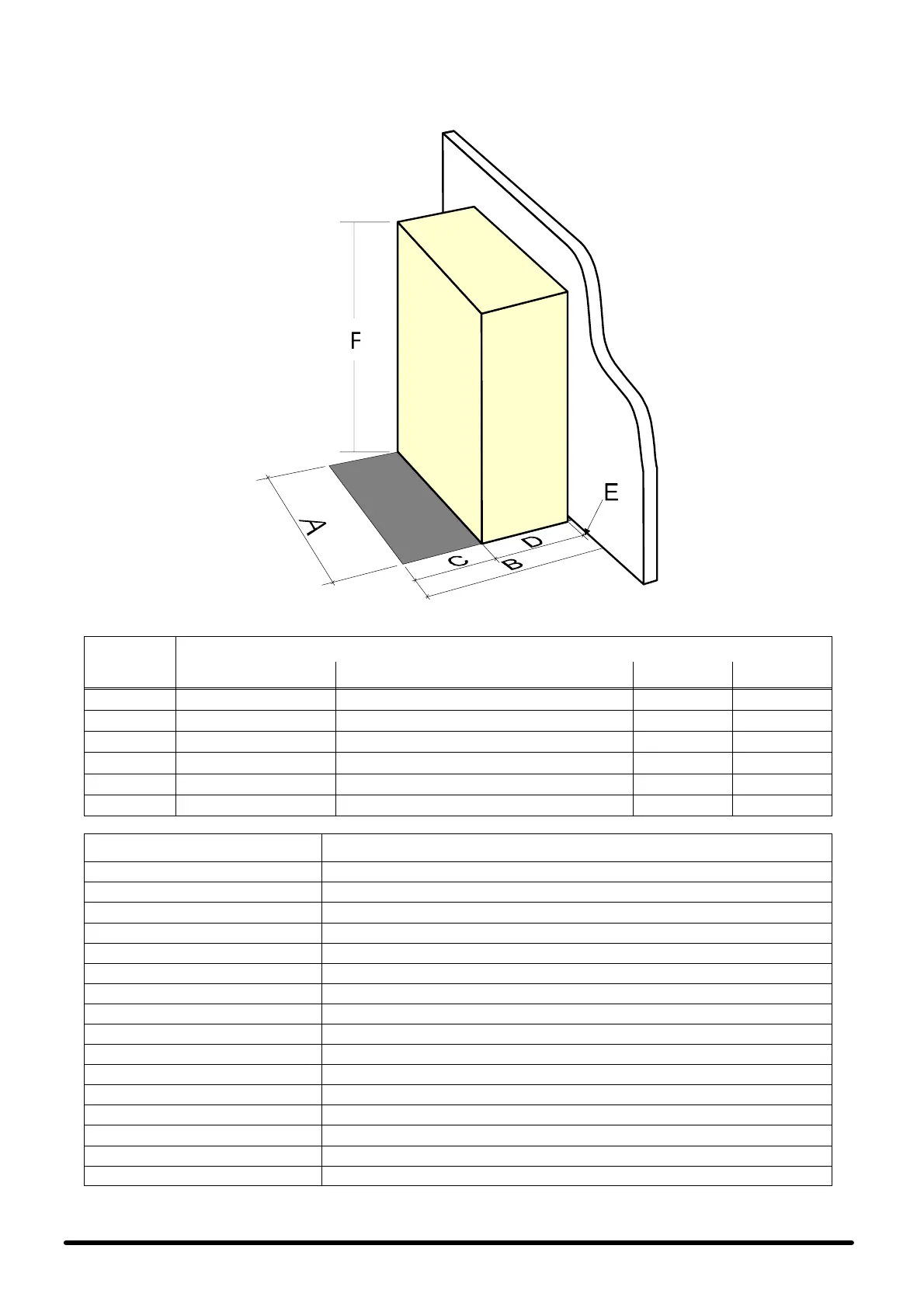

2.1 − Clearance areas and main dimensions
MODEL
27−45 O/UC 55−65−80−85 O/UC 90−10 UC 12−14 UC
A [mm] 1000 1750 2050 2550
B [mm] 1740 1740 1740 1740
C [mm] 800 800 800 800
D [mm] 890 890 890 890
E [mm] 50 50 50 50
F [mm] 1950 1950 1950 1950
MODEL WEIGHT (kg) − standard unit
27 UC 290
45 UC 340
55 UC 495
65 UC 555
80 UC 590
85 UC 610
90 UC 660
10 UC 670
12 UC 830
14 UC 840
27 OC 290
45 OC 340
55 OC 495
65 OC 555
80 OC 590
85 OC 610
