HIMOD−C
3 − Installation
ATTENTION: The conditioner must never be installed out of doors.

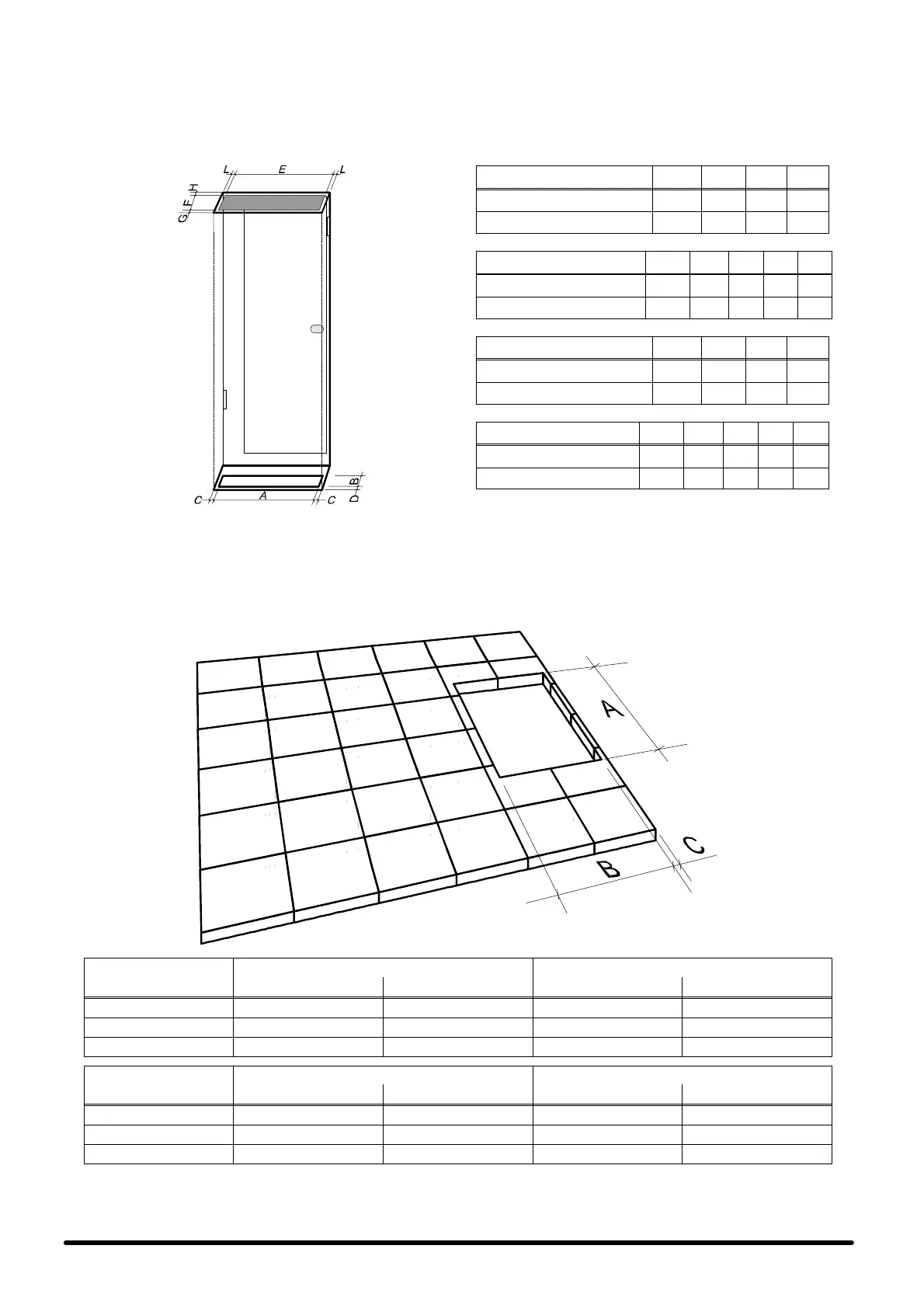

3.1 − Air inlet and outlet
Look−through rear view
A B C D
27−45 C − under
910 778 40 52
55−65−80−85 C − under
1580 778 80 52
E F G H L
27−45 C − under
910 804 43 43 45
55−65−80−85 C − under
1660 804 43 43 45
A B C D
90−10 C − under
1960 297 40 483
12−14 C − under
2460 297 40 483
E F G H L
90−10 C − under
1960 799 43 46 45
12−14 C − under
2460 799 43 46 45
ATTENTION: About the upflow (over) units, the extraordinary removal of the fan (560 mm blade diameter) is per-
mitted only from the top of the unit.
Please keep it on mind during the possible ducting design and manufacturing.
3.2 − Hole in raised floor
27−45 C 55−65−80−85 C
without base frame with base frame without base frame with base frame
A [mm] 900 1000 1650 1750
B [mm] 810 885 810 885
C [mm] 93 48 93 48
90−10 UC 12−14 UC
without base frame with base frame without base frame with base frame
A [mm] 1970 2050 2470 2550
B [mm] 810 885 810 885
C [mm] 93 48 93 48
CAUTION: For "UNDER" units installed on raised floor, inhibit inappropriate access to the unit from the base to
not−authotized staff: i.e. fixing the floor panels up to 850 mm from the unit.
