Liebert HPSE User Manual

Installation
9--8
Liebert HPS---PD--- 272965---20.11.2009

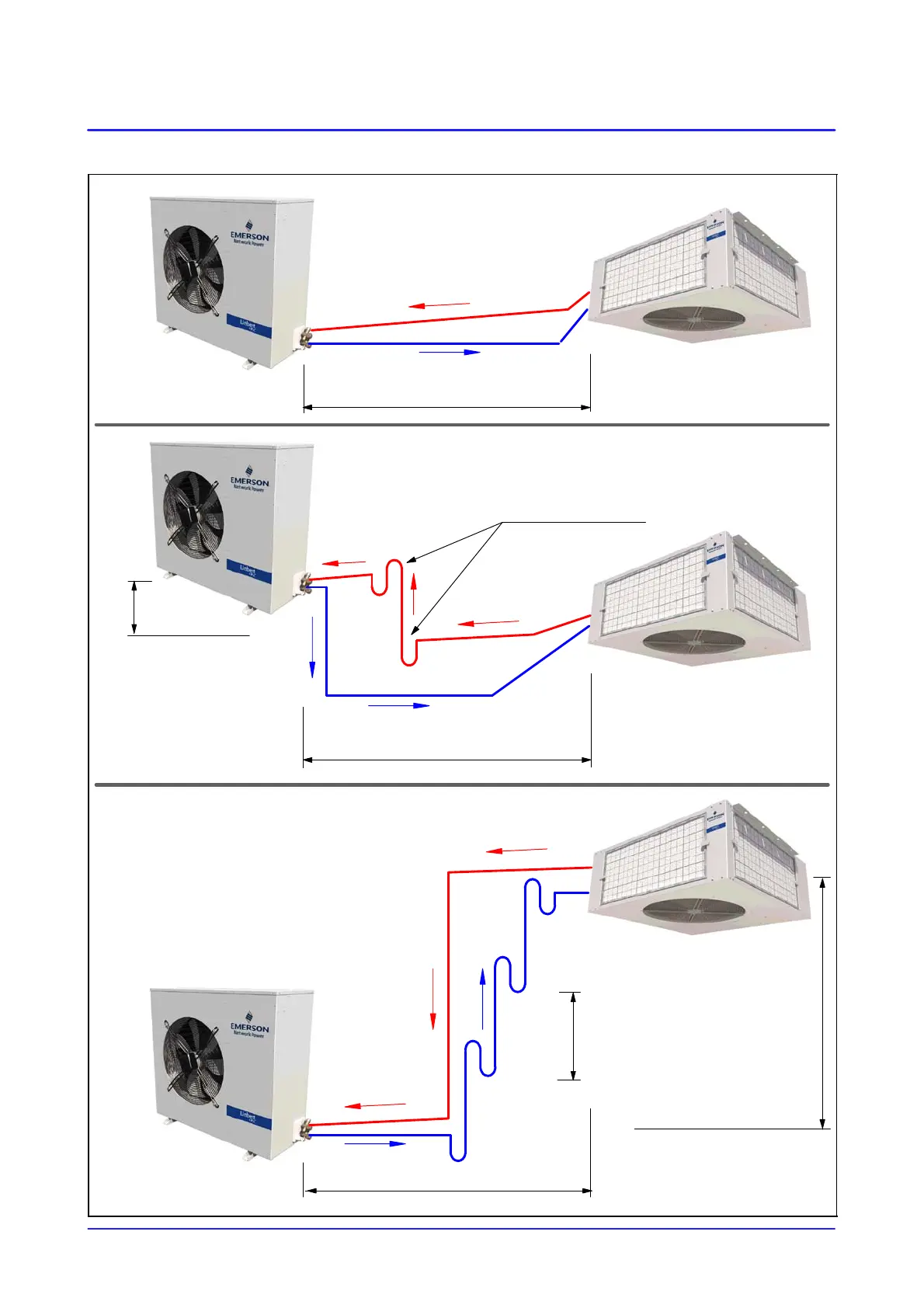

F i g . 2 2 --- Liebert HPS (HPSE + HPSCxx0/A) s uggested refrigerant connections
HPSE
(Internal Unit)
Gas pipeline
(Sloping 1%)
Liquid/gas pipeline
10 m max. horizontal equivalent length
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
HPSE
(Internal Unit)
HPSE
(Internal Unit)
7 m max. horizontal equivalent length
A
5mmax.vertical
distance between
two syphons
3mmax.
vertical distance
Syphons (obligatory)
NOTE:
Max. equivalent length for
refrigerant line A + B =10m
HPSC
(External Unit)
Gas pipeline
(Sloping 1%)
HPSC
(External Unit)
HPSC
(External Unit)
Gas pipeline
(Sloping 1%)
B
Liquid/gas pipeline
Liquid/gas pipeline
