Liebert HPSE User Manual

Installation
9--9
Liebert HPS---PD--- 272965---20.11.2009

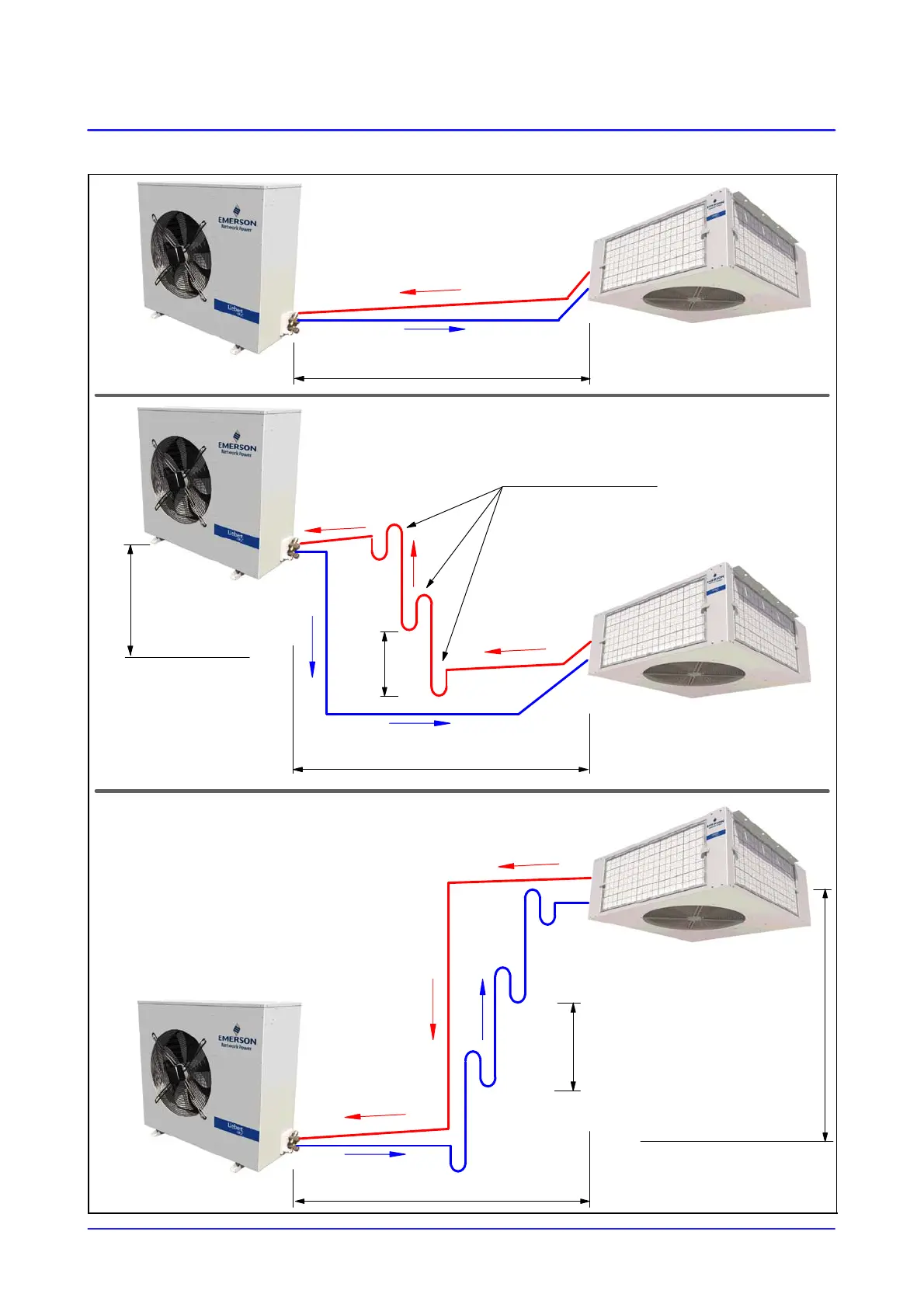

F i g . 2 3 --- Liebert HPS (HPSE + HPSCxxL, Long piping) suggested refrigerant connections
5mmax.vertical
distance between
two syphons
5mmax.vertical
distance between
two syphons
HPSE
(Internal Unit)
Gas pipeline
(Sloping 1%)
50 m max. horizontal equivalent length
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
HPSE
(Internal Unit)
HPSE
(Internal Unit)
30 m max. horizontal equivalent length
30 m max. horizontal equivalent length
20 m max.
vertical distance
20 m max. vertical distance
Syphons (obligatory)
HPSC
(External Unit)
HPSC
(External Unit)
HPSC
(External Unit)
Liquid/gas pipeline
Liquid/gas pipeline
Liquid/gas pipeline
