5. ASSEMBLY INSTRUCTIONS

NOTE: Before assembly ensure there is enough space around the item. Some nuts and bolts may be already

attached to the machine

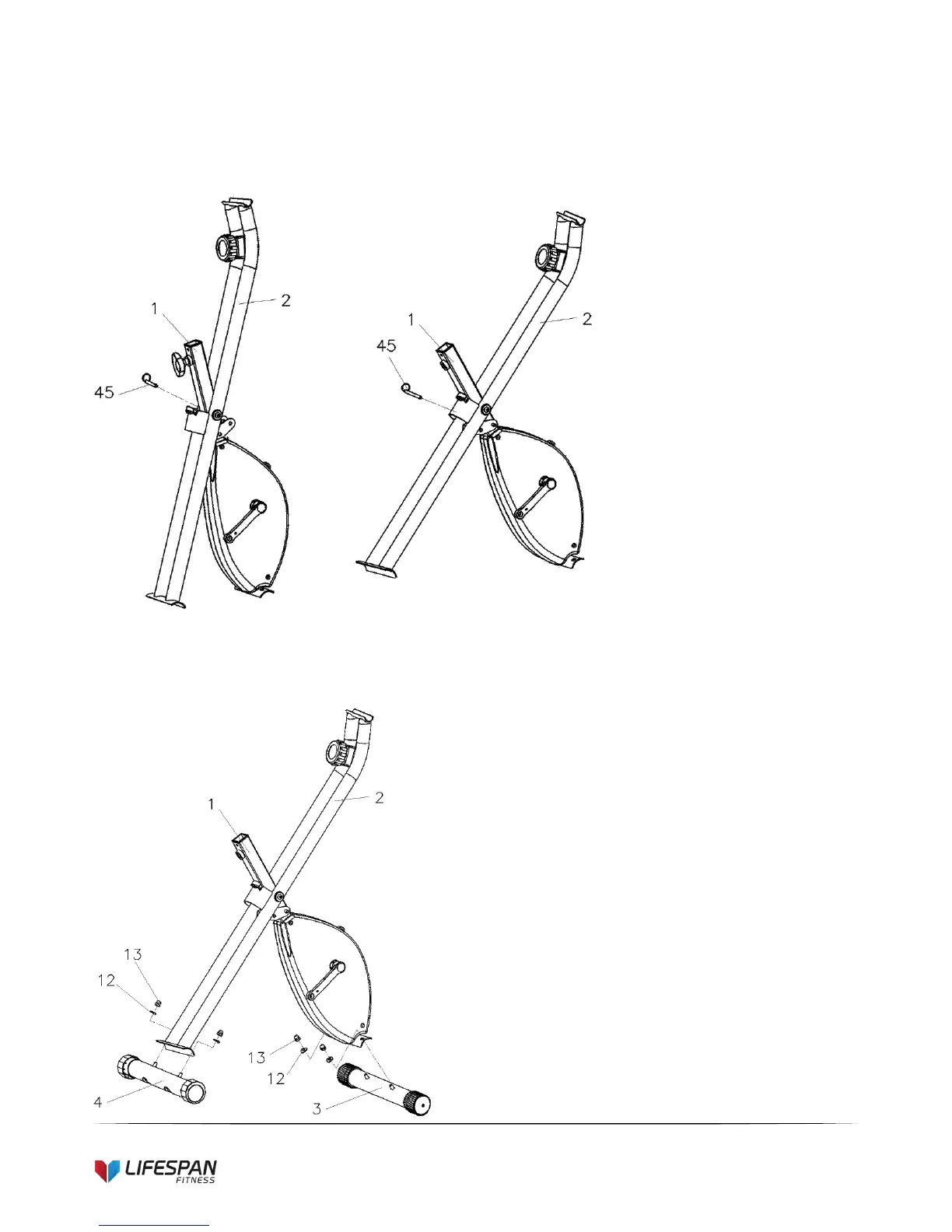

STEP 1

STEP 2

1. Pull out the spring pin (45) from front support tube (1), unfold the frame and fix the spring pin

according to the hole (45) as below.

1. Secure the rear bottom tube (4) and front

bottom tube (3) to front support frame (1)

and main frame (2) using nut (13) curved

washer (12), as shown in diagram.
