Assembling Your Treadmill
Step 5: Console Harness Attachment

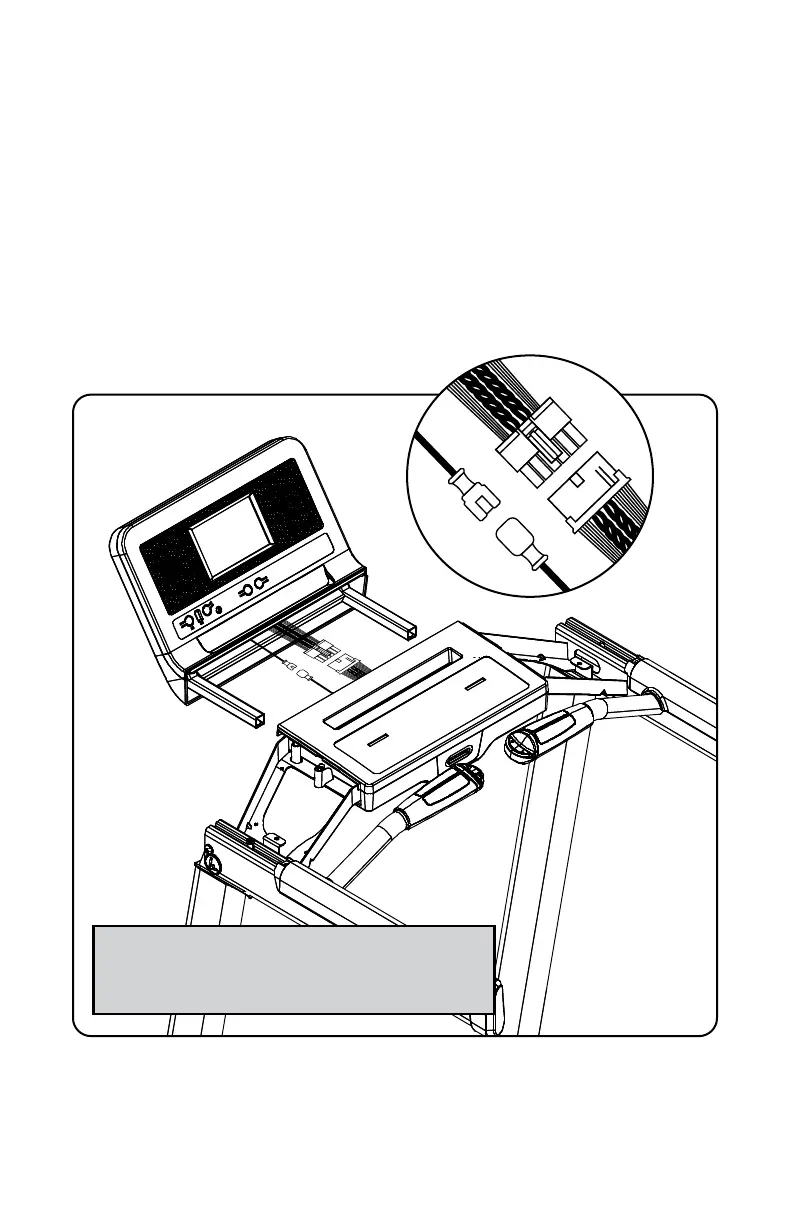

A. Slide the square mounting tubes (protruding from the front of the console(5))
partially into the console mount as shown in the gure to the left. Do not
slide the console all the way in as wire connections need to be made.
B. Securely attach the 12-pin cables together, and the grounding wires
together.
C. Carefully tuck the wires into the bottom or top console housing.
Note:
Plug the cables together so that
the clips are on the same side.
To Next Page
