15
Assembling Your Treadmill

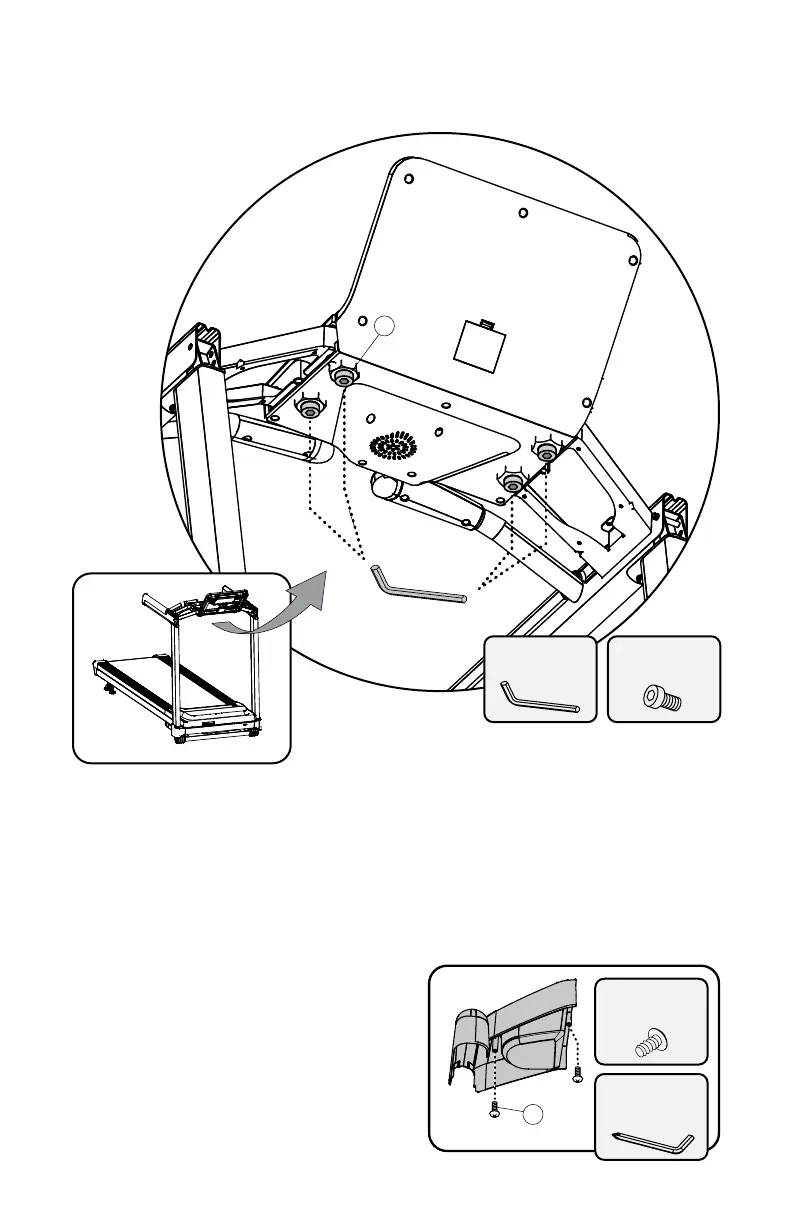

View from beneath
Pre-installed
14
M8 x 15L
(x4)
6mm Allen
Wrench
Step 6: Securing Console
A. Slide the console fully into the mounting brackets, being careful not to
damage any wires. If the console does not want to slide in completely,
loosen the four pre-installed M8 x 15L bolts (14) with the provided 6mm
Allen wrench to eliminate any friction.
B. Once the console is fully installed, tighten the four M8 x 15L Bolts.
Step 7: Cup Holder Attachment
A. Remove the two pre-installed M4 x 8L
screws (15) with the provided Phillip’s
head screwdriver from the bottom of
the right cup holder.
15
Pre-installed
5mm Allen
Wrench w/
Phillips
M4 x 8L
(x2)
A
To Next Page
