LifeSpan X-22 - Step 2: Handlebar Post and Shield Installation

7
X-22

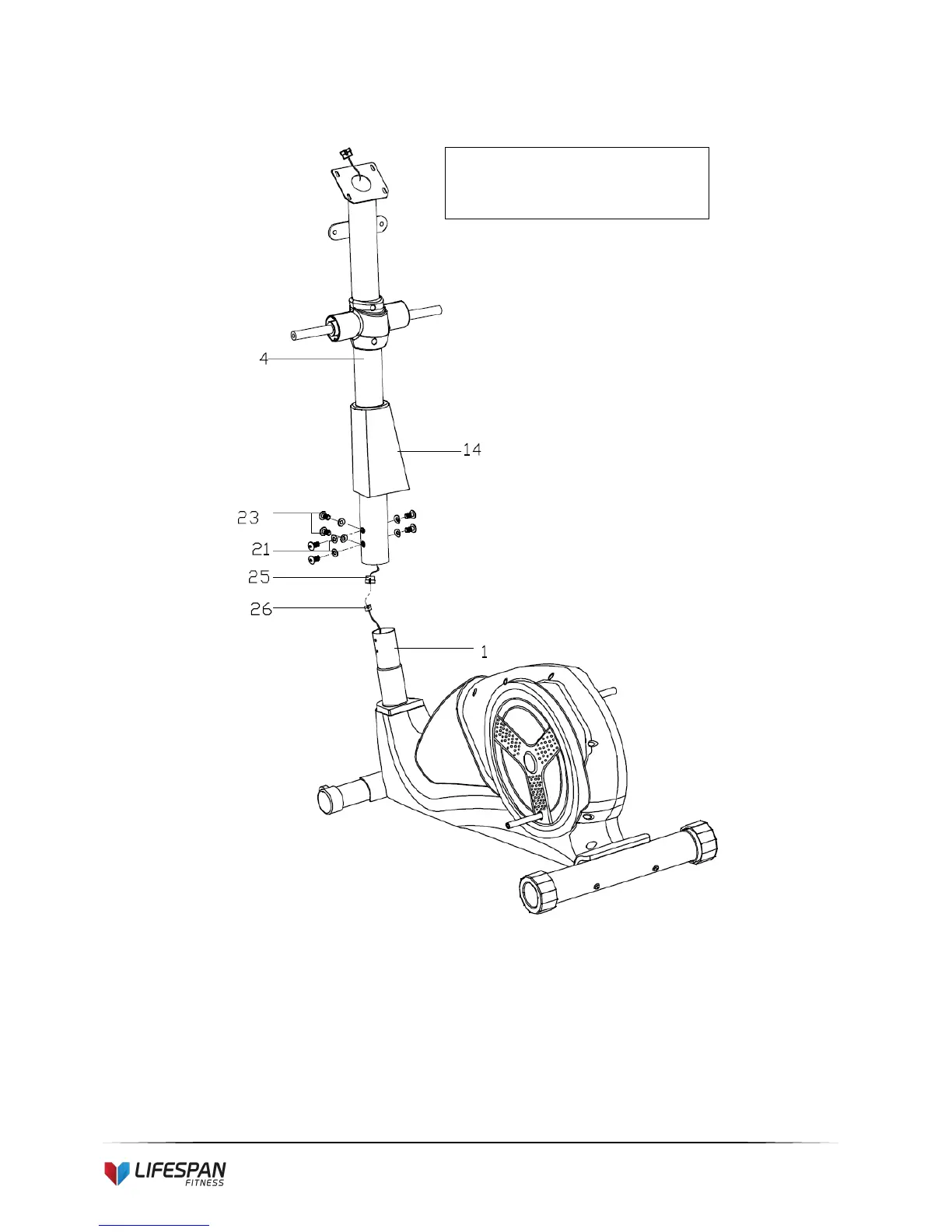

STEP 2:
1. Insert the front shield (14) into the handlebar post (4).
2. Connect the sensor wire (26) well with extension wire (25)
3. Fix the handlebar post (4) to the main frame (1) with Allen bolt (23) and arc washer (21).
Note: Please exercise caution not
to crush the main cable during
assembly
