2 Technical overview
2.1 Assembly possibilities
Based on the building block principle that enables easy assembly, the system enables the unproblematic conversion
of the electric chain hoist from a single chain fall version to a double chain fall version. The hoists can be used in a
fixed design, with manual or electric trolleys. Large lifting and operating heights are possible.
Electric trolley
Hook suspension
Hoisting gear
Hook tackle
Hook block
Control pendant
Suspension eye
Single hole
suspension eye
Mains cable
with switch
Lift limiter
Chain box with
safety chain

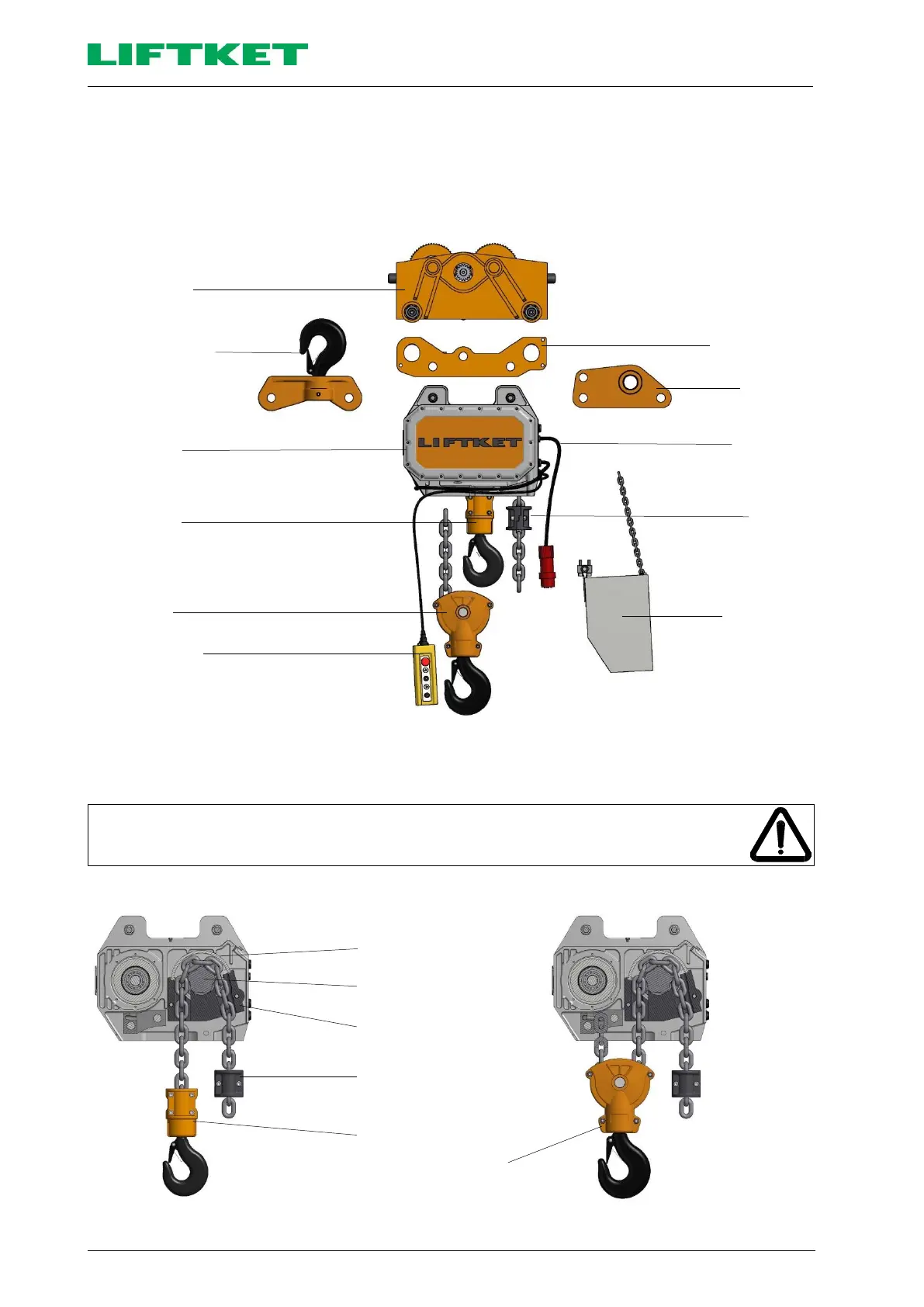

Diagram No. 1: Assembly possibilities
2.2 Fitting the load chain
CAUTION
Use only original chains from the manufacturer! These chains meet the high
requirements for load and service life.
Single fall version
Double fall version
Chain hold-down
Chain driving shaft
Chain sprocket
Chain guide
Lift limiter
(end-position stop)
Hook tackle
Hook block
Diagram No. 2: Position of the load chain
