Liftket B13 - Sectional View; Explanation of Type Designation

9

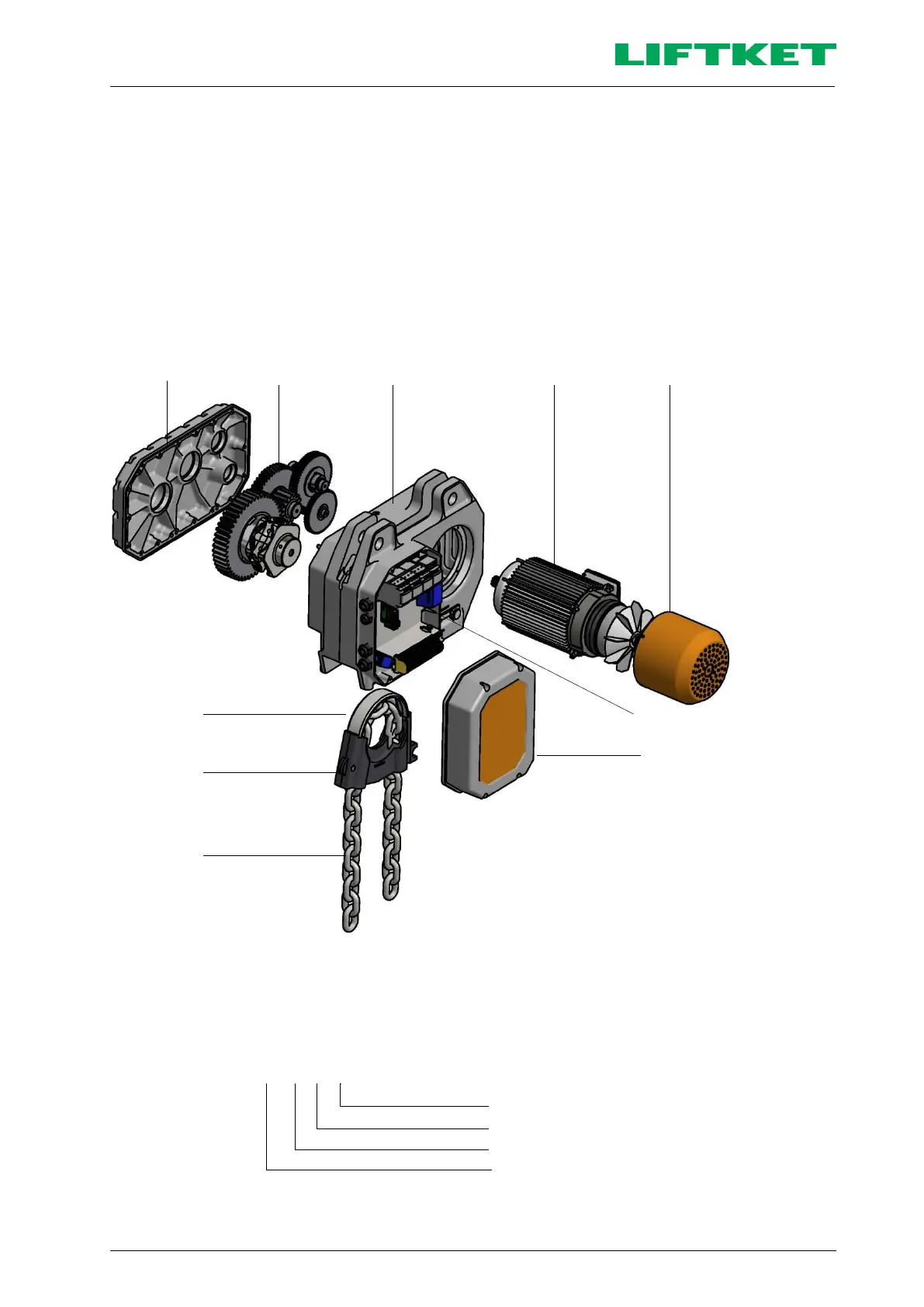

2.3 Sectional view
1
Casing
2
Drive gear
3
Gear cover
4
Load chain
5
Chain guide
6
Chain hold-down
7
Low voltage control
8
Cover for low voltage control
9
Motor with brake unit and fan
10
Fan cover
3 2 1 9 10
Diagram No. 3: Electric chain hoist sectional view
2.4 Explanation of type designation
Example: Model 13
Type 12500 / 2 - 2.8 / 0.7
Slow lifting speed in m/min
Main lifting speed in m/min
Number of falls
Capacity in kg
The technical data are contained in the documentation provided with the hoist.
7
8
6
5
4
