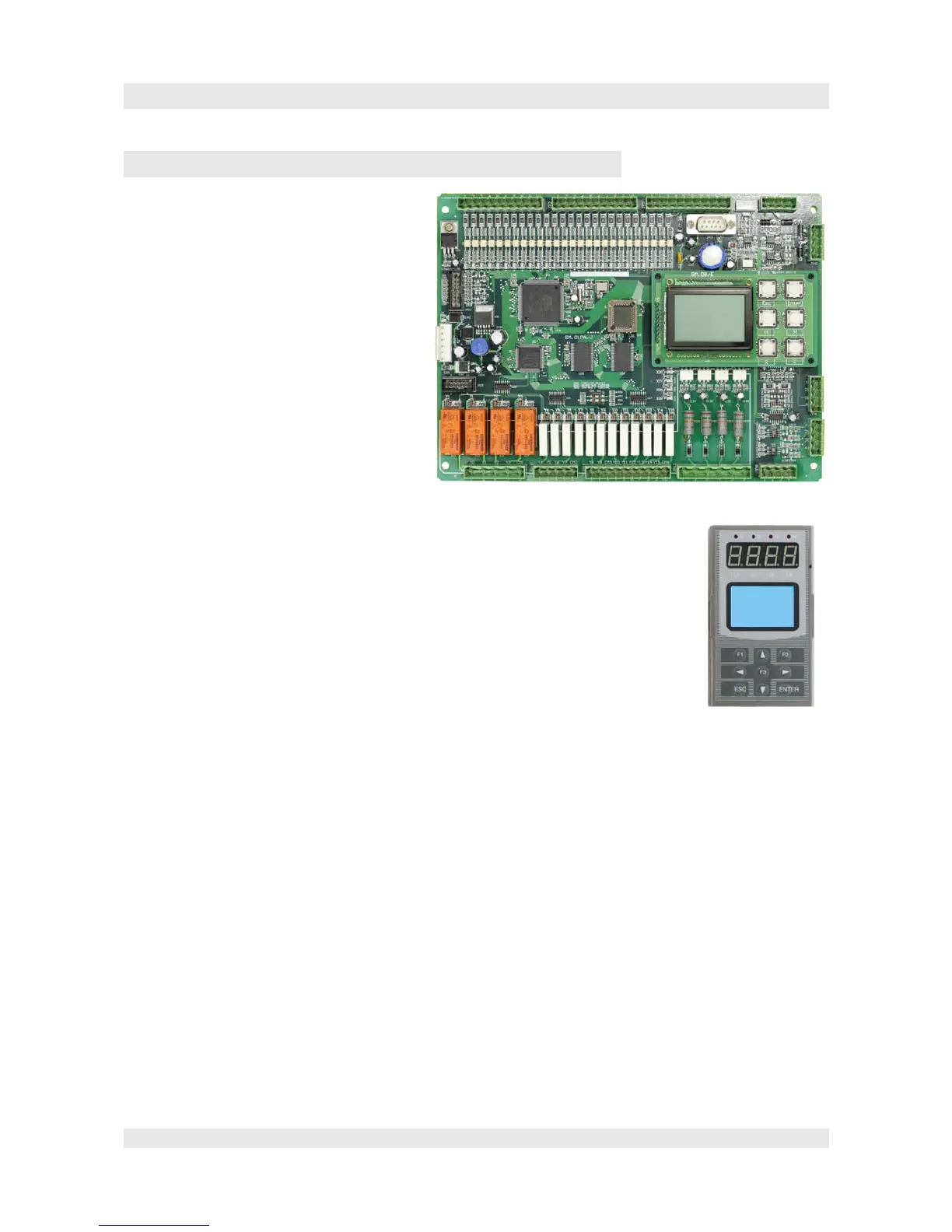

Manual F5021B - F5021 Main board
1. F5021 Main board
Product characteristics
32bit processor ARM7 industrial
standard
Doubble-processor-architektur for
extended security needs
2x CAN interfaces separate for internal
and external communication
high EMV-stability (EFT-4000V)
high ESD- stability (ESD 8000V)
certified for EN81, GB7588, CE
Functionallity area
For rope- and hydraulik-lifts
A lot of functions possible to parametize for nearly all kinds of lifts.
Lifts from 0,63m/s to 4m/s.
Up to 64stops, also with selective door controlling
Replace the 16bit-board F2021 (longtime supply with replacement parts is secured)
Analoge or digital triggering of the frequency inverter respectively chopper.
Shaftdetection via incremental shaft encoder (RS422, HTL, SSI)
Duplex groupe function integrated, possible to exted up to group times 8
Weight compensation at start-up with according weight measuring system.
ID-card system (credit card -transponder) possible to integrate.
Remote control locally and globally
Graphical LCD direct on board or a separate controller.
Description of Drive cycle, on- and off- activities, status information etc.
Error information memory (20 digits) with real-time coverage and full text advice.
As standard are 2 cabine doors, possible to expand for 3 doors.
Lot of special features, e.g. automatical evacuation with choose of direction conditioned to the weight.
