Manual F5021B - System overview

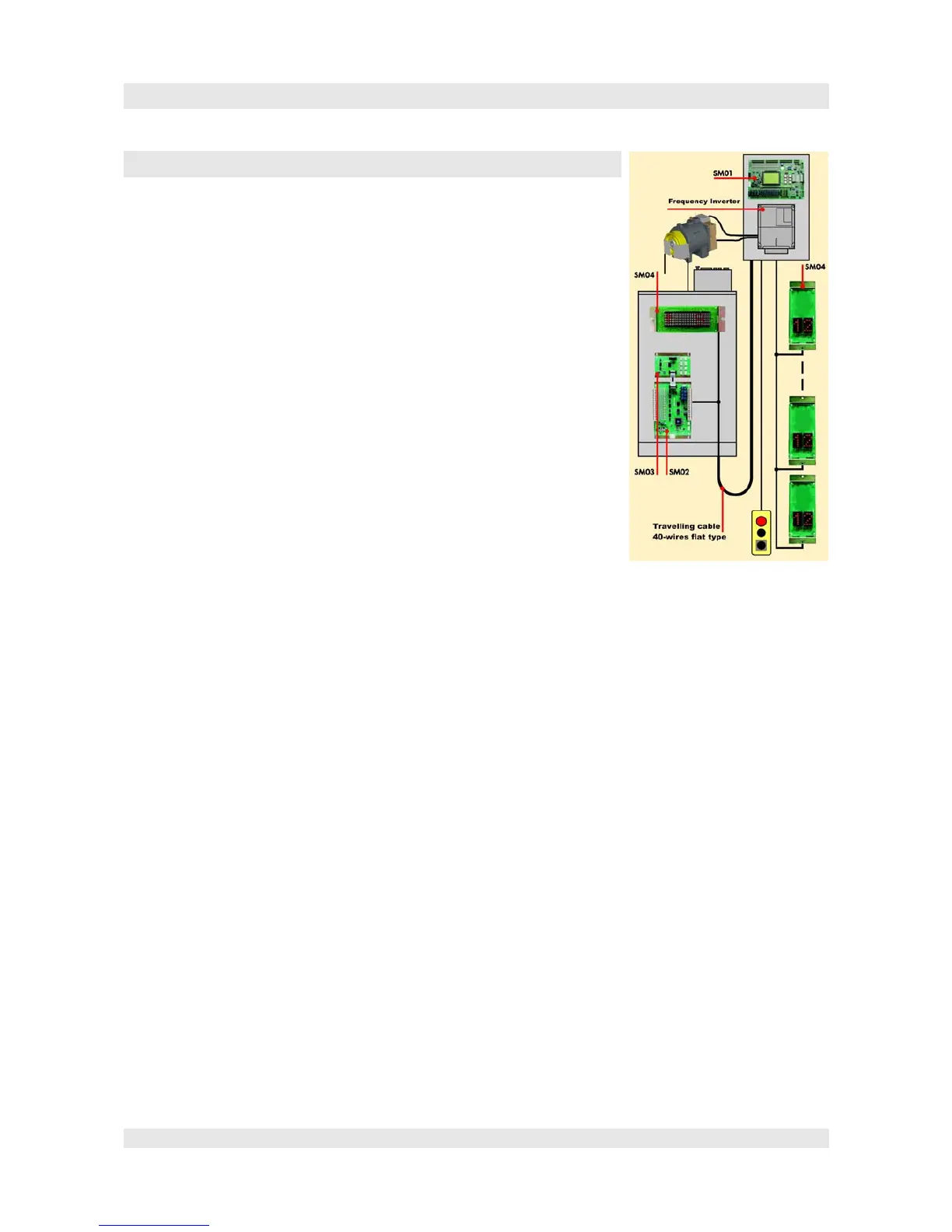

2.System overview
SmartCom is a modern, based on newest technology controller
system, especially for elevators.
The system basically composed of following components:
Main module SM01
Car module SM02
Command-module SM03
Floor module SM04
Expansion module SM09
Different variations of the serveral modules make the best and
optimized adjustment of the controller system possible for the
respective lift and the requested functionallity area.
Based on the never changing CAN-journal its possible to realize
controller for simple and complex lifts.
All components are, due to the CAN-systems, nearly in any order
possible to be combined, and after all possible to be extended.
Main module SM01
The main module is in the Controlcabinet and is the heart of the
controller. It contains all functions, especially trigging the handler,
recognitize the possition of the lift and lots of special features, which are normally directed to the
shaft and the engine room. It is communicating with the other modules via CAN-Bus.
Car module SM02
All functions, which are directed to the car, are done by the car module. It is linked via CAN with
the main module.
There are two possible options, the „classic“ with only one module SM02/03, and from now on the,
with 32bit Board F5021 established „spreaded“ option. In this case there are each a SM02/H in the
Inspection box and a SM02/G in the car operation panel (COP) used. Due to this, the till now
needed 36pin cable from the Inspection box to the COP, is reduced to a maximum of 12 pins. Now
the connection for up to 3 cabinet tableas (2
nd
door side, console panel via CAN is really easy.
Command-module SM03
This module is connected with the cabinet module. It is possible to connect 8 of these modules with
one SM02. One command module allocate 8 entrances for inside commands and 8 outputs for the
respective indication.
Floor module SM04
Modules of this kind of art can be used as well as floor display in the car or as floor module with
floor display and driving display at the floors. The addressing is really simple without any tools, by
settings via the floor push buttons or via the DIL-switches.
The SM04 is available in different forms: horizontal, vertikal and vertikal slim. The Displays are
different in their kind of art and coverage and it is also possible to be manufactered client-specific.
They are all communicating via CAN-Bus and can be teamed together nearly in any order.
Page 3
