LiftSmart MLC - Front Mast and Fork Carriage (2011-2012 Models)

Parts & Service Manual
Part Number M00969C
MLC Construction Pro Series
44
Copyright © 2022 LiftSmart

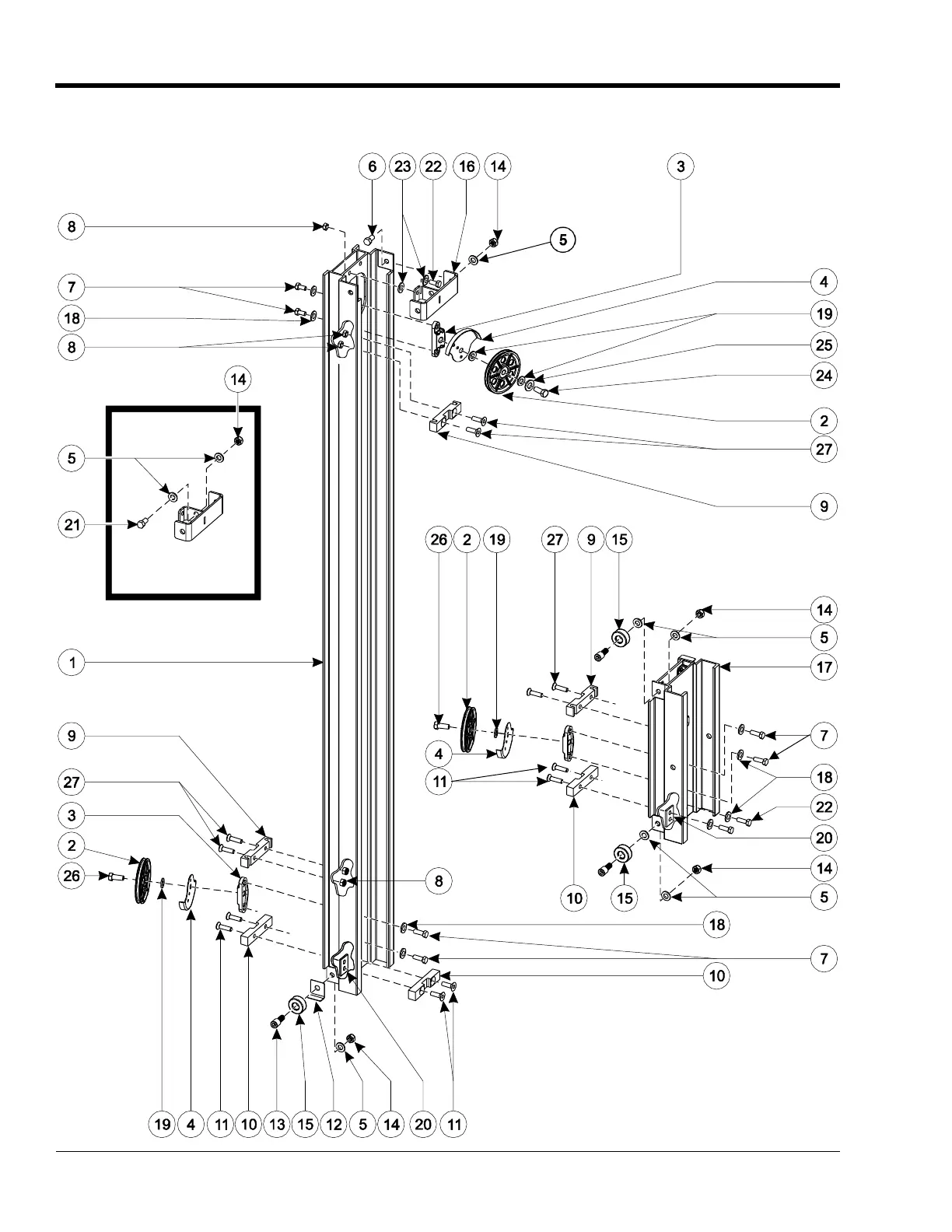

MAST ASSEMBLY (III) - FRONT MAST AND FORK CARRIAGE
2011 - 2012 MODELS
Note: Item 24 is a different length bolt compared to
all other pulley-mount bolts. Also, item 25 is only
used on this pulley mount and only this pulley has
item 19 on each side of the pulley bearing.
*
*
*
