8
1. Overview 2. Setup & Use
3. Optional
Accessories
4. Troubleshooting
5. Warranty, Safety
& Speciļ¬cations
1. TRANSMITTER CHARGING
JACKS: This connector is used
to connect the charging cable to
the optional LightMic transmitter
or the optional RMS handheld
microphone for daily battery
recharging.
2. EXTERNAL IR SENSOR JACK:
This jack is for testing purposes
only.
3. CHARGING LED: This LED glows
red when the 705iR battery is
charging and glows green when
fully charged.
4. DC POWER INPUT JACK: This
input connects to the 16 V AC/DC
adaptor that comes with the 705iR.
The adaptor is used to either
charge the internal battery pack or
power the 705iR with AC power.

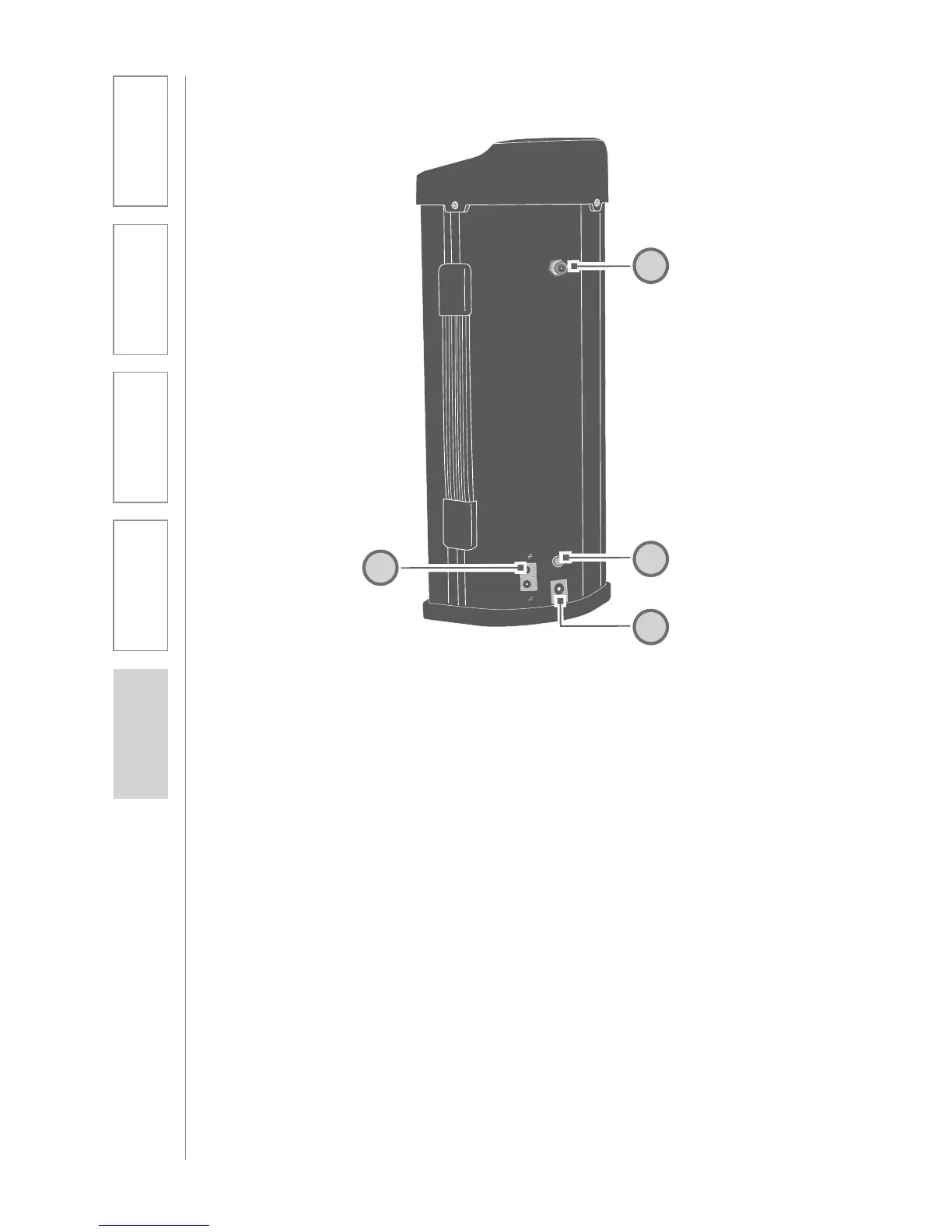

REAR PANEL CONTROLS
EXT SENSOR
www.Lightspeed-tek.com
800-732-8999
DC POWER
CHARGER OUT
1
2
3
4
