3. Move the Sliding Rod Cup and position it on the glass so that:
• The rod is parallel to the windshield top edge. See figure 8.
• The center of the rod is centered on the 7 inch mark. See figure 8.
• The Lil Buddy lable on the rod is just on the edge of the windshield. See figure 8.
December 2008 Attaching The Sliding Rod Cup | 9

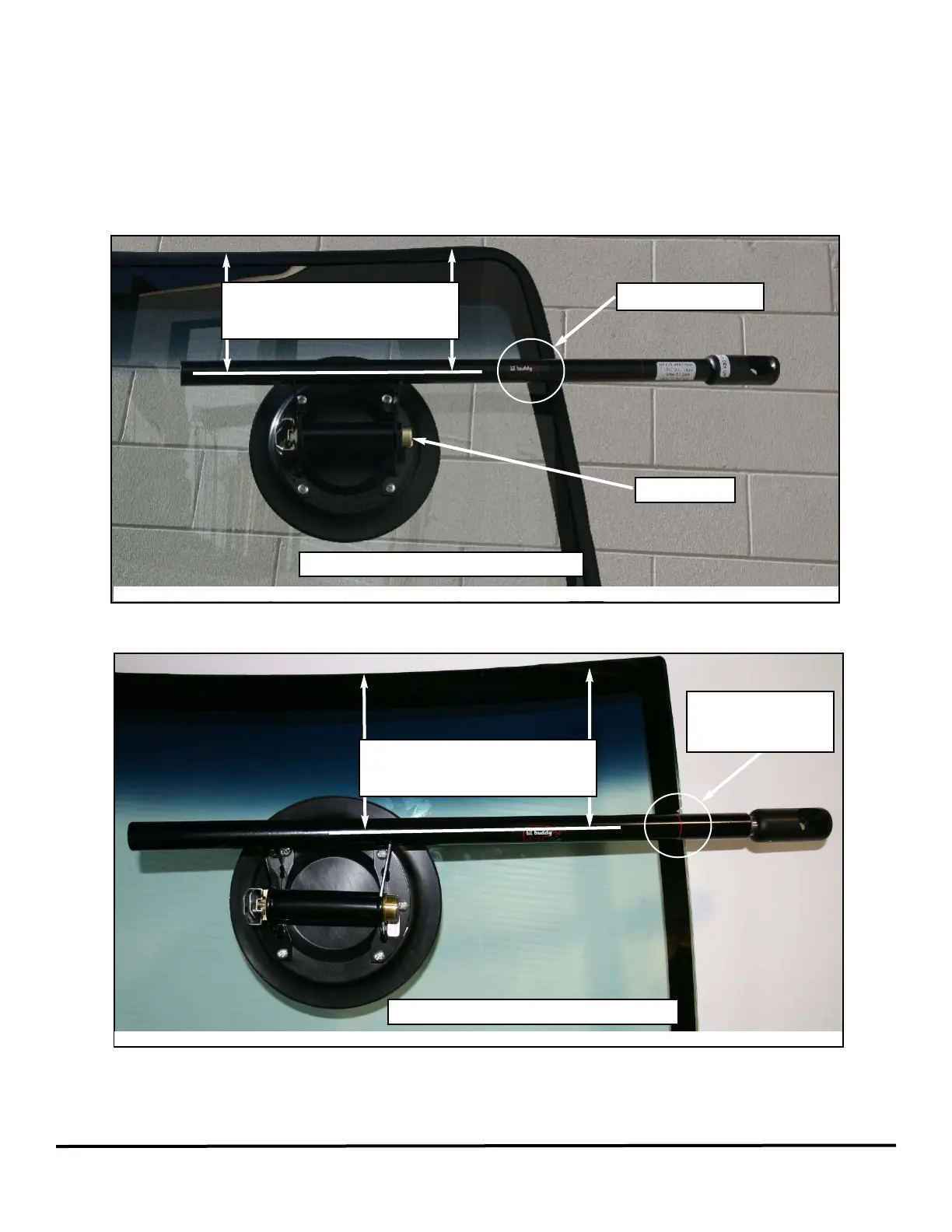

FIGURE 8 - SLIDING ROD CUP INSTALLATION
lil-BUDDY Sticker
7 inch measurement
to center of rod
Pump here
Correct Position - PRO1 Model Shown
Incorrect Position - PRO Model Shown
FIGURE 9 - SLIDING ROD CUP INCORRECT INSTALLATION
14 inch measurement
to center of rod
Red line on Sliding
Rod housing
