6 | Attaching The Base Pivot Cup Decemeber 2008
2. Move the Base Pivot Cup and position it on the side window so that:
• The Base Pivot Cup is parallel with the ground. Use the handle grip to visually
achieve this. See figure 3.
• The red dot on the Swing Arm is in line with the 9” mark on both windshield side
pillars. See figure 5.
3. Light pressure can be used on the cup to keep it in place on the door glass while it is
being positioned correctly.
4. When you are completely happy with the position, firmly fix the cup by doing the
following:
• Push the pump several times, rapidly.
As you do so the air between the cup
and the glass will be removed and
the amount of the button showing will
gradually reduce.
• Keep pushing the pump until you can
no longer see the red line.
5. Pull the pin locking the Swing Arm into place so it is ready for windshield installation.

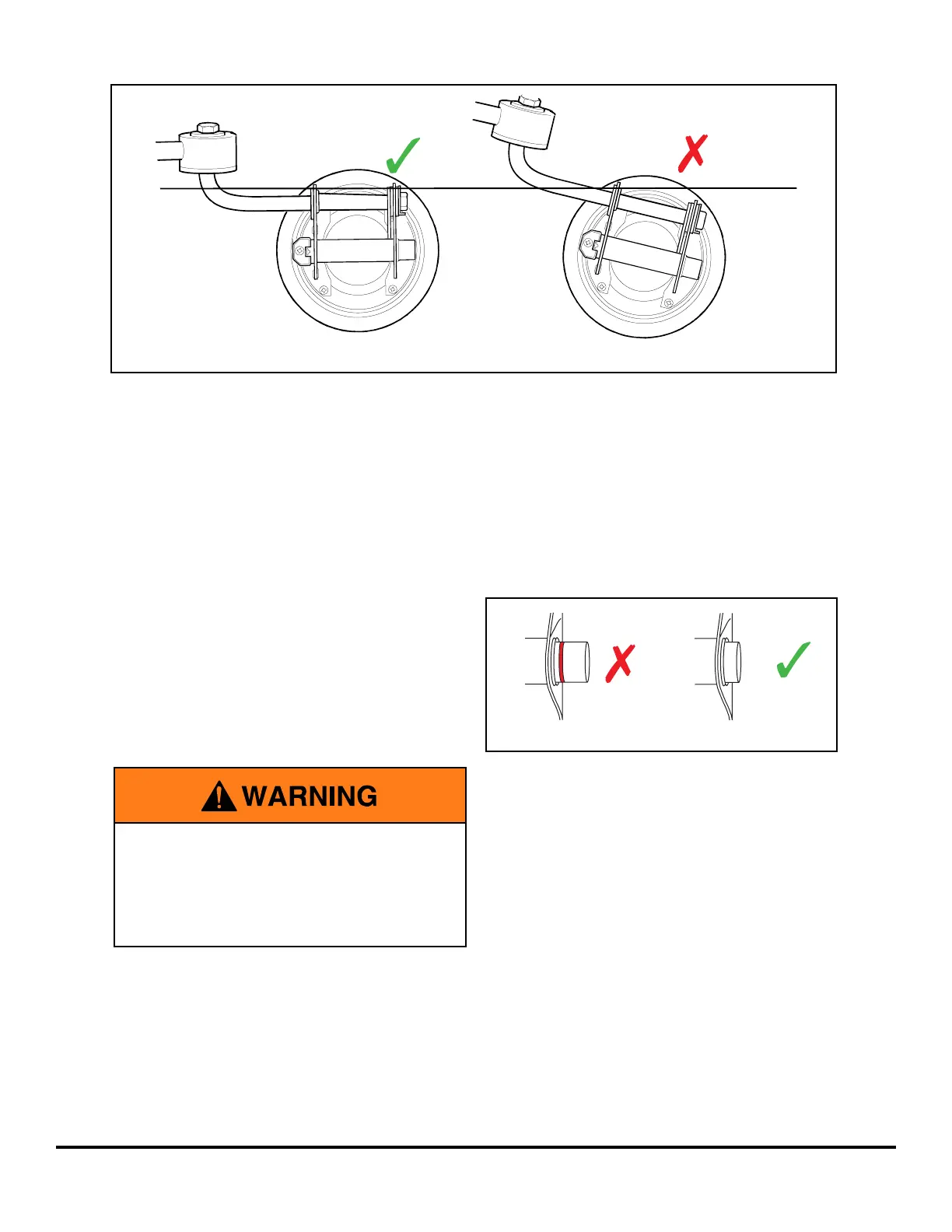

FIGURE 3 - BASE PIVOT CUP ANGLE
FIGURE 4 - PUMP CUP TO SECURE
After Base Pivot Cup has been secured to
the door glass, check placement to
ensure proper red dot location. If red dot
is not in-line with both windshield side
pillar markings, repeat steps 2 through 4.
