December 2008 Attaching The Base Pivot Cup | 7
9 inch measurement
mark on windshield side pillars.
Red dot on swing arm must be
in-line with 9” measurements on
both windshield side pillars.
9 inch measurement
on windshield side pillars.
Pump here
Base Pivot Cup should be
parallel with the ground.

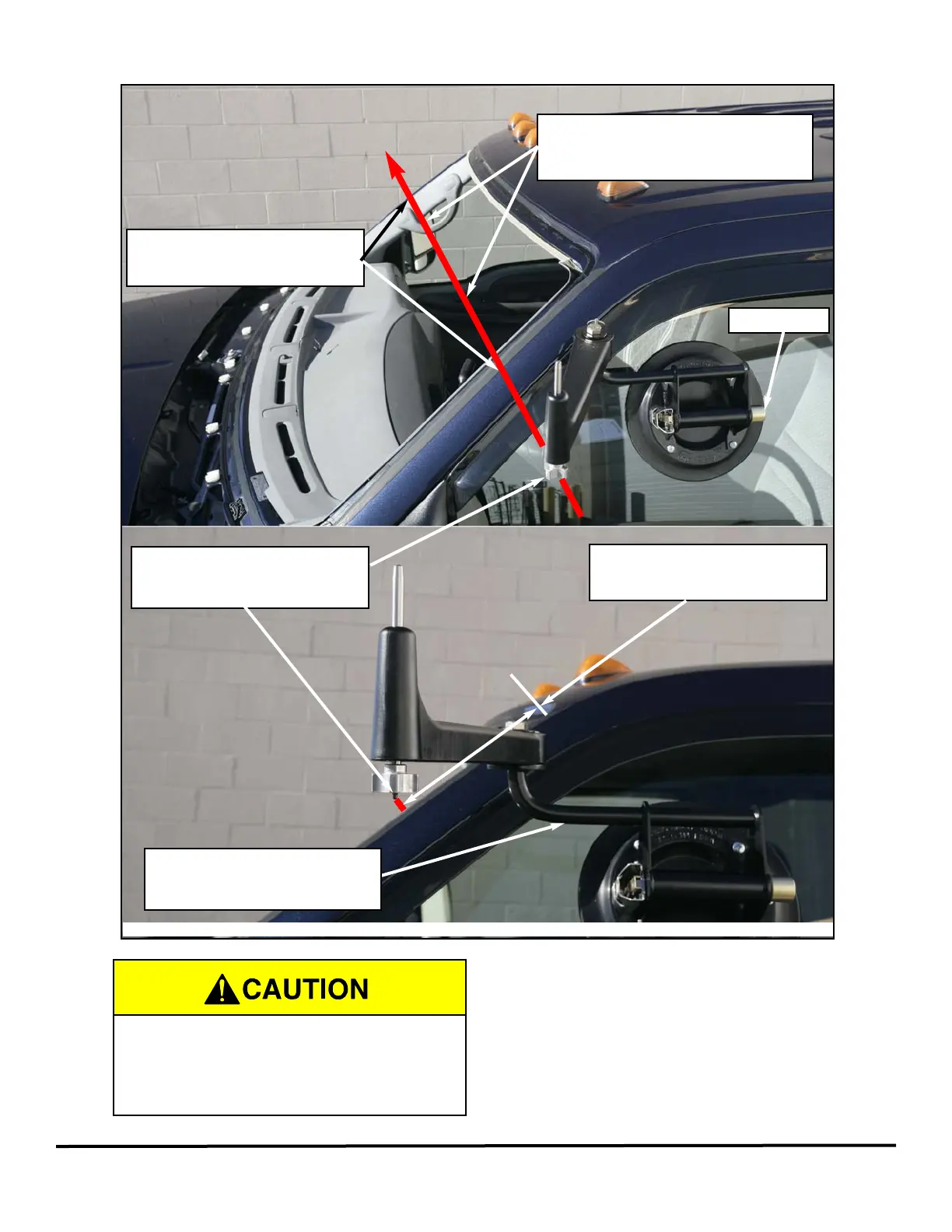

FIGURE 5 - BASE PIVOT INSTALLATION
Swing Arm location must be correct for
proper windshield placement. See
troubleshooting section for additional
information.
Eye sight line: Line up marks on both
windshield side pillars and the red dot
on Swing Arm.
