Operating Manual L 2000
Edition: 01.03.2016
201.253.
905.000

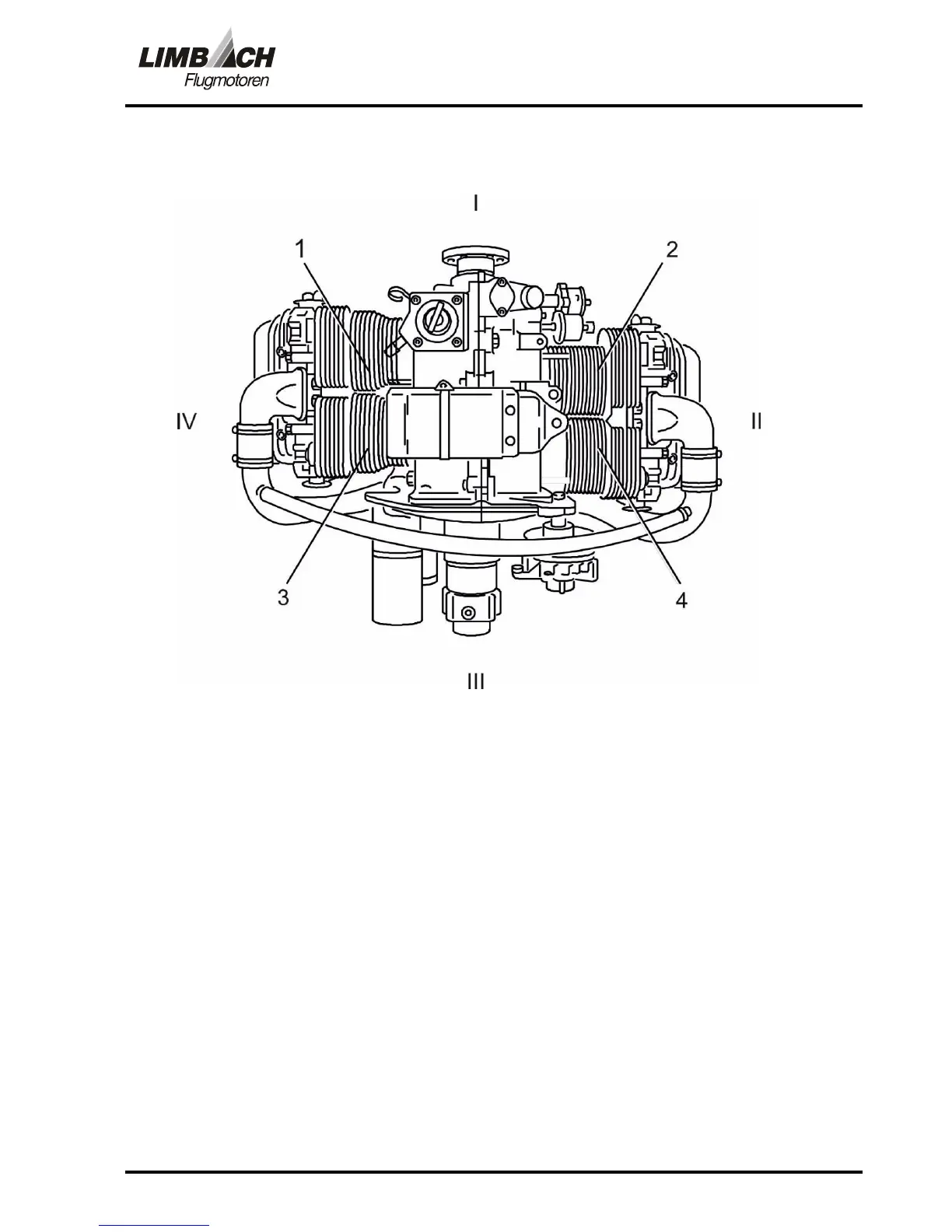

3.2 Cylinder Designation
I
=
front = propeller side
II
=
right
III
=
rear = accessory mounting side
IV
=
left
1
=
cylinder 1
2
=
cylinder 2
3
=
cylinder 3
4
=
cylinder 4
